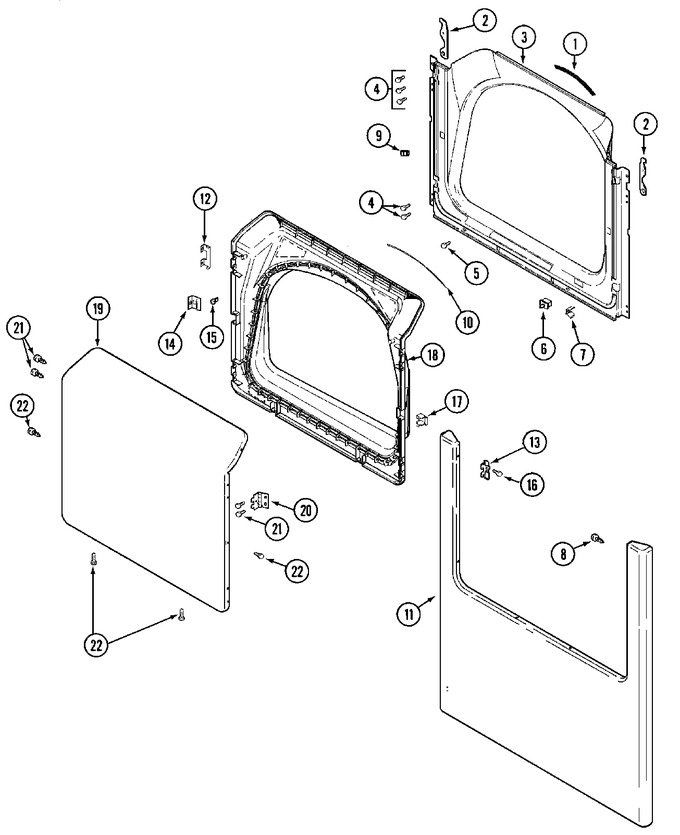

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	33001767		Seal, Shroud	10			$ 25.05
002	22002247		Hook, Security	10	Appelez-nous	-
003	33001778		Shroud (wht)	10	Appelez-nous	-
004	W11573574		Screw, Tumbler Front & Shroud   (Replaces: 22001995)	10		Immediately	$ 12.62
005	33001768		Screw, Shroud & Outlet Duct	10	Appelez-nous	-
006	W10169313		Switch, Door   (Replaces: 33001509)	10		Immediately	$ 29.18
007	33001760		Bracket, Hinge	10	Appelez-nous	-
008	22002243		Screw, Hinge Bracket	10	Appelez-nous	-
008	22002244		Clip, Grounding	10	Appelez-nous	-
009	LA-1003		Catch, Door (female)   (Replaces: Y304578)	10		Immediately	$ 24.51
010	WP33002094		Seal, Door   (Replaces: 33002094)	10		Immediately	$ 113.69
011	213280		Fastener, Front Panel	10	Appelez-nous	-
011	22002836		Panel, Front (wht)	10			$ 448.33
012	22002038		Clip, Door (double)	10	Appelez-nous	-
013	33001764		Cover, Hinge Hole (wht)	10			$ 36.41
014	WP33001793		Bracket, Strike   (Replaces: 33001793)	10			$ 7.43
015	33001761		Strike, Door (male)	10			$ 5.84
016	WP33001787		Screw, Hinge Hole Cover   (Replaces: 33001846)	10			$ 10.45
017	33001763		Plug, Inner Door	10			$ 6.90
018	22002039		Clip, Door (single)	10			$ 8.15
018	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
018	WP33002544		Door, Inner W/seal (wht)   (Replaces: 33002544)	10			$ 214.32
019	22003785		Door, Outer (wht)	10			$ 99.17
020	WP33001759		Hinge, Door   (Replaces: 33001759)	10			$ 69.86
021	WP98006631		Screw, Hinge   (Replaces: 22002062)	10			$ 6.26
022	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
