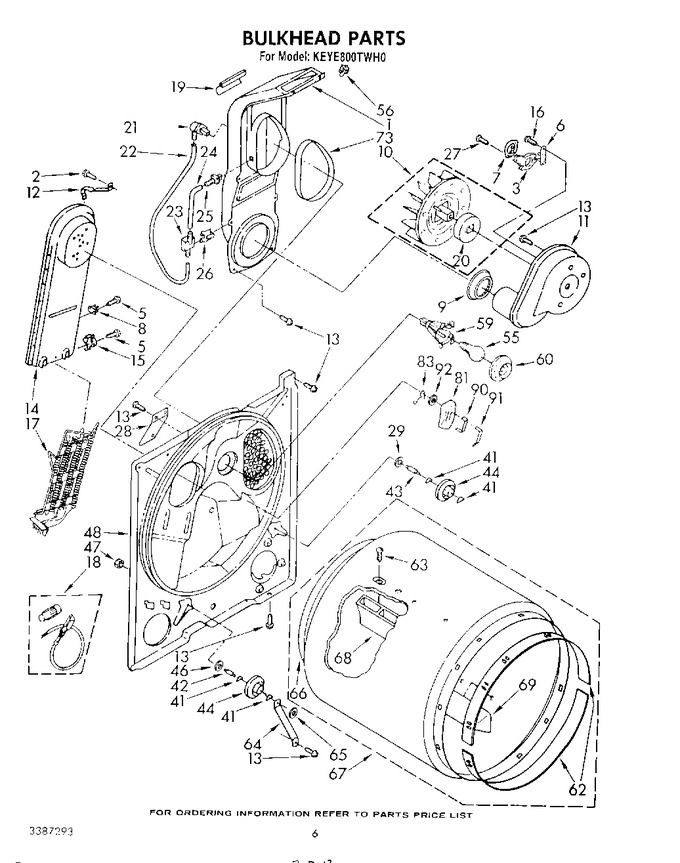

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 349242 | Lint Chute Assembly |
|
- | |||||
| 2 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 687128) |
|
Immediately | $ 7.07 | ||||
| 3 | 61894 | Heater, Thermostat |
|
$ 37.38 | |||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 6 | WP3392519 | Thermal Fuse (Replaces: 694511) |
|
Immediately | $ 22.46 | ||||
| 7 | AT022 | Thermostat, 150~f (65.5~c) (Replaces: 660039) |
|
Immediately | $ 31.65 | ||||
| 8 | 279769 | Thermal Cutoff (Replaces: 3389946) |
|
Immediately | $ 56.57 | ||||
| 9 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 20.06 | |||||
| 10 | WP694089 | Wheel, Blower (Replaces: 695499) |
|
Immediately | $ 33.89 | ||||
| 11 | 695081 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 337272) |
|
$ 12.90 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 14 | 695547 | Box, Heater |
|
- | |||||
| 15 | LS2-225 | Thermostat, 225~f (107.2~c) (Replaces: 347296) |
|
Immediately | $ 12.18 | ||||
| 16 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 695239) |
|
Immediately | $ 9.65 | ||||
| 17 | WP697663 | Heater Element (Replaces: 697663) |
|
$ 262.22 | |||||
| 18 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 19 | 686770 | Support Protector |
|
- | |||||
| 20 | 694630 | Seal, Blower |
|
- | |||||
| 21 | 4338643CP | Tap, Downstream (Replaces: 339625) |
|
- | |||||
| 22 | 339893 | Tubing Downstream |
|
- | |||||
| 23 | 696371 | Sensor, Pressure |
|
- | |||||
| 24 | 339892 | Tubing Upstream |
|
- | |||||
| 25 | 339624 | Tap Upstream |
|
- | |||||
| 26 | 339745 | Clip, Switch |
|
- | |||||
| 27 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.01 | ||||
| 28 | 690262 | Shield, Light |
|
- | |||||
| 29 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 6.72 | |||||
| 41 | WPW10512946 | Tri Ring (4) (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 347364) |
|
Immediately | $ 65.44 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 339489) |
|
Immediately | $ 42.57 | ||||
| 44 | WPW10314173 | Support, Roller (Replaces: 3388342) |
|
Immediately | $ 25.65 | ||||
| 46 | WP348197 | Washer, Support (Replaces: 348197) |
|
$ 6.47 | |||||
| 47 | 120377 | Nut, 3/8-16 |
|
- | |||||
| 48 | 685821 | Bulkhead |
|
- | |||||
| 55 | 8009 | Bulb (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 56 | 98460 | Nut, Push-in (2) |
|
$ 12.07 | |||||
| 59 | 691034 | Socket Assembly |
|
- | |||||
| 60 | 341165 | Lens, Drum Light |
|
- | |||||
| 62 | 279441 | Ring, Bearing (Replaces: 692526) |
|
Immediately | $ 59.60 | ||||
| 63 | 690372 | Screw, 11-16 X 7/8 |
|
- | |||||
| 64 | W11684613 | Bracket, Shaft (Replaces: 348944) |
|
$ 18.85 | |||||
| 65 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.07 | |||||
| 66 | 279408 | Seal, Rear (Replaces: 347885) |
|
$ 66.22 | |||||
| 67 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 321.89 | |||||
| 68 | WP692490 | Baffle, Drum (long) (2) (Replaces: 692490) |
|
$ 143.34 | |||||
| 69 | WP3403636 | Baffle, Drum (short) (1) (Replaces: 692491) |
|
$ 124.79 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 7.77 | ||||
| 81 | 279366 | Pad, Sensor (Replaces: 348861) |
|
$ 86.27 | |||||
| 83 | WP342267 | Clip, Sensor (2) (Replaces: 342267) |
|
$ 6.98 | |||||
| 90 | WP348859 | Electrode, Inside (Replaces: 348859) |
|
$ 7.18 | |||||
| 91 | WP348860 | Electrode, Outside (Replaces: 348860) |
|
$ 7.25 | |||||
| 92 | WP298877 | Washer, Insulating (Replaces: 298877) |
|
$ 20.32 |
