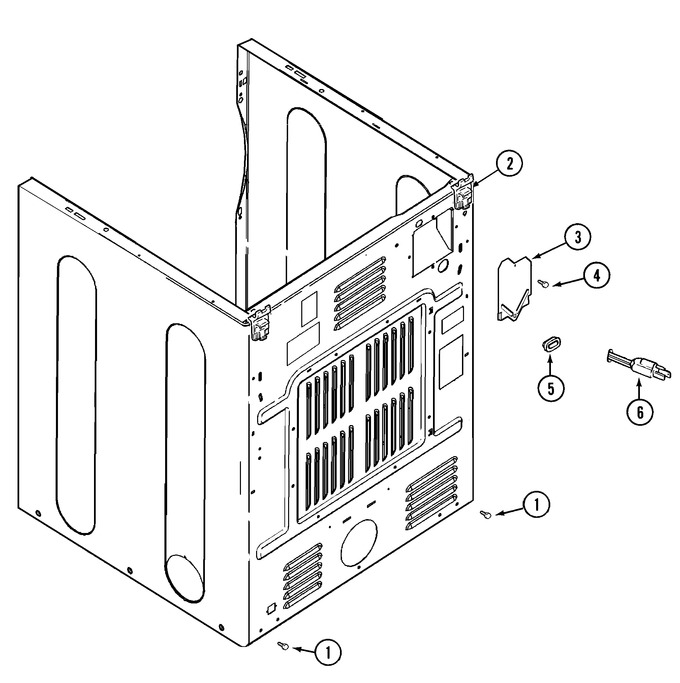

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	W11573574		Screw, Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
002	W11573574		Screw, Hinge   (Replaces: 22001995)	10		Immediately	$ 12.62
002	22004095		Hinge, Plastic	10			$ 20.04
003	33001795		Cover, Terminal Block	10	Appelez-nous	-
004	W11573574		Screw, Terminal Block Cover   (Replaces: 22001995)	10		Immediately	$ 12.62
005	211881		Grommet, Cord	10	Appelez-nous	-
005	33002157		Grommet	10	Appelez-nous	-
006	WP22003062		Cord, Power (as Wrapped)   (Replaces: 22003062)	10			$ 121.96

    View Diagram in Separate Window       Print Part List
