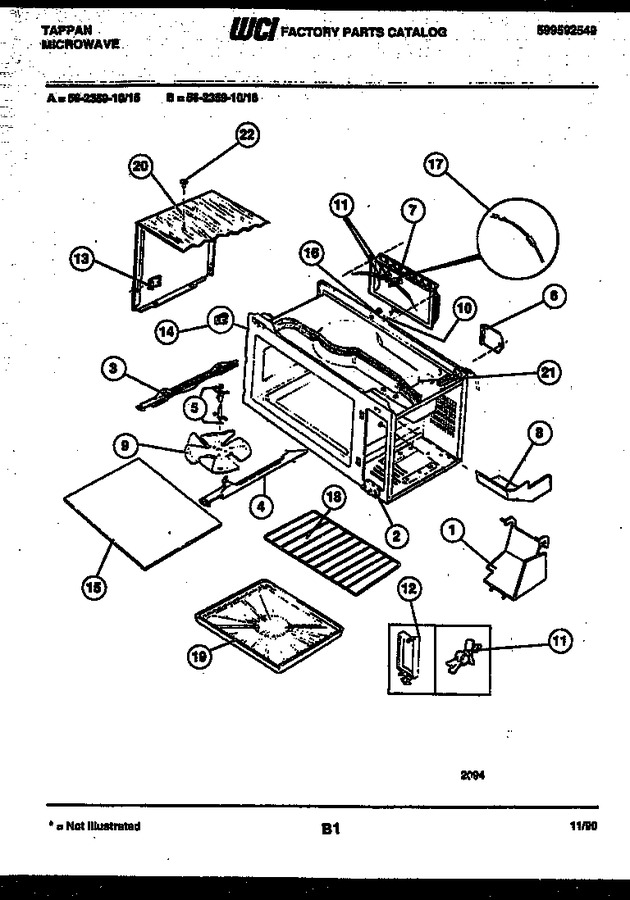

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212766 | Baffle, Air |
|
- | |||||
| 2 | 5303011555 | Bracket-control Panel Support |
|
- | |||||
| 3 | 5303212771 | Channel-stir Glass Supt. Lh |
|
- | |||||
| 4 | 5303212772 | Channel-stir Glass Supt. Rh |
|
- | |||||
| 5 | 5303922010 | Collar-stirrer-(includes Support, Collar And Washer) |
|
- | |||||
| 6 | 5303212775 | Cover-light |
|
- | |||||
| 7 | 5303212780 | Duct-air-exhaust |
|
- | |||||
| 8 | 5303212784 | Duct-air-cavity |
|
- | |||||
| 9 | 5303202397 | Fan-stirrer |
|
- | |||||
| 10 | 5303091555 | Plug Button |
|
- | |||||
| 11 | 5303212788 | Support-thermal Protector (2) |
|
- | |||||
| 12 | 5308037677 | Clip, Wires, (3) |
|
- | |||||
| 13 | 5303012322 | Clip, Wrapper, (2) |
|
- | |||||
| 14 | 3203010 | Clip, Hinge, (3) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 15 | 5303212794 | Cover-glass Stirrer |
|
- | |||||
| 16 | 5303212795 | Grommet, Split |
|
- | |||||
| 17 | 5303212800 | Harness-fire Protector |
|
- | |||||
| 18 | 5303205548 | Rack-oven |
|
- | |||||
| 19 | 5303091188 | Tray-oven |
|
- | |||||
| 20 | 5303212812 | Wrapper-wood Grain |
|
- | |||||
| 21 | 5303212803 | Nut, Fan Duct |
|
$ 2.10 | |||||
| 22 | 5303015230 | Plug-button Wood Grain (2) |
|
- | |||||
| *39262 | 5303269631 | Hang Kit |
|
- | |||||
| *39262 | 5303203124 | Paint-white Touch Up |
|
- | |||||
| *39262 | 5303269846 | Rivet-back Of Fan Duct |
|
- | |||||
| 21A | 5303212809 | Shield-oven Light-mylar (non-illustrated) |
|
- | |||||
| 21B | 5303091100 | Screw-wrapper (19) (non-illustrated) |
|
- |
