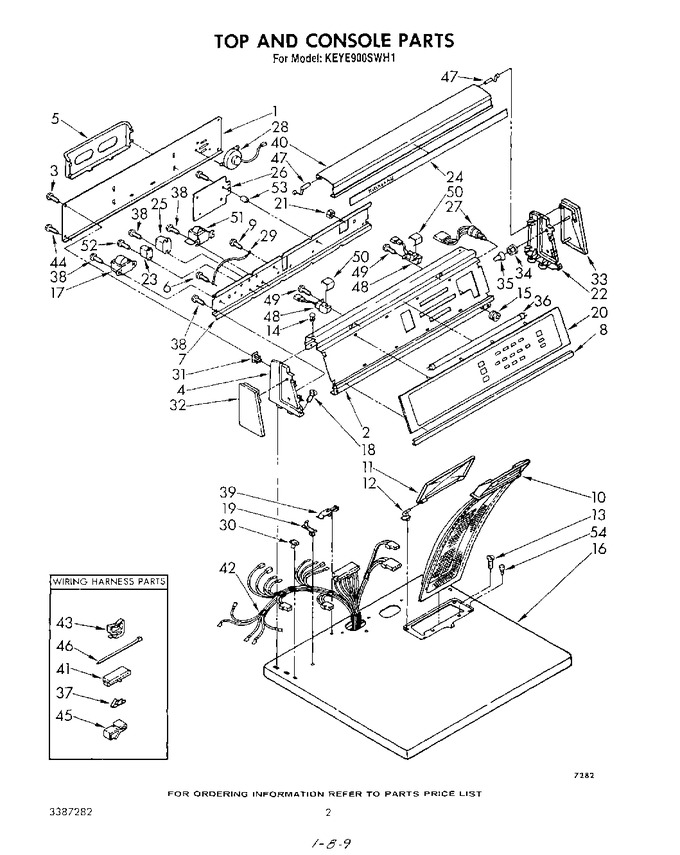

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 696198 | Panel, Rear Console |
|
- | |||||
| 2 | 3387211 | Panel, Control |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.47 | ||||
| 4 | 388503 | End Cap (l.h.) |
|
- | |||||
| 5 | 63020 | Rack, Literature |
|
$ 30.32 | |||||
| 6 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 7 | 697727 | Bracket, Control |
|
- | |||||
| 8 | 3347053 | Trim, Console |
|
- | |||||
| 9 | WP3390631 | Screw, Ground (Replaces: 339554) |
|
$ 7.04 | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 693845) |
|
Immediately | $ 33.49 | ||||
| 11 | 691205 | Cover, Lint Screen |
|
- | |||||
| 12 | WPW10044480 | Hinge, Cover (l.h.) (Replaces: 691194) |
|
$ 6.95 | |||||
| 12 | WPW10044470 | Hinge, Cover (r.h.) (Replaces: 691193) |
|
$ 6.95 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 12.65 | ||||
| 14 | 387887 | Plug, Latch (3) |
|
- | |||||
| 15 | 3347687 | Nut, Knurled |
|
- | |||||
| 16 | 697684 | Top (platinum) |
|
- | |||||
| 16 | 697680 | Top (white) |
|
- | |||||
| 16 | 697681 | Top (almond) |
|
- | |||||
| 16 | 697682 | Top (harvest Wheat) |
|
- | |||||
| 16 | 697683 | Top (toast) |
|
- | |||||
| 17 | 60996 | Transformer |
|
- | |||||
| 18 | WP388326 | Screw, 8-18 (2) (Replaces: 64211) |
|
$ 7.30 | |||||
| 19 | 358473 | Stop, Push-in (2) |
|
$ 5.84 | |||||
| 20 | 772562 | Module, Touch |
|
- | |||||
| 21 | 3347181 | Nut, Self Thread |
|
- | |||||
| 22 | 388504 | Cap, End (r.h.) |
|
- | |||||
| 23 | 696819 | Motor Relay |
|
- | |||||
| 24 | 3388189 | Insert, Lamp Cover |
|
- | |||||
| 25 | 696300 | Power Relay |
|
- | |||||
| 26 | 3407034 | Microcomputer Assembly |
|
- | |||||
| 27 | 3347115 | Switch, Fluorescent |
|
- | |||||
| 28 | 387973 | Speaker & Housing |
|
- | |||||
| 29 | 690853 | Wire, Ground |
|
- | |||||
| 30 | 358472 | Nut, Push-in (2) |
|
- | |||||
| 31 | 689559 | Clip, Push-on (4) |
|
- | |||||
| 32 | 388745 | Trim, End Cap (l.h.) |
|
- | |||||
| 33 | 388746 | Trim, End Cap (r.h.) |
|
- | |||||
| 34 | 388744 | Nut, No.10 Thread |
|
- | |||||
| 35 | 3348103 | Cap, Insulator |
|
- | |||||
| 36 | 387693 | Lamp, Fluorescent |
|
- | |||||
| 37 | 60279 | Terminal |
|
- | |||||
| 38 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 39 | 357144 | Clip, Wire (tech Sheet/top) |
|
- | |||||
| 40 | 3387152 | Cover, Light (includes No.24) |
|
- | |||||
| 41 | 60278 | Connector |
|
$ 231.17 | |||||
| 42 | 3388257 | Harness, Electric |
|
- | |||||
| 43 | 688412 | Clip, Harness (rear Bulkhead Area) |
|
- | |||||
| 44 | WP489069 | Screw, Hex Washer Head (Replaces: 693994) |
|
Immediately | $ 7.07 | ||||
| 45 | 689180 | Clip, Harness Retainer (door Switch Wires) |
|
- | |||||
| 46 | WPW10339879 | Tie, Wire (console Harness Area) (Replaces: 685963) |
|
$ 7.11 | |||||
| 47 | 3347112 | Hinge, Lamp Cover |
|
- | |||||
| 48 | 389226 | Socket, Lamp ((l.h.)) |
|
- | |||||
| 48 | 389217 | Socket, Lamp ((r.h.)) |
|
- | |||||
| 49 | WP965173 | Screw, 8-18 X 5/16 (Replaces: 271096) |
|
Immediately | $ 9.65 | ||||
| 50 | 3348529 | Cover, Socket |
|
- | |||||
| 51 | 387700 | Ballast |
|
- | |||||
| 52 | 98831 | Screw Mounting |
|
- | |||||
| 53 | 313087 | Support, Board |
|
- | |||||
| 54 | 297535 | Bumper, Lint Lid |
|
- | |||||
| LIT3387261 | Instructions, Installation |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| LIT3387282 | List, Service Parts |
|
- | ||||||
| LIT3388652 | Label, Operating Instructions |
|
- | ||||||
| LIT3387322 | Use & Care Guide |
|
- | ||||||
| LIT3387320 | Guide, Dryer |
|
- | ||||||
| LIT3387421 | Tech Sheet (service Information) |
|
- | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 285365 | Toast |
|
- | ||||||
| 261890 | Harvest Wheat |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| 285368 | Platinum (uncut) |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 261891 | Harvest Wheat (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| LIT3388259 | Wiring Diagram |
|
- |
