SELECT A DIAGRAM

01 - Front


02 - Rear

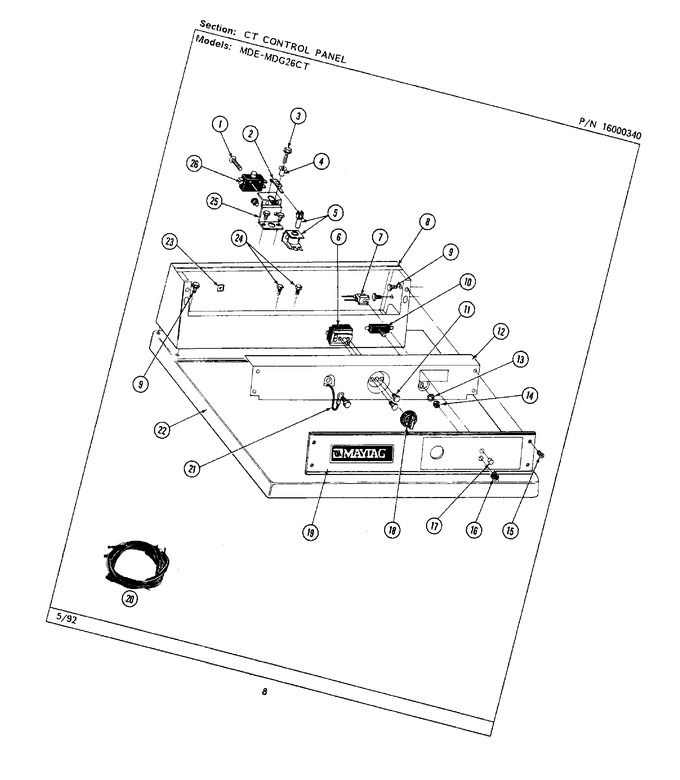

03 - Ct Control Panel


04 - Ct Control Center


05 - Ct Control Center Components


06 - Front Panel


07 - Tumbler


08 - Gas Valve


09 - Motor Drive, Blower & Base Frame


10 - Thermostats


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	212950		Screw, Relay Switch (brkt)	A0			$ 46.94
002	NLA		Spring Lever, Relay	A0	Appelez-nous	-
003	212949		Screw	A0	Appelez-nous	-
004	NLA		Spacer, Advance Relay	A0	Appelez-nous	-
005	212951		Screw, No.6-32 X 1/4 Inch	A0	Appelez-nous	-
005	305393		Solenoid, Relay Assembly	A0	Appelez-nous	-
006	WPW10327105		Switch, Cycle Selector   (Replaces: 307237)	A0			$ 145.49
007	NLA		Pilot Light	A0	Appelez-nous	-
008	NLA		Control Cover (wht)	A0	Appelez-nous	-
009	WP90767		Screw   (Replaces: 212276)	A0		Immediately	$ 7.04
010	WPW10149462		Switch, Push-to-start   (Replaces: 306941)	A0			$ 60.77
011	WP488234		Screw   (Replaces: Y313588)	A0			$ 6.07
012	314912		Back-up Plate (wht)	A0	Appelez-nous	-
012	NLA		(alm)	A0	Appelez-nous	-
013	WPW10139799		Lock Washer   (Replaces: 312751)	A0			$ 8.32
014	Y312706		Hex Nut, Switch	A0	Appelez-nous	-
015	WP1163283		Screw, No.8 X 1/2 Inch   (Replaces: 212277)	A0			$ 6.47
016	Y312702		Knurled Nut	A0			$ 18.18
017	WP215564		Lens, Indicator (amber)   (Replaces: 215564)	A0		Immediately	$ 7.14
018	306938		Knob, Selector Switch	A0	Appelez-nous	-
019	NLA		Control Panel	A0	Appelez-nous	-
020	NLA		Wire Harness	A0	Appelez-nous	-
021	205810		Wire, Ground	A0	Appelez-nous	-
021	WP489399		Screw   (Replaces: 211252)	A0			$ 6.26
022	307105		Top Cover Assy. (wht)	A0	Appelez-nous	-
022	NLA		(alm)	A0	Appelez-nous	-
023	215003		Fastener	A0	Appelez-nous	-
024	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
024	Y314322		Screw, No.8-32 X 3/8 Inch	A0	Appelez-nous	-
025	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
025	NLA		Relay Bracket	A0	Appelez-nous	-
026	Y303787		Switch For Relay	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
