SELECT A DIAGRAM

01 - Control Panel


02 - Control Center


03 - Cabinet-front


04 - Cabinet-rear


05 - Door


06 - Tumbler


07 - Motor Drive


08 - Motor Drive-thermostats


09 - Gas Valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	306184		Plug, Blocking (lpg Regulator)		Appelez-nous	-
002	Y308378		Conversion Kit (nat To Lp)		Appelez-nous	-
003	WP694424		Leak Limiter (lpg)   (Replaces: 314602)				$ 31.11
004	Y308377		Conversion Kit (lp To Nat.)		Appelez-nous	-
005	58804A		Coil, Holding & Booster--w   (Replaces: 306106)			Immediately	$ 28.02
006	279834		Coil, Secondary--w   (Replaces: 306105)			Immediately	$ 29.57
007	304971		Screw, Igniter		Appelez-nous	-
008	4391996		Igniter Assy, Gas Valve   (Replaces: 304970)			Immediately	$ 42.36
009	WP33002793		Burner Assy.   (Replaces: Y308457)				$ 161.35
010	Y310632		Screw, Burner Assy.		Appelez-nous	-
011	WP308345		Valve, Gas   (Replaces: 308345)				$ 313.92
012	Y313561		Screw, Gas Valve Bracket				$ 5.27
013	314566		Bracket, Gas Valve		Appelez-nous	-
014	WP90767		Screw, Gas Valve   (Replaces: 314082)			Immediately	$ 7.04
015	WP90767		Screw, Gas Valve   (Replaces: Y313559)			Immediately	$ 7.04
016	Y303349		Shut-off, Gas Valve		Appelez-nous	-
017	Y303383		Pipe & Bracket Assy.		Appelez-nous	-
018	WP90767		Screw, Therm./duct/comb. Cone   (Replaces: 211294)			Immediately	$ 7.04
019	307119		Inlet Duct Assy.		Appelez-nous	-
020	WP305169		Thermostat, Hi-limit Gas   (Replaces: 305169)				$ 117.03
021	WP338906		Sensor, Radiant   (Replaces: Y303377)			Immediately	$ 46.72
022	Y303368		Cone, Combustion		Appelez-nous	-
022	Y308548		Cone, Combustion	A5	Appelez-nous	-
023	Y303841		Cone, Extension (combust.)		Appelez-nous	-
024	Y312890		Retainer, Heater Chamber		Appelez-nous	-

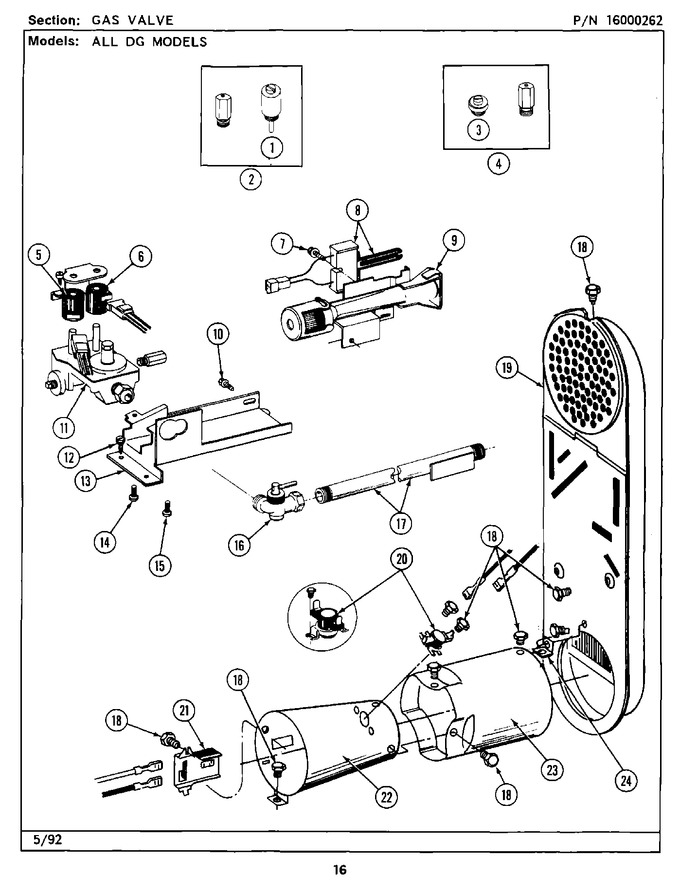

    View Diagram in Separate Window       Print Part List
