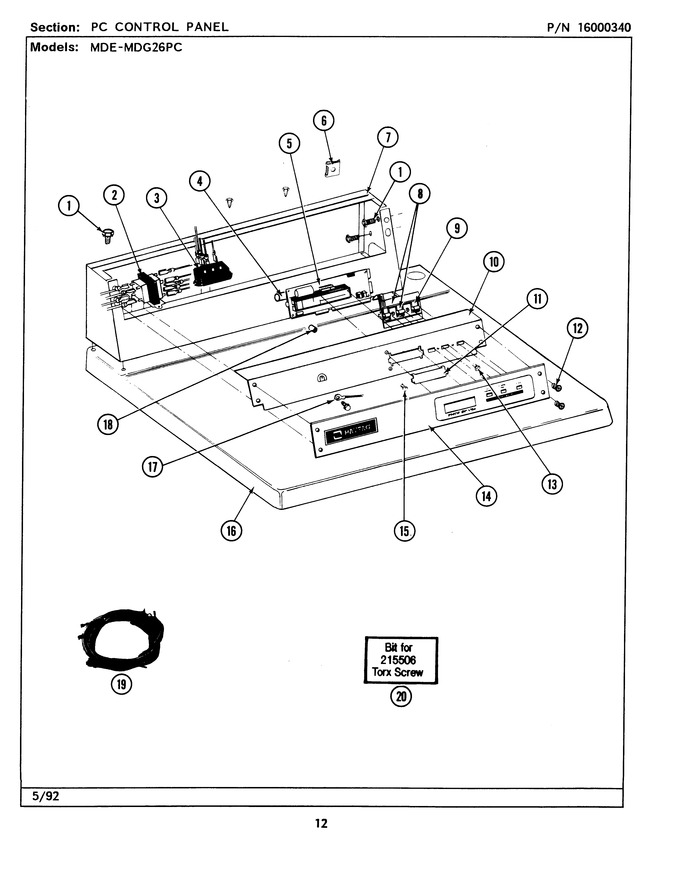

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP90767		Screw   (Replaces: 212276)	A0		Immediately	$ 7.04
002	207766		Transformer	A0	Appelez-nous	-
002	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
003	206824		Relay, Motor	A0	Appelez-nous	-
003	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
004	206828		Battery	A0	Appelez-nous	-
005	215510		Support, Pc Board	A0	Appelez-nous	-
005	NLA		Circuit Board Assy	A0	Appelez-nous	-
006	215003		Fastener	A0	Appelez-nous	-
007	WP90767		Screw   (Replaces: 212276)	A0		Immediately	$ 7.04
007	NLA		Control Cover (wht)	A0	Appelez-nous	-
008	306694		Backup Plate With Switch	A0			$ 73.51
009	WPW10424308		Pushbutton   (Replaces: 215517)	A0		Immediately	$ 18.38
010	NLA		Back Up Plate (wht)	A0	Appelez-nous	-
011	215515		Display Cover	A0	Appelez-nous	-
012	WPW10131119		Screw, Torx   (Replaces: 215506)	A0			$ 6.26
013	W10756178		Screw   (Replaces: 215527)	A0			$ 5.39
014	NLA		Control Panel	A0	Appelez-nous	-
015	215526		Screw	A0	Appelez-nous	-
016	307105		Top Cover Assy. (wht)	A0	Appelez-nous	-
016	NLA		(alm)	A0	Appelez-nous	-
017	205810		Wire, Ground	A0	Appelez-nous	-
017	WP489399		Screw   (Replaces: 211252)	A0			$ 6.26
018	Y215513		Spacer Circuit Board	A0	Appelez-nous	-
019	308368		Wire Harness	A2	Appelez-nous	-
019	NLA		Wire Harness	A0	Appelez-nous	-
019	Y308513		Harness, Wire	A5	Appelez-nous	-
020	Y038227		Torx Bit (tx20h)	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
