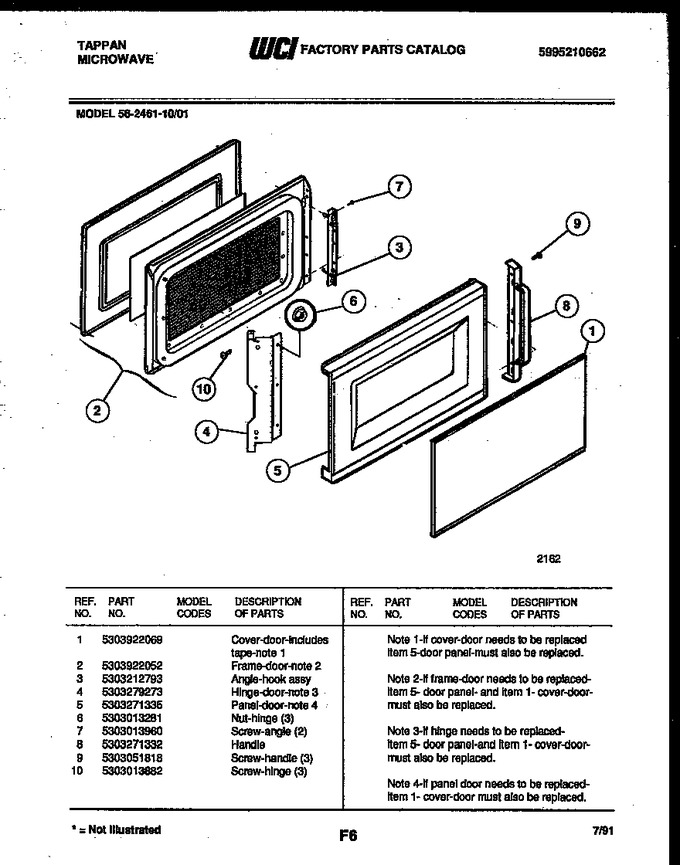

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303922069 | Cover-door-includes Tape (if Cover-door Needs To Be Repl |
|
- | |||||
| 2 | 5303922052 | Frame-door (if Frame-door Needs To Be Replaced-item 5- D |
|
- | |||||
| 3 | 5303212793 | Angle-hook Assy |
|
- | |||||
| 4 | 5303279273 | Hinge-door (if Hinge Needs To Be Replaced-item 5- Door P |
|
- | |||||
| 5 | 5303271335 | Panel-door (if Panel Door Needs To Be Replaced-item 1 - |
|
- | |||||
| 6 | 5303013281 | Nut-hinge (3) |
|
- | |||||
| 7 | 5303013960 | Screw-angle (2) |
|
- | |||||
| 8 | 5303271332 | Handle |
|
- | |||||
| 9 | 5303051818 | Screw-handle (3) |
|
- | |||||
| 10 | 5303013882 | Screw-hinge (3) |
|
- |
