Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 205663 Knob AO Appelez-nous -
002 WPW10139799 Lock Washer   (Replaces: 312751) AO Special Order $ 8.32

003 WPW10149462 Switch, Push-to-start   (Replaces: 306940) AO Special Order $ 60.77

004 307253 Switch, Cycle Selector AO Appelez-nous -
004 WP488234 Screw   (Replaces: Y313588) AO Special Order $ 6.07

005 WP90767 Screw, Bracket To Vault Assy.   (Replaces: 212276) AO In-Stock Immediately $ 7.04

005 Y314261 Switch & Relay Bracket AO Appelez-nous -
006 NLA Insulator AO Appelez-nous -
007 Y312706 Hex Nut AO Appelez-nous -
008 Y312702 Knurled Nut AO Special Order $ 18.18

009 303963 Indicator Light AO Appelez-nous -
010 NLA Maytag Coin Slide (accessory) AO Appelez-nous -
011 315037 Vault Panel AO Appelez-nous -
011 W10837674 Screw   (Replaces: Y313424) AO Special Order $ 6.90

012 WP62739 Nut   (Replaces: Y052740) AO Special Order $ 6.85

013 Y313671 Grommet AO Appelez-nous -
014 WP90767 Screw   (Replaces: 211294) AO In-Stock Immediately $ 7.04

014 305534 Vault Assy. AO Appelez-nous -
014 Y310632 Screw, Ground Wire To Vault AO Appelez-nous -
014 WP90767 Screw   (Replaces: Y313559) AO In-Stock Immediately $ 7.04

015 WP98165 Screw   (Replaces: 213648) AO Special Order $ 7.20

015 NLA Control Shroud-white AO Appelez-nous -
016 WPW10139210 Screw   (Replaces: 211168) AO Special Order $ 6.75

016 910768 Cable Strap AO Appelez-nous -
017 WP90767 Screw   (Replaces: 212276) AO In-Stock Immediately $ 7.04

017 NLA Mtg. Strap----na AO Appelez-nous -
018 NLA Coin Meter Stop AO Appelez-nous -
018 Y014872 Screw AO Appelez-nous -
019 Y307081 Outer Case (white) AO Appelez-nous -
019 NLA (almond) AO Appelez-nous -
020 208883 Coin Box-white   (Replaces: 205423) AO Appelez-nous -
020 208883 (almond)   (Replaces: 205423L) AO Appelez-nous -
021 313428 Plate For Latch AO Appelez-nous -
022 NLA Spring Washer AO Appelez-nous -
023 WPW10139210 Screw   (Replaces: 211168) AO Special Order $ 6.75

023 Y303981 Ground Wire AO Appelez-nous -
024 206637 Latch   (Replaces: Y313427) AO Special Order $ 68.04

025 W11395752 Nut, Hex   (Replaces: 212328) AO Special Order $ 11.74


    View Diagram in Separate Window     Print Icon   Print Part List

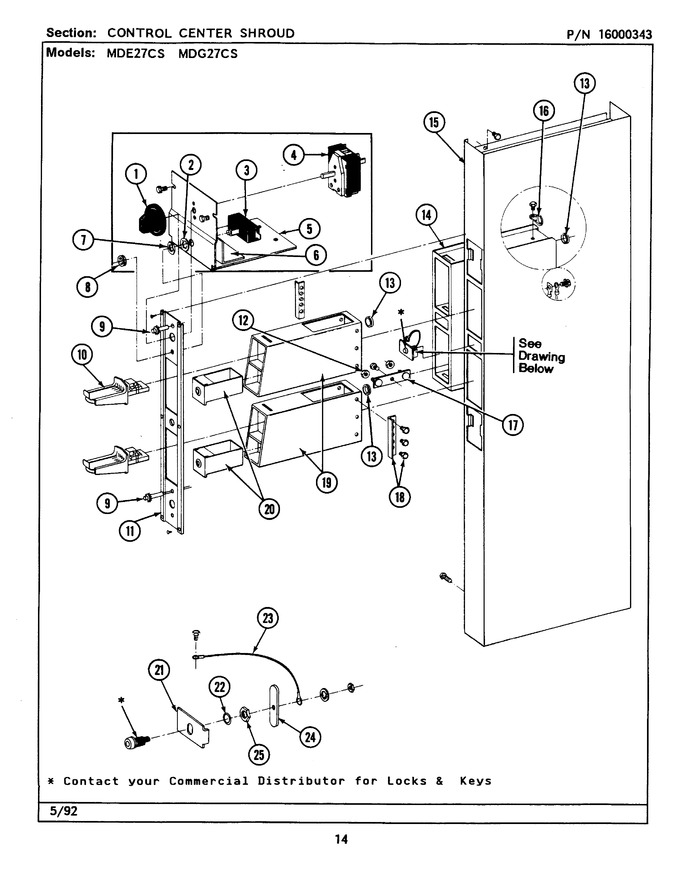

Diagram for MDG27CSABL
