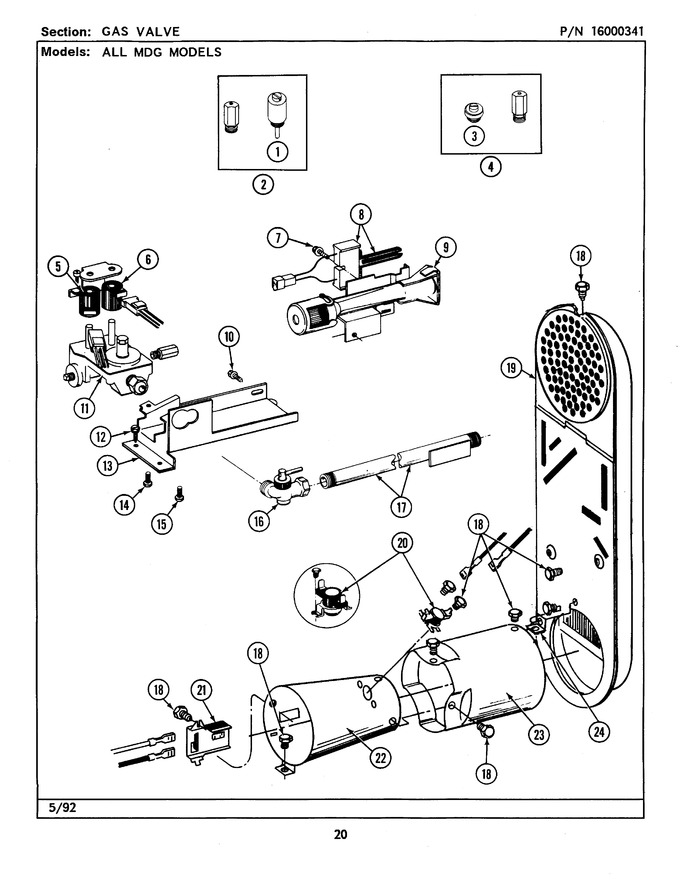

06 - Gas Valve


07 - Motor, Blower, Base Frame & Thermostats


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	306184		Plug, Blocking (lpg Regulator)	A0	Appelez-nous	-
002	Y308378		Conv Kit (natural To Lp) ----s	A2	Appelez-nous	-
003	WP694424		Leak Limiter (lpg)   (Replaces: 314602)	A0			$ 31.11
004	Y308377		Conversion Kit (lp To Natural)	A2	Appelez-nous	-
005	58804A		Coil, Holding & Booster--w   (Replaces: 306106)	A0		Immediately	$ 28.02
006	279834		Coil, Secondary--w   (Replaces: 306105)	A0		Immediately	$ 29.57
007	304971		Screw	A0	Appelez-nous	-
008	4391996		Igniter Assy, Gas Valve   (Replaces: 304970)	A0		Immediately	$ 42.36
009	WP33002793		Burner Assembly   (Replaces: 304974)	A2			$ 161.35
009	WP33002793		Burner Assy.   (Replaces: Y308457)	A0			$ 161.35
010	Y310632		Screw	A2	Appelez-nous	-
011	WP308345		Valve, Gas   (Replaces: 308345)	A2			$ 313.92
012	Y313561		Screw----na	A0			$ 5.27
013	314566		Bracket, Gas Valve	A2	Appelez-nous	-
014	WP90767		Screw   (Replaces: 314082)	A2		Immediately	$ 7.04
015	WP90767		Screw   (Replaces: Y313559)	A0		Immediately	$ 7.04
016	Y303349		Shut-off, Gas Valve	A0	Appelez-nous	-
017	Y303383		Pipe & Bracket Assy.	A0	Appelez-nous	-
018	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
019	307119		Inlet Duct Assy.	A0	Appelez-nous	-
019	Y308504		Inlet Duct Assy.	A5	Appelez-nous	-
020	WP305169		Thermostat, Hi-limit Gas   (Replaces: 305169)	A2			$ 117.03
021	WP338906		Sensor, Radiant   (Replaces: Y303377)	A0		Immediately	$ 46.72
022	Y303368		Cone, Combustion	A0	Appelez-nous	-
022	Y308548		Cone, Combustion	A5	Appelez-nous	-
023	Y303841		Cone, Extension (combustion)	A0	Appelez-nous	-
024	Y312890		Retainer, Heater Chamber	A0	Appelez-nous	-
