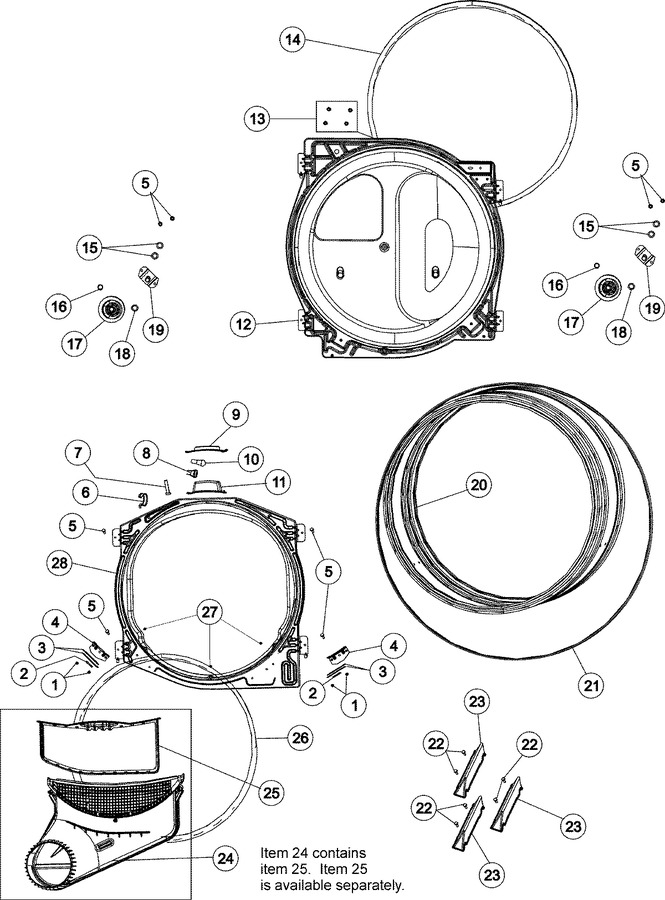

SELECT A DIAGRAM

01 - Base, Heating & Motor


02 - Cabinet & Front Panel


03 - Control Panel & Top


04 - Supplemental Information


05 - Tumbler


06 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw, No.8-32x3/8`` Hex   (Replaces: 37001031)	10			$ 9.79
2	WP500121		Pad, Felt-coin   (Replaces: 500121)	10		Immediately	$ 7.75
3	40116501		Glide,cylinder(tan)	10	Appelez-nous	-
4	WP37001036		Bracket, Cylinder Glide   (Replaces: 37001036)	10		Immediately	$ 51.65
5	285394		Screw, 10-16x.44 Uns   (Replaces: 503661)	10	Appelez-nous	-
6	504034		Clip, Wire	10	Appelez-nous	-
7	D505295		Screw, No.8ab-16x3/4 Ph   (Replaces: 505295)	10			$ 1.47
8	504458		Holder, Lamp	10	Appelez-nous	-
9	40094301		Lens, Light	10			$ 5.70
10	W10857122		Light, Cylinder   (Replaces: Y60954)	10			$ 12.45
11	503622		Housing, Cylinder Light	10	Appelez-nous	-
12	504801W		Bulkhead, Rear (wht)	10	Appelez-nous	-
13	D503688		Screw   (Replaces: 503688)	10		Immediately	$ 6.95
14	WP37001132		Seal, Cylinder   (Replaces: 37001132)	10		Immediately	$ 54.31
15	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)	10		Immediately	$ 7.16
16	WP23748		Ring, Retaining   (Replaces: 23748)	10		Immediately	$ 10.75
17	WP37001042		Assembly, Cylinder Roller   (Replaces: 37001042)	10		Immediately	$ 15.26
18	Y504082		Washer, Wave	10			$ 5.83
19	WP40113601		Assy, Roller Brkt   (Replaces: 40113601)	10			$ 83.99
20	504467W		Assembly, Cylinder (wht)	10	Appelez-nous	-
21	WP40111201		Belt, Cylinder   (Replaces: 40111201)	10		Immediately	$ 16.81
22	Y62588		Screw, 10bt-12 X 1 Tap	10	Appelez-nous	-
23	37001125		Baffle, (wht)	10			$ 86.25
24	37001141		Air Duct Assembly	10			$ 86.17
25	WP37001142		Filter, Lint   (Replaces: 37001142)	10		Immediately	$ 112.23
26	WP37001132		Seal, Cylinder   (Replaces: 37001132)	10		Immediately	$ 54.31
27	37001030		Screw, No.8ab-16x3/4 Fh	10	Appelez-nous	-
28	503616W		Assy, Blkhd Front Lit (wht)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
