01 - Cooktop, Burner And Grate Parts

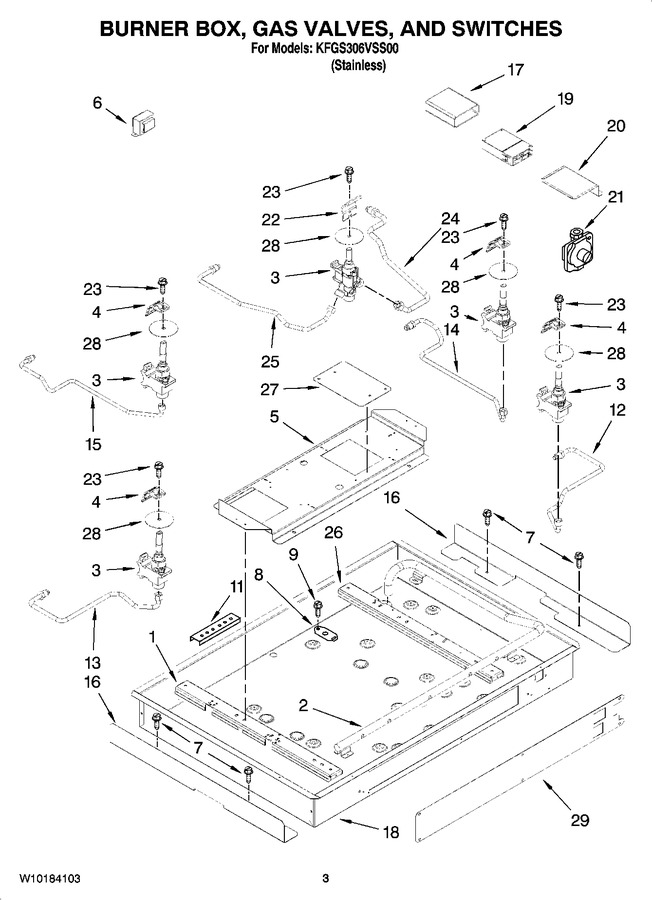

02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286753 | Rail, Left Burner |
|
- | |||||
| 2 | W10475135 | Pipe, Manifold (Replaces: 8287309) |
|
$ 150.21 | |||||
| 3 | 8286916 | Valve, Gas Burner (lr) |
|
$ 213.35 | |||||
| 3 | WP8286917 | Valve, Gas Burner (center) (Replaces: 8286917) |
|
$ 259.37 | |||||
| 3 | 8286920 | Valve, Gas Burner (rf) |
|
$ 153.17 | |||||
| 3 | 8286919 | Valve, Gas Burner (rr, Lf) |
|
$ 212.06 | |||||
| 4 | 8287055 | Bracket, Single Valve (4) |
|
$ 65.54 | |||||
| 5 | 8286765 | Rail, Center |
|
- | |||||
| 6 | 8286691 | Transformer |
|
$ 109.07 | |||||
| 7 | W11676349 | Screw (Replaces: 8286921) |
|
Immediately | $ 12.65 | ||||
| 8 | 8286858 | Bracket, Mainfold |
|
- | |||||
| 9 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 11 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 12 | W10140947 | Tubing, Gas Burner (rf) |
|
- | |||||
| 13 | W10140946 | Tubing, Gas Burner (lf) |
|
- | |||||
| 14 | 8287306 | Tubing, Gas Burner (rr) |
|
- | |||||
| 15 | 8287305 | Tubing, Gas Burner (lr) |
|
- | |||||
| 16 | 8286771 | Shield, Heat (2) |
|
- | |||||
| 17 | 8287102 | Insulation, Reignition Module |
|
- | |||||
| 18 | 8286763 | Burner Box |
|
- | |||||
| 19 | WP8286828 | Reignition Module (Replaces: 8286828) |
|
$ 297.59 | |||||
| 20 | 8287101 | Cover, Reignition Module |
|
- | |||||
| 21 | W11087445 | Regulator, Pressure (Replaces: W10132345) |
|
Immediately | $ 177.34 | ||||
| 22 | 8287056 | Bracket, Dual Valve |
|
- | |||||
| 23 | 8287057 | Screw (5) |
|
$ 10.15 | |||||
| 24 | W10140944 | Tubing, External Crown |
|
- | |||||
| 25 | W10140945 | Tubing, Inner Crown |
|
- | |||||
| 26 | 8286728 | Rail, Burner (right) |
|
- | |||||
| 27 | W10141511 | Plate, Center Burner |
|
- | |||||
| 28 | W10140571 | Seal, Switch Shaft |
|
$ 6.60 | |||||
| 29 | 8286740 | Cover Plate, Front Front Burner Box |
|
- | |||||
| WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | |||||
| W10392003 | Cord, Power (Replaces: 8286692) |
|
$ 138.57 | ||||||
| 8286698 | Harness, Main Wire |
|
$ 160.04 | ||||||
| 8186533 | Assembly, Mounting Hardware (Replaces: W10163327) |
|
$ 79.60 | ||||||
| 8287106 | Clip, Wire |
|
- | ||||||
| 8287082 | Spud Kit |
|
- | ||||||
| W10132168 | Gasket, Rubber 1608mm |
|
$ 37.30 | ||||||
| W10140953 | Gasket, Rubber 930mm |
|
- | ||||||
| 8286861 | Insulation |
|
- |
