SELECT A DIAGRAM

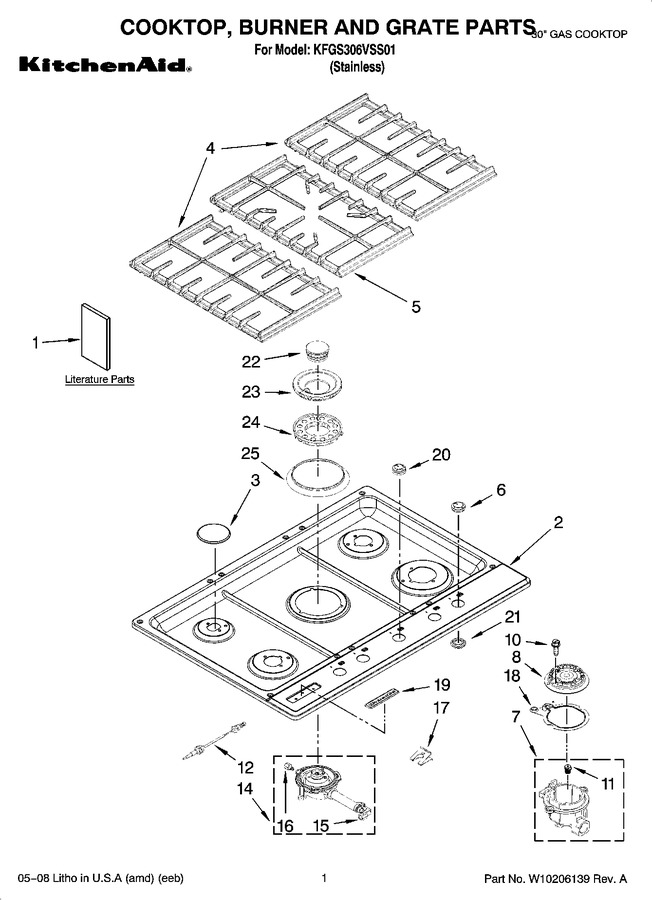

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286867		Installation Instructions		Appelez-nous	-
1	8304571		Undercounter Installation		Appelez-nous	-
1	8286868		Use & Care Guide		Appelez-nous	-
1	3191638		Safe Cooking Tips (english)		Appelez-nous	-
1	9759133		Safe Cooking Tips (french)		Appelez-nous	-
1	W10181980		Lp Conversion Instructions		Appelez-nous	-
2	W10163405		Cooktop				$ 199.00
3	WP8286818		Cap, Burner (rf)   (Replaces: 8286818)				$ 100.97
3	WP8286816		Cap, Burner (lr)   (Replaces: 8286816)				$ 94.92
3	WP8286817		Cap, Burner (rr, Lf)   (Replaces: 8286817)				$ 100.88
4	8286659		Grate, Burner (left)				$ 91.14
4	8286661		Grate, Burner (right)				$ 89.11
5	8287048		Grate, Center				$ 88.87
6	WPW10132192		Knob, Control (4)   (Replaces: W10132192)				$ 53.82
7	8286820		Holder, Orifice (lr)				$ 68.99
7	8286821		Holder, Orifice (lf)				$ 69.13
7	W10140570		Holder, Orifice (rf)				$ 69.44
7	W10140569		Holder, Orifice (rr)				$ 69.13
8	WP8286813		Head, Burner (lr)   (Replaces: 8286813)				$ 85.50
8	WP8286815		Head, Burner (rf)   (Replaces: 8286815)			Immediately	$ 66.94
8	WP8286814		Head, Burner (rr, Lf)   (Replaces: 8286814)				$ 106.79
10	WP8287059		Screw   (Replaces: 8287059)			Immediately	$ 7.02
11	W10791076		Orifice (lf)   (Replaces: W10151347)				$ 85.86
11	W10791072		Orifice (rf)   (Replaces: W10151349)				$ 85.86
11	W10151350		Orifice (rr)				$ 72.95
11	W10791614		Orifice (lr)   (Replaces: W10151348)				$ 85.86
12	8286723		Electrode Wiring (lr)				$ 69.68
12	WPW10560001		Electrode Wiring (lf)   (Replaces: 8286722)				$ 71.52
12	8286724		Electrode Wiring (rf)				$ 30.12
12	W10854967		Electrode Wiring (rr)   (Replaces: 8286725)			Immediately	$ 41.37
12	W10132167		Electrode Wiring (center)		Appelez-nous	-
14	8286819		Assembly, Burner Base				$ 124.66
15	W10137306		Orifice, External		Appelez-nous	-
16	WPW10137303		Orifice, Simmer   (Replaces: W10137303)				$ 77.03
17	8286863		Clip, Electrode				$ 65.93
18	8286930		Gasket, Orifice (lr)				$ 82.05
18	8286932		Gasket, Orifice (rf)				$ 82.11
18	8286931		Gasket, Orifice (rr, Lf)				$ 53.77
19	8304603SS		Badge				$ 51.11
20	W10132191		Knob, Special Burner (1)				$ 53.42
21	W10132183		Knob, Grommet (5)				$ 5.65
22	WPW10163407		Spreader, Inner   (Replaces: W10163407)				$ 137.60
23	WPW10153033		Spreader, Outer   (Replaces: W10153033)				$ 168.80
24	WP8287072		Cross Ring, Burner   (Replaces: 8287072)				$ 178.52
25	8287075		Beauty Ring, Burner				$ 30.60

    View Diagram in Separate Window       Print Part List
