SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

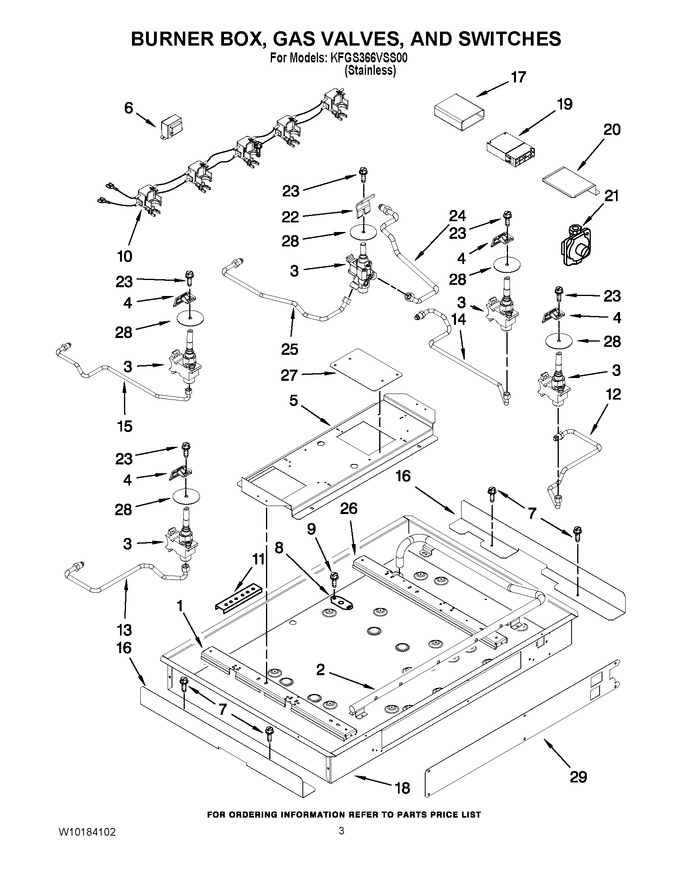

02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286753		Rail, Left Burner		Appelez-nous	-
2	8287310		Pipe, Manifold		Appelez-nous	-
3	8286916		Valve, Gas Burner (lr)				$ 213.35
3	WP8286917		Valve, Gas Burner (center)   (Replaces: 8286917)				$ 259.37
3	8286920		Valve, Gas Burner (rf,lf)				$ 153.17
3	8286919		Valve, Gas Burner (rr)				$ 212.06
4	8287055		Bracket, Single Valve (4)				$ 65.54
5	8286754		Rail, Center		Appelez-nous	-
6	8286691		Transformer				$ 109.07
7	W11676349		Screw   (Replaces: 8286921)			Immediately	$ 12.65
8	8286858		Bracket, Mainfold		Appelez-nous	-
9	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
10	8286686		Switch Harness				$ 89.58
11	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
12	8286737		Tubing, Gas Burner (rf)		Appelez-nous	-
13	8286735		Tubing, Gas Burner (lf)		Appelez-nous	-
14	8286738		Tubing, Gas Burner (rr)		Appelez-nous	-
15	8286736		Tubing, Gas Burner (lr)		Appelez-nous	-
16	8286771		Shield, Heat (2)		Appelez-nous	-
17	8287102		Insulation, Reignition Module		Appelez-nous	-
18	8286751		Burner Box		Appelez-nous	-
19	WP8286828		Reignition Module   (Replaces: 8286828)				$ 297.59
20	W10132198		Cover, Reignition Module		Appelez-nous	-
21	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
22	8287056		Bracket, Dual Valve		Appelez-nous	-
23	8287057		Screw				$ 10.15
24	W10132184		Tubing, External Crown		Appelez-nous	-
25	W10132185		Tubing, Inner Crown				$ 36.27
26	8286728		Rail, Burner (right)		Appelez-nous	-
27	W10141511		Plate, Center Burner		Appelez-nous	-
28	W10140571		Seal, Switch Shaft				$ 6.60
29	8286740		Cover Plate, Front Burner Box		Appelez-nous	-
