SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

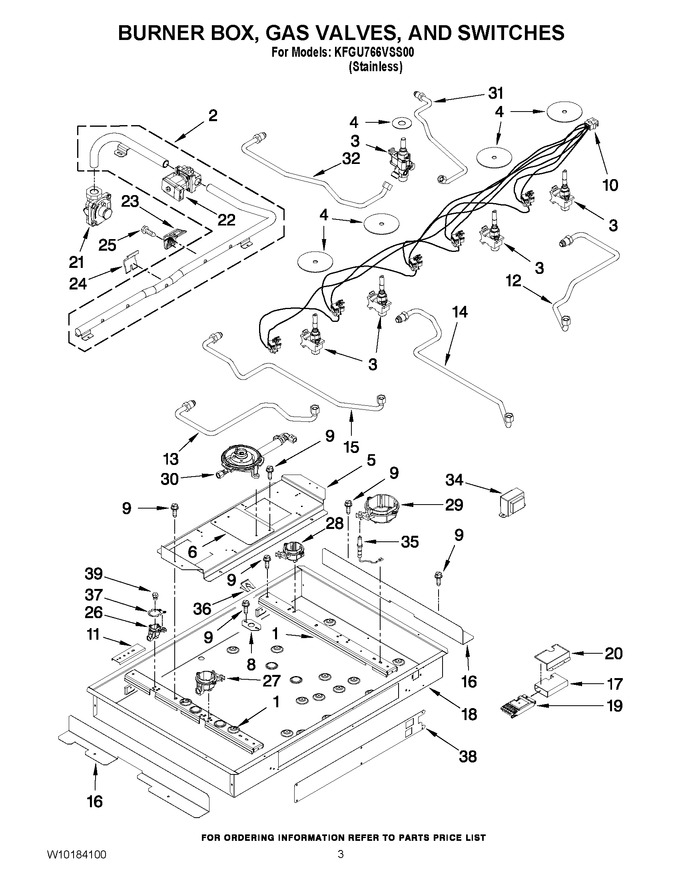

02 - Burner Box, Gas Valves, And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286753		Rail, Burner (left)		Appelez-nous	-
1	8286728		Rail, Burner Right		Appelez-nous	-
2	8287312		Pipe, Manifold				$ 128.04
3	8286920		Valve, Gas Burner (rf)				$ 153.17
3	8286916		Valve, Gas Burner (lr)				$ 213.35
3	8286919		Valve, Gas Burner (lf, Rr)				$ 212.06
3	WP8287058		Valve, Gas Burner (center Dual)   (Replaces: 8287058)				$ 275.16
4	W10140571		Seal, Shaft (single)				$ 6.60
4	W10140577		Seal, Shaft (dual)		Appelez-nous	-
5	W10153621		Rail, Center		Appelez-nous	-
6	W10141511		Plate, Center Brnr		Appelez-nous	-
8	8286858		Bracket, Mainfold		Appelez-nous	-
9	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
10	8286687		Harness & Switches				$ 89.50
11	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
12	8286737		Tubing, Gas Burner (rf)		Appelez-nous	-
13	8286735		Tubing, Gas Burner (lf)		Appelez-nous	-
14	8286738		Tubing, Gas Burner (rr)		Appelez-nous	-
15	8286736		Tubing, Gas Burner (lr)		Appelez-nous	-
16	8286771		Shield, Heat		Appelez-nous	-
17	8286829		Module,reignition				$ 243.02
18	8286751		Burner Box		Appelez-nous	-
19	8287103		Insulation, Reignition Module				$ 66.94
20	8286739		Cover,reignit.mdl.		Appelez-nous	-
21	W11087445		Regulator, Pressure   (Replaces: W10132345)			Immediately	$ 177.34
22	8287076		Valve,solenoid Lock				$ 193.47
23	8287055		Bracket,single Vlv				$ 65.54
24	8287056		Bracket,dual Vlv		Appelez-nous	-
25	8287057		Screw, Brkt Vlv				$ 10.15
26	8286820		Orifice Hldr 6k Lr				$ 68.99
27	W10140569		Orifice Hldr 7k Lf				$ 69.13
28	W10140570		Orifice Hld 10k Rr				$ 69.44
29	8286822		Orifice Hld 12k Rf				$ 47.00
30	8286936		Orific Hld 20k Ctr				$ 119.07
31	8286729		Pipe,ext. Crown		Appelez-nous	-
32	8286730		Pipe,int. Crown		Appelez-nous	-
34	8286690		Transformer				$ 113.04
35	8286723		Electrode (lr)				$ 69.68
35	W10854967		Electrode (rr)   (Replaces: 8286725)			Immediately	$ 41.37
35	8286724		Electrode (rf)				$ 30.12
35	WPW10560001		Electrode (lf)   (Replaces: 8286722)				$ 71.52
36	8286863		Spring,electrode				$ 65.93
37	8286931		Gasket, Orifice (lf,rr)				$ 53.77
37	8286930		Gasket, Orifice (lr)				$ 82.05
37	8286932		Gasket, Orifice (rf)				$ 82.11
38	8286740		Cover Plate		Appelez-nous	-
39	W10791081		Orifice (ng) (rf)   (Replaces: W10151346)				$ 85.86
39	W10791076		Orifice (ng) (rr)   (Replaces: W10151347)				$ 85.86
39	W10791072		Orifice (ng) (ctr)   (Replaces: W10151349)				$ 85.86
39	W10791614		Orifice (ng) (lr)   (Replaces: W10151348)				$ 85.86
39	W10151350		Orifice (ng) (lf)				$ 72.95
