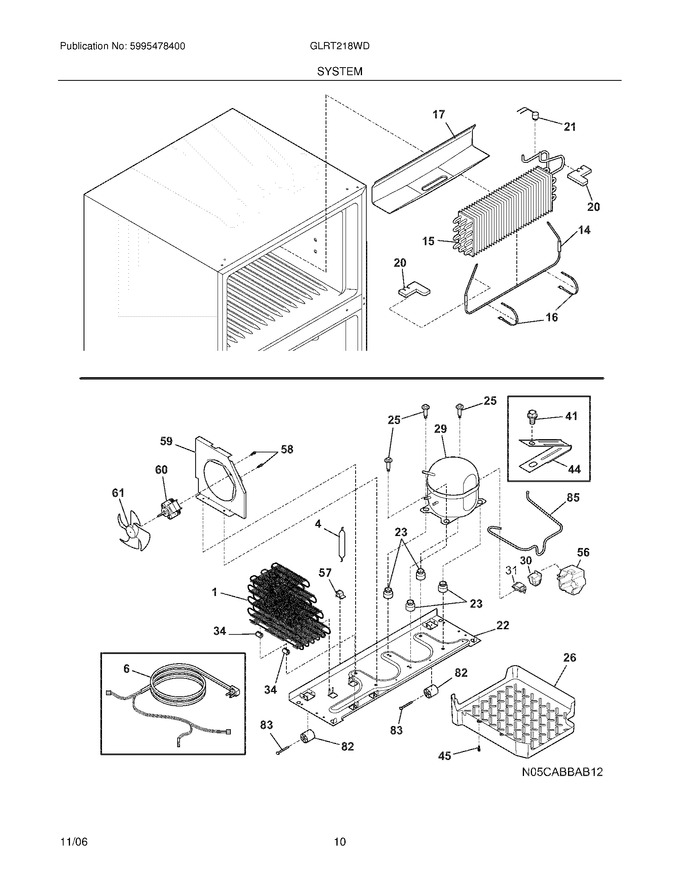

09 - System


11 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	241801301		Trough-drain   (Replaces: 241551801)				$ 64.46
20	241551902		Insulation Block				$ 11.34
22	241602001		Base-compressor		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	240491501		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)		Appelez-nous	-
26	241697603		Pan-defrost   (Replaces: 241637401)				$ 79.22
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	240555001		Screw-no.8-32 X 3/8		Appelez-nous	-
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
56	240582001		Cover-terminal		Appelez-nous	-
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
59	5304430246		Bracket-cond Motor Assy		Appelez-nous	-
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 35.34
85	240493101		Tube-connector,suction				$ 85.95
F1	240444401		Condenser,dynamic		Appelez-nous	-
F14	240356217		Heater-defrost				$ 109.15
F15	5303918274		Evaporator Kit			Immediately	$ 423.67
F21	5303918202		Thermostat-defrost,kit			Immediately	$ 20.21
F29	5303918297		Compressor,w/electricals		Appelez-nous	-
F30	5304433579		Relay				$ 35.39
F31	216954208		Overload Protector   (Replaces: 5304433578)				$ 74.42
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F6	241649801		Harness-wiring,machine Compt		Appelez-nous	-
F60	5303918774		Motor,condensor Fan   (Replaces: 240525402)			Immediately	$ 186.30
F61	240524102		Fan Blade,galv Steel ,condenser Fan   (Replaces: 240524101)			Immediately	$ 39.43
NI	240359401		Screw-fan Shroud,(2)		Appelez-nous	-
NI	241537701		Wiring Harness,freezer Section ,with Light		Appelez-nous	-
NI	240581801		Harness-wiring,compressor				$ 298.39
NI	241566801		Harness-wiring,c/box M/level				$ 59.96
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
NI	5303918330		Heat Exchanger Kit,suction Line ,service				$ 335.10
NI	240346701		Tape-foam Seal,shroud				$ 29.77
NI	5304421289		Hot Tube Repair Kit,service				$ 537.60
