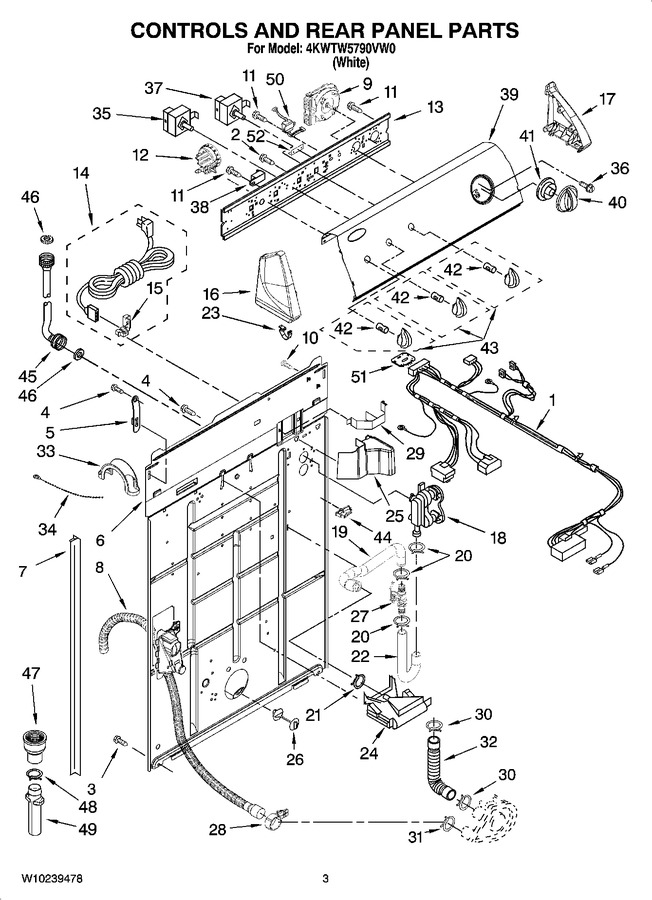

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10217698		Wiring Harness (for Detail See Pages 9 & 10)		Appelez-nous	-
2	3400073		Screw, Ground		Appelez-nous	-
3	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
4	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.72
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.35
6	W10194451		Panel, Rear				$ 149.72
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 24.81
8	WPW10189267		Drain Hose Assembly (includes Item 28)   (Replaces: W10189267)			Immediately	$ 66.70
9	WPW10110460		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: W10110460)				$ 321.80
10	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.57
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
12	W10339251		Switch, Water Level   (Replaces: 8577844)			Immediately	$ 276.31
13	8566003		Bracket, Control				$ 64.58
14	W10111552		Cord, Power		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	WP8565957		Cap, End (l.h.) (includes Item 23)   (Replaces: 8566035)				$ 58.28
17	WP8565954		Cap, End (r.h.) (includes Item 23)   (Replaces: 8566032)				$ 59.26
18	WP3360397		Valve, Water Mixing   (Replaces: 3360397)				$ 272.20
19	WP3349365		Hose, Sensor (upper)   (Replaces: 3349365)				$ 20.17
20	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.94
21	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.94
22	WP3357319		Hose, Vacuum Break   (Replaces: 3357319)				$ 25.71
23	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 47.68
25	8314879		Shield, Suds		Appelez-nous	-
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.87
27	3352282		Sensor, Inline				$ 66.68
28	8541668		Clamp, Hose				$ 20.09
29	8055003		Clip, Harness & Pressure Hose				$ 36.24
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.72
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.93
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.09
33	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.53
34	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.47
35	W10219753		Switch, Water Temperature		Appelez-nous	-
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.93
37	W10168264		Switch, Rotary   (Replaces: 3950356)				$ 119.39
38	3952439		Buzzer, Mini		Appelez-nous	-
39	W10219144		Panel, Console		Appelez-nous	-
40	W10034730		Knob, Timer				$ 25.16
41	WP8566018		Dial, Timer   (Replaces: 8566018)				$ 48.23
42	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
43	W10034380		Knob, Control				$ 25.06
44	3352944		Clip, Harness		Appelez-nous	-
45	WP89503		Hose, Water Inlet (2) (hot Water)   (Replaces: 8571378)			Immediately	$ 21.68
45	WP89503		Hose, Water Inlet (2) (cold Water)   (Replaces: W10194208)			Immediately	$ 21.68
46	WP16123		Washer, Water Inlet Hose (4)   (Replaces: W10242307)				$ 7.34
47	WP8577375		Coupler, Drain Hose   (Replaces: 8577375)				$ 7.62
48	WP285655		Clamp, Hose (2)   (Replaces: 285655)			Immediately	$ 7.93
49	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 8.31
50	3407160		Transformer		Appelez-nous	-
51	WPW10110247		Control, Atc-iec   (Replaces: W10110247)				$ 122.32
52	8316039		Shield, Atc		Appelez-nous	-
