View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet-front
02 - Cabinet-rear
03 - Control Panel
04 - Door
05 - Gas Valve
06 - Motor Drive
07 - Tumbler
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

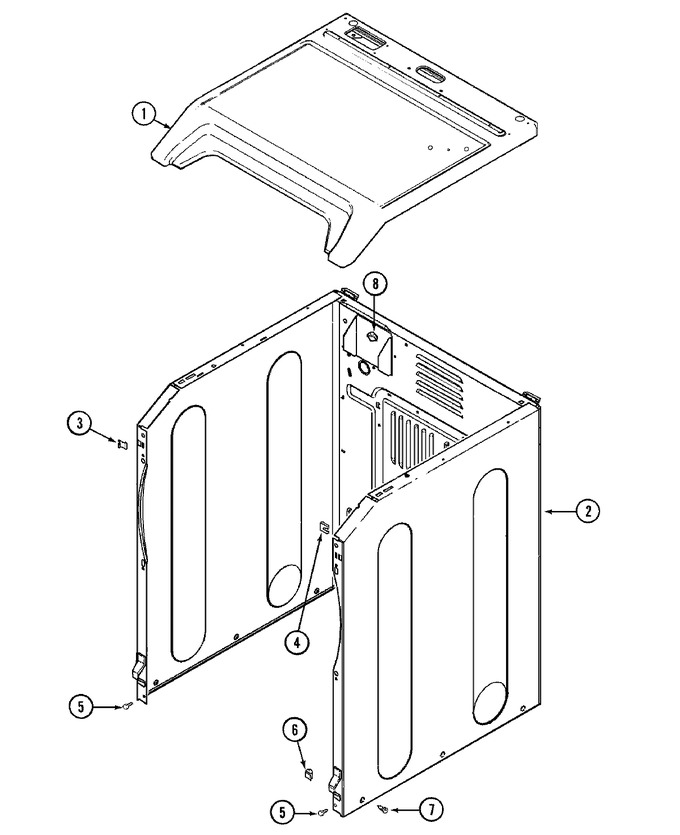

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 33002627 | Cover, Top (wht-as Pk) | 36 |
|
- | ||||
| 1 | 33001872 | Pin, Locator | 10 |
|
- | ||||
| 1 | 33001865 | Cover, Top (wht) | 10 |
|
- | ||||
| 2 | 22003640 | Cabinet Assy. (bisque As Pk) | 38 |
|
- | ||||
| 2 | 22003639 | Cabinet Assy. (wht As Pk) | 38 |
|
- | ||||
| 2 | 22003582 | Cabinet, Assy. (wht-as Pk) | 36 |
|
- | ||||
| 2 | 22002548 | Cabinet Assy. (wht) | 10 |
|
- | ||||
| 3 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 4 | 213280 | Front Panel Bracket/fastener | 10 |
|
- | ||||
| 5 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 6 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 7 | 213007 | Screw----na (Replaces: 22003409) | 36 |
|
$ 10.99 | ||||
| 7 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 8 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 |
