SELECT A DIAGRAM
01 - Cabinet
02 - Cabinet-rear
03 - Control Panel
04 - Door
05 - Gas Valve
06 - Motor Drive
07 - Tumbler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

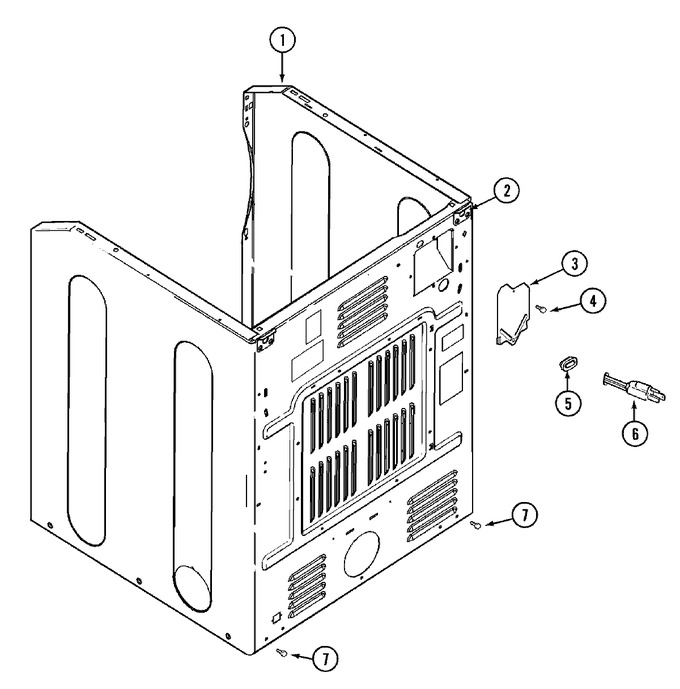

| 1 | 22003583 | Cabinet, Assy. (bsq-as Pk) | 36 |
|
- | ||||
| 1 | 22003582 | Cabinet, Assy. (wht-as Pk) | 36 |
|
- | ||||
| 1 | 12001424 | Cabinet Kit (wht) | 10 |
|
- | ||||
| 2 | 33001827 | Bracket, Cabinet Hinge | 10 |
|
- | ||||
| 3 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 4 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 211881 | Grommet, Cord | 10 |
|
- | ||||
| 6 | 33002184 | Cord, Power | 10 |
|
- | ||||
| 7 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 |
