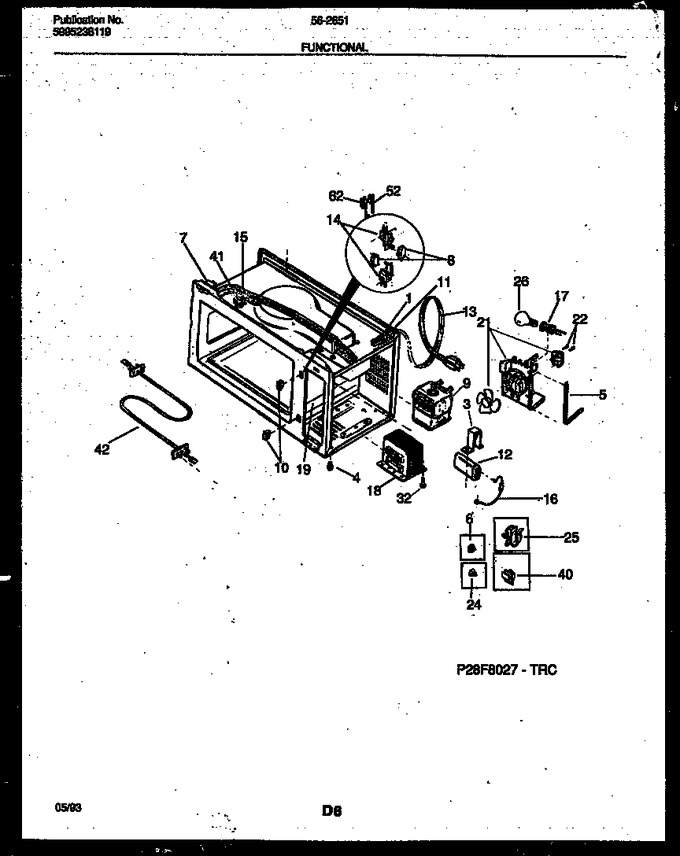

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308037723		Fuse, 15 Amp		Appelez-nous	-
3	5303013771		Retainer-capacitor		Appelez-nous	-
4	5303295314		Spacer, Foot, (4)		Appelez-nous	-
5	5303017864		Tape, Foam Seal, 1/4 X 1/4 In., Cut To Size		Appelez-nous	-
6	5303201365		Plug, Button, White. Probe		Appelez-nous	-
8	5303203636		Switch, Interlock		Appelez-nous	-
9	5303206781		Magnetron		Appelez-nous	-
10	5303212767		Bezel Latch (2)		Appelez-nous	-
11	5303212769		Bushing-fuse Holder, Strain Relief		Appelez-nous	-
12	5303212773		Capacitor		Appelez-nous	-
13	317005401		Cord-electric Power, 120 V		Appelez-nous	-
14	317000702		Bracket-switch, (2)		Appelez-nous	-
15	5303212783		Seal, Foam		Appelez-nous	-
16	5303212799		Harness And Diode, Hv		Appelez-nous	-
17	5303212810		Socket-light/lamp, Oven, 120 V		Appelez-nous	-
18	5303212811		Transformer, 120v		Appelez-nous	-
19	5303212845		Seal, Foam		Appelez-nous	-
21	5303922053		Motor-fan, 120 V, Includes Motor, Fan Duct, Fan Blade, I		Appelez-nous	-
22	5308014502		Screw, 6, 32 X 1, 1/8, Fan Motor, (2)		Appelez-nous	-
24	5308037665		Plug, Button, White, Tray, (2)		Appelez-nous	-
25	5303212787		Clamp, Cable		Appelez-nous	-
26	5303272172		Lamp, 25 W, 120 V		Appelez-nous	-
32	5303013944		Screw, Hx Serr Wshr Hd, 1/4-20 X 1/2, Transformer, (2)		Appelez-nous	-
40	5303014221		Support-rack (4)		Appelez-nous	-
41	5303283522		Switch, Thermal Cutout		Appelez-nous	-
42	5303212785		Element-browner		Appelez-nous	-
52	317005104		Switch-door Sensor		Appelez-nous	-
62	317005103		Switch-monitor, Snap		Appelez-nous	-
*86134	317000316		Harness-wiring, Main, .8 Tch Browner		Appelez-nous	-
22A	5303013273		Nut, Hex, 6-32 (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
