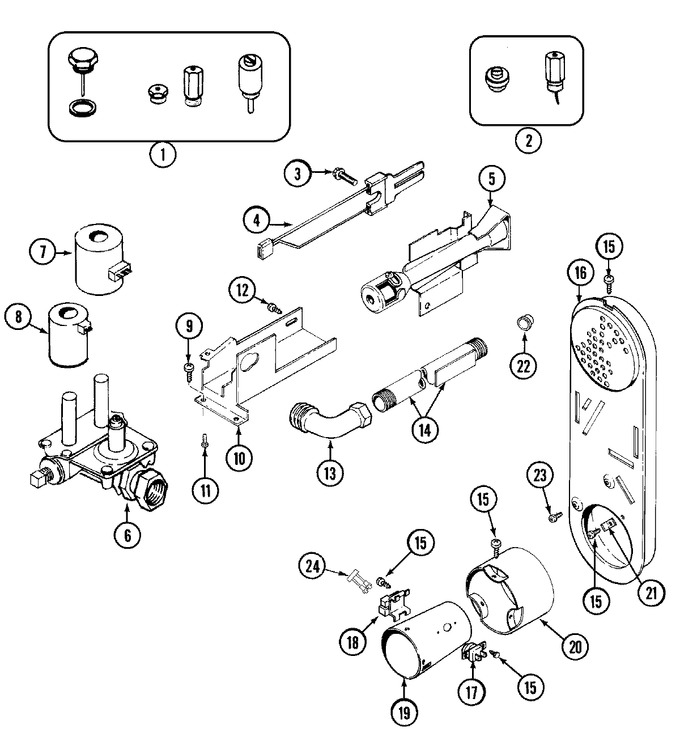

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | MAL9000AXX | Conversion Kit (natural To Lp) (Replaces: Y306195) | 10 |
|
$ 72.26 | ||||
| 2 | WP33002924 | Conversion Kit (lp To Natural) (Replaces: 306204) | 10 |
|
$ 100.25 | ||||
| 3 | 304971 | Screw | 10 |
|
- | ||||
| 4 | 4391996 | Igniter Assy, Gas Valve (Replaces: 304970) | 10 |
|
Immediately | $ 42.36 | |||
| 4 | WP33002789 | Igniter Assembly (Replaces: 33002789) | 60 |
|
Immediately | $ 80.85 | |||
| 5 | WP33002793 | Burner Assy. (Replaces: 33001247) | 10 |
|
$ 161.35 | ||||
| 6 | WP306176 | Valve, Gas (Replaces: 306176) | 10 |
|
$ 335.71 | ||||
| 7 | 58804A | Coil, Holding & Booster (Replaces: 306106) | 10 |
|
Immediately | $ 28.02 | |||
| 8 | 279834 | Coil, Secondary (Replaces: 306105) | 10 |
|
Immediately | $ 29.57 | |||
| 9 | Y313561 | Screw----na | 10 |
|
$ 5.27 | ||||
| 10 | 33001834 | Bracket, Gas Valve----na | 10 |
|
- | ||||
| 11 | 33002709 | Screw, No.8 X 3/8 Hex | 72 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: 314082) | 10 |
|
Immediately | $ 7.04 | |||
| 11 | WP90767 | Screw-gas Valve To Bracket (Replaces: 314568) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | Y310632 | Screw | 10 |
|
- | ||||
| 13 | 3406051 | Connector, Angle (Replaces: 33001842) | 10 |
|
$ 90.15 | ||||
| 14 | 33003029 | Control, Gas Assembly | 74 |
|
- | ||||
| 14 | 33001735 | Pipe & Bracket Assy. | 75 |
|
- | ||||
| 14 | 33001735 | Pipe & Bracket Assy. | 10 |
|
- | ||||
| 15 | WP90767 | Screw (Replaces: 211294) | 10 |
|
Immediately | $ 7.04 | |||
| 16 | 33003039 | Assy,inlet Duct-gas | 73 |
|
- | ||||
| 16 | 33001810 | Duct Assy., Inlet (gas) | 10 |
|
- | ||||
| 17 | WP694674 | Thermostat, Cycling (limit) (Replaces: 33002567) | 10 |
|
Immediately | $ 45.46 | |||
| 17 | WP303395 | Thermostat, Hi-limit (gas) (Replaces: 303395) | 10 |
|
Immediately | $ 66.35 | |||
| 18 | WP338906 | Sensor, Radiant (Replaces: Y303377) | 10 |
|
Immediately | $ 46.72 | |||
| 19 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 19 | 33001835 | Cone Assy., Combustion | 10 |
|
- | ||||
| 20 | Y303841 | Cone, Extension (combustion) | 10 |
|
- | ||||
| 21 | Y312890 | Retainer, Heater Chamber | 10 |
|
- | ||||
| 21 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 22 | 33001693 | Cap, Gas Pipe | 10 |
|
- | ||||
| 23 | WP489128 | Screw (Replaces: 22001996) | 10 |
|
$ 9.79 | ||||
| 24 | 902577 | Capacitor Assy | 63 |
|
$ 31.98 |
