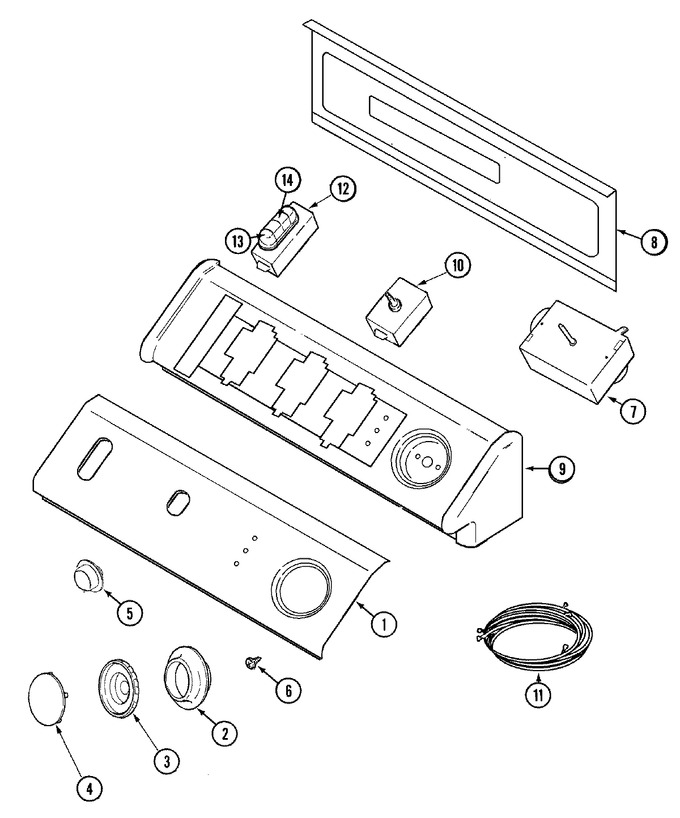

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y22002339		Screw	10	Appelez-nous	-
1	33002589		Panel, Control (bsq)	10	Appelez-nous	-
2	33002332		Skirt, Timer Knob (bsq)	10			$ 27.29
3	WP22001659		Timer Knob - Grey   (Replaces: 22001659)	10			$ 26.38
4	33002347		Timer Knob Insert/cap	10			$ 22.30
5	33002435		Button, Push-to-start (bsq)	10	Appelez-nous	-
6	WP90767		Screw, Timer   (Replaces: 33001690)	10		Immediately	$ 7.04
7	33001623		Buzzer, Non-adjustable	10			$ 55.84
7	WP33001632		Timer   (Replaces: 33001632)	10			$ 324.68
8	WP489128		Screw   (Replaces: 216423)	10			$ 9.79
8	33001806		Back, Console Panel	10	Appelez-nous	-
9	33002327		Console (bsq)	10	Appelez-nous	-
10	33002356		Switch, Push-to-start (bsq)	10	Appelez-nous	-
11	33002586		Wire Harness	10	Appelez-nous	-
12	33002591		Switch, Temperature (bsq)	10	Appelez-nous	-
13	22002697		Button, Switch (bsq-end)	10	Appelez-nous	-
14	22002698		Button, Switch (bsq-mdl)	10	Appelez-nous	-
15	33002581		Manual, Use & Care (tri)	10	Appelez-nous	-
15	33002450		Manual, Use & Care (spanish)	10	Appelez-nous	-
15	33002457		Manual, Use & Care	10	Appelez-nous	-
