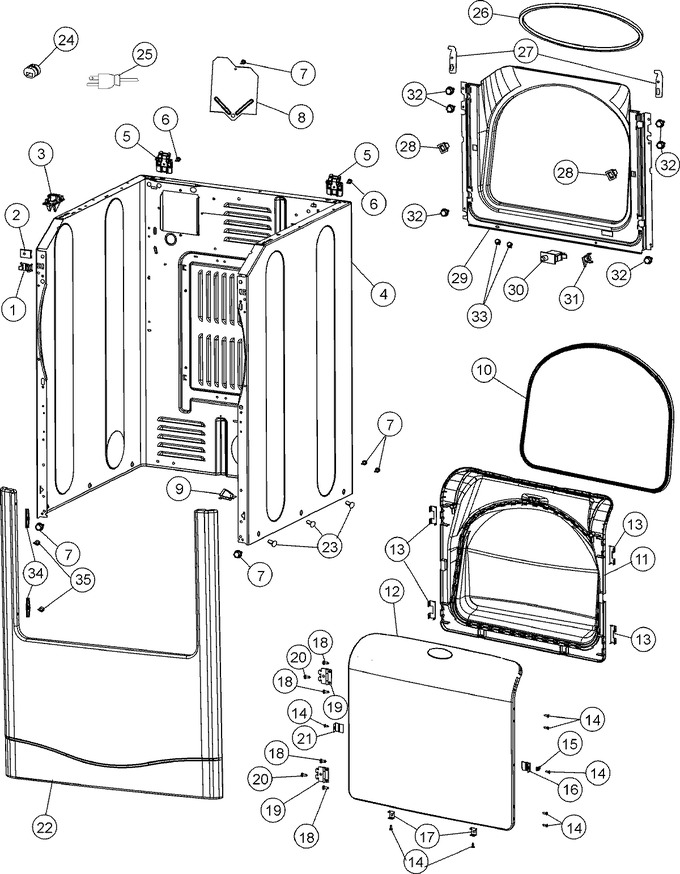

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 2 | 213280 | Front Panel Bracket/fastener | 10 |
|
- | ||||
| 3 | 33002891 | Pin, Locator | 10 |
|
$ 30.03 | ||||
| 4 | 22003640 | Cabinet Assy. (bisque As Pk) | 10 |
|
- | ||||
| 5 | 22004095 | Hinge, Plastic | 10 |
|
$ 20.04 | ||||
| 6 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 33002190 | Screw (no.10-3/8``) | 10 |
|
- | ||||
| 8 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 9 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 10 | WP33001807 | Seal, Tumbler (Replaces: 33001807) | 10 |
|
Immediately | $ 21.39 | |||
| 11 | 33002890 | Door, Inner W/seal (bsq) T | 10 |
|
- | ||||
| 12 | 33002888 | Door, Outer W/med. As Pk Bsq T | 10 |
|
- | ||||
| 13 | 22002038 | Clip, Door (double) | 10 |
|
- | ||||
| 14 | 22002063 | Screw No.8-18ab Wafer Hd | 10 |
|
$ 5.48 | ||||
| 15 | 33001761 | Strike, Door (male) | 10 |
|
$ 5.84 | ||||
| 16 | WP33001793 | Bracket, Strike (Replaces: 33001793) | 10 |
|
$ 7.43 | ||||
| 17 | 22002039 | Clip, Door (single) | 10 |
|
$ 8.15 | ||||
| 18 | WP98006631 | Screw (Replaces: 22002062) | 10 |
|
$ 6.26 | ||||
| 19 | WP33001759 | Hinge, Door (Replaces: 33001759) | 10 |
|
$ 69.86 | ||||
| 20 | 22002012 | Screw, Hinge | 10 |
|
$ 5.48 | ||||
| 21 | 33001763 | Plug, Inner Door | 10 |
|
$ 6.90 | ||||
| 22 | 33002883 | Panel, Front As Pack (bsq) T | 10 |
|
- | ||||
| 23 | 213007 | Screw (oval 6 Lobe) (Replaces: 33002794) | 10 |
|
$ 10.99 | ||||
| 24 | 211881 | Grommet, Cord | 10 |
|
- | ||||
| 25 | WP22003062 | Cord, Power (as Wrapped) (Replaces: 22003062) | 10 |
|
$ 121.96 | ||||
| 26 | 33001767 | Seal, Shroud | 10 |
|
$ 25.05 | ||||
| 27 | 33002597 | Hook, Security | 10 |
|
$ 28.59 | ||||
| 28 | 306436 | Door Latch Kit | 10 |
|
Immediately | $ 10.17 | |||
| 29 | 33002033 | Shroud (wht) | 10 |
|
- | ||||
| 29 | 33002379 | Shroud (bsq) | 10 |
|
$ 67.82 | ||||
| 30 | W10169313 | Switch, Door (Replaces: 33001508) | 10 |
|
Immediately | $ 29.18 | |||
| 31 | 33001760 | Bracket, Hinge | 10 |
|
- | ||||
| 32 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 33 | 33001768 | Screw, Shroud | 10 |
|
- | ||||
| 34 | 33001765 | Cover, Hinge Hole (alm) | 10 |
|
- | ||||
| 35 | WP33001787 | Screw, Hinge (Replaces: 33001787) | 10 |
|
$ 10.45 |
