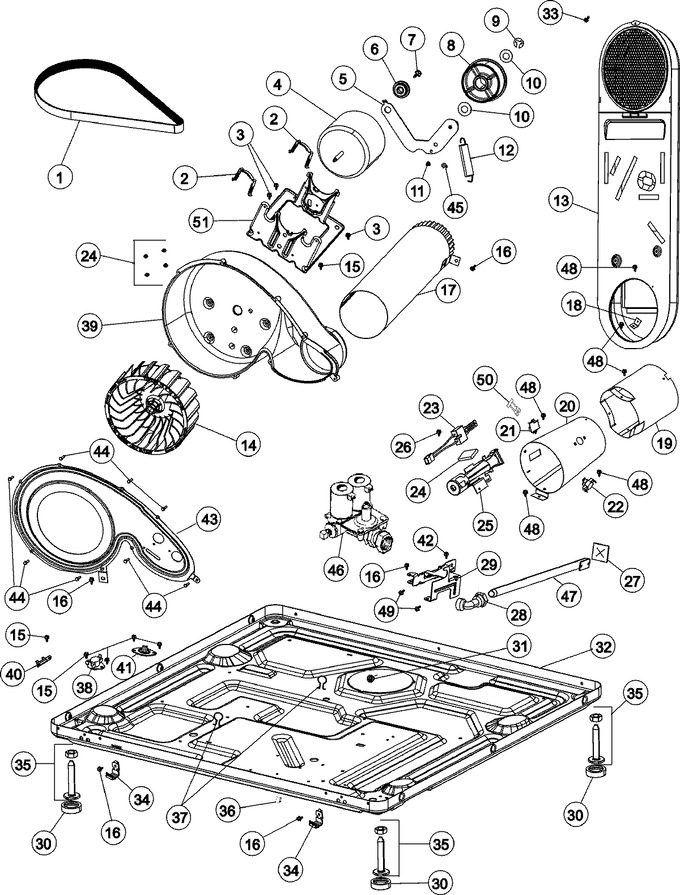

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002535		V-belt (tumbler)   (Replaces: 33002535)	10		Immediately	$ 30.78
2	WPY015825		Clip, Motor   (Replaces: 33002221)	10			$ 21.03
3	Y313561		Screw----na	10			$ 5.27
4	WP33002795		Motor, Drive 60hz   (Replaces: 33002795)	10		Immediately	$ 229.65
5	WP6-3705180		Idler Arm & Shaft Assy.   (Replaces: 33001840)	10		Immediately	$ 44.32
6	WP315772		Sleeve, Idler Arm   (Replaces: 315772)	10		Immediately	$ 10.39
7	WPY014874		Screw   (Replaces: Y014874)	10			$ 6.98
8	WP6-3700340		Bearing, Idler Assembly   (Replaces: 33001783)	10		Immediately	$ 24.98
9	WP354987		Retaining Ring, Idler Shaft   (Replaces: 312958)	10		Immediately	$ 10.58
10	WPY312527		Washer, Idler Shaft (qty-1)   (Replaces: Y312527)	10		Immediately	$ 10.01
11	33002218		Grommet, Idler Arm	10	Appelez-nous	-
12	33002459		Assembly, Spring & Plug	10			$ 6.94
13	33002765		Inlet Duct Assembly (gas)	10	Appelez-nous	-
14	WP33002797		Wheel, Blower   (Replaces: 33002797)	10		Immediately	$ 93.13
15	WP489128		Screw   (Replaces: 22002925)	10			$ 9.79
16	33002190		Screw (no.10-3/8``)	10	Appelez-nous	-
17	33001800		Duct Assy., Exhaust	10	Appelez-nous	-
18	Y312890		Retainer, Heater Chamber	10	Appelez-nous	-
19	Y303841		Cone, Extension (combustion)	10	Appelez-nous	-
20	33001835		Cone Assy., Combustion	10	Appelez-nous	-
21	WP338906		Sensor, Radiant   (Replaces: Y303377)	10		Immediately	$ 46.72
22	WP303395		Thermostat, Hi-limit (gas)   (Replaces: 303395)	10		Immediately	$ 66.35
23	WP33002789		Igniter Assembly   (Replaces: 33002789)	10		Immediately	$ 80.85
24	33002932		Ignitor Shock Pad	10	Appelez-nous	-
25	WP33002793		Burner Assembly   (Replaces: 33002793)	10			$ 161.35
26	304971		Screw	10	Appelez-nous	-
27	33001702		Flap, Pipe	10	Appelez-nous	-
28	3406051		Connector, Angle   (Replaces: 33001842)	10			$ 90.15
29	33001834		Bracket, Gas Valve----na	10	Appelez-nous	-
30	Y314137		Foot, Rubber	10			$ 14.08
31	33002157		Grommet	10	Appelez-nous	-
32	33002465		Base, (lwr)----na	10	Appelez-nous	-
33	210932		Screw, No.8 X 9/16 Ctsk	10	Appelez-nous	-
34	22002239		Clip, Lower Front Panel	10			$ 5.84
35	WP233550		Adjustable Leg & Nut   (Replaces: Y305086)	10			$ 7.16
36	22002244		Clip, Grounding	10	Appelez-nous	-
37	410490		Spring, Wire Harness	10	Appelez-nous	-
38	WP694674		Thermostat, Cycling (limit)   (Replaces: 33002567)	10		Immediately	$ 45.46
39	WP33001789		Housing, Blower   (Replaces: 33001789)	10			$ 128.00
40	WP33001762		Fuse, Thermal (w` Bracket)   (Replaces: 33001762)	10		Immediately	$ 49.84
41	307208		Thermistor, Temp. Control	10			$ 41.88
42	Y310632		Screw	10	Appelez-nous	-
43	33002711		Cover, Blower Housing	10	Appelez-nous	-
44	WP33002917		Screw (hex Head)   (Replaces: 33001855)	10		Immediately	$ 6.90
45	33002461		Plug For Spring	10	Appelez-nous	-
46	WP306176		Valve, Gas   (Replaces: 306176)	10			$ 335.71
47	33001735		Pipe & Bracket Assy.	10	Appelez-nous	-
47	33001735		Pipe & Bracket Assy.	21	Appelez-nous	-
47	33003029		Control, Gas Assembly	20	Appelez-nous	-
48	33001735		Pipe & Bracket Assy.	10	Appelez-nous	-
49	WP90767		Screw   (Replaces: 314082)	10		Immediately	$ 7.04
50	902577		Capacitor Assy	11			$ 31.98
51	33002817		Motor Support, Offset	10	Appelez-nous	-
