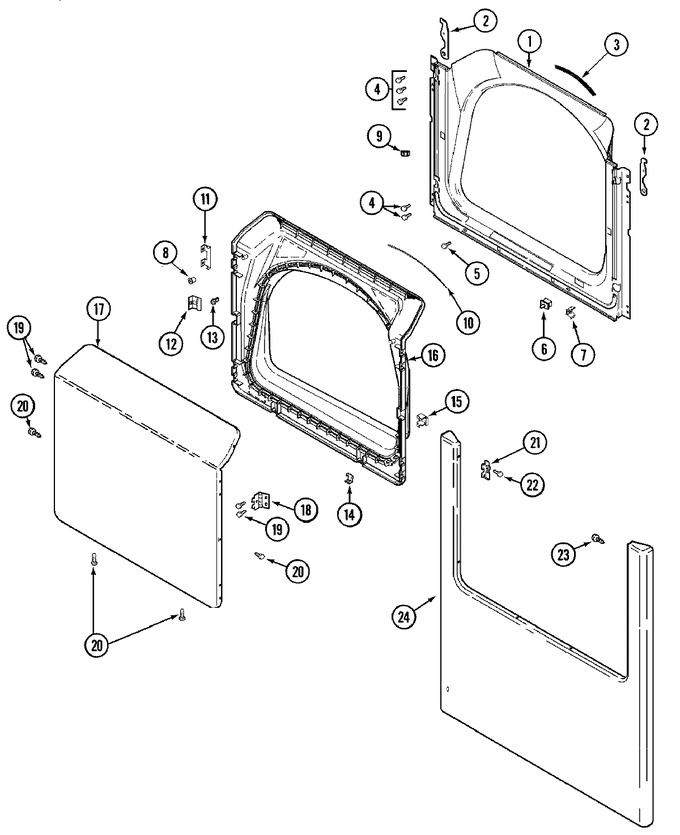

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33002379		Shroud (bsq)	10			$ 67.82
2	33002597		Hook, Security	10			$ 28.59
3	33001767		Seal, Shroud	10			$ 25.05
4	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
5	33001768		Screw, Shroud	10	Appelez-nous	-
6	W10169313		Switch, Door   (Replaces: 33001508)	10		Immediately	$ 29.18
7	33001760		Bracket, Hinge	10	Appelez-nous	-
8	33001771		Bushing, Inner Door	10	Appelez-nous	-
9	LA-1003		Catch, Door (female)   (Replaces: Y304578)	10		Immediately	$ 24.51
9	306436		Catch, Door (w/plug)   (Replaces: 33001791)	10		Immediately	$ 10.17
10	WP33002094		Seal, Door   (Replaces: 33002094)	10		Immediately	$ 113.69
11	22002038		Clip, Door (double)	10	Appelez-nous	-
12	WP33001793		Bracket, Strike   (Replaces: 33001793)	10			$ 7.43
13	33001761		Strike, Door (male)	10			$ 5.84
14	22002039		Clip, Door (single)	10			$ 8.15
15	33001763		Plug, Inner Door	10			$ 6.90
16	33002397		Door, Inner/ W Seal (bsq)	10	Appelez-nous	-
16	22002039		Clip, Door (single)	10			$ 8.15
16	33002351		Screw (no.8-18 Outer Door (bsq)	10	Appelez-nous	-
17	33002787		Outer Door As-pack (bsq)	10	Appelez-nous	-
17	22001817		Sheet, Sound Damper (ft. Pnl)	10			$ 22.19
18	WP33001759		Hinge, Door   (Replaces: 33001759)	10			$ 69.86
19	WP98006631		Screw   (Replaces: 22002062)	10			$ 6.26
20	33002351		Screw (no.8-18 Outer Door (bsq)	10	Appelez-nous	-
21	33002349		Cover, Hinge Hole (bsq)	10			$ 5.51
22	WP33001787		Screw, Hinge   (Replaces: 33001787)	10			$ 10.45
23	22002012		Screw, Hinge	10			$ 5.48
24	22002663		Panel, Front (bsq)	10	Appelez-nous	-
