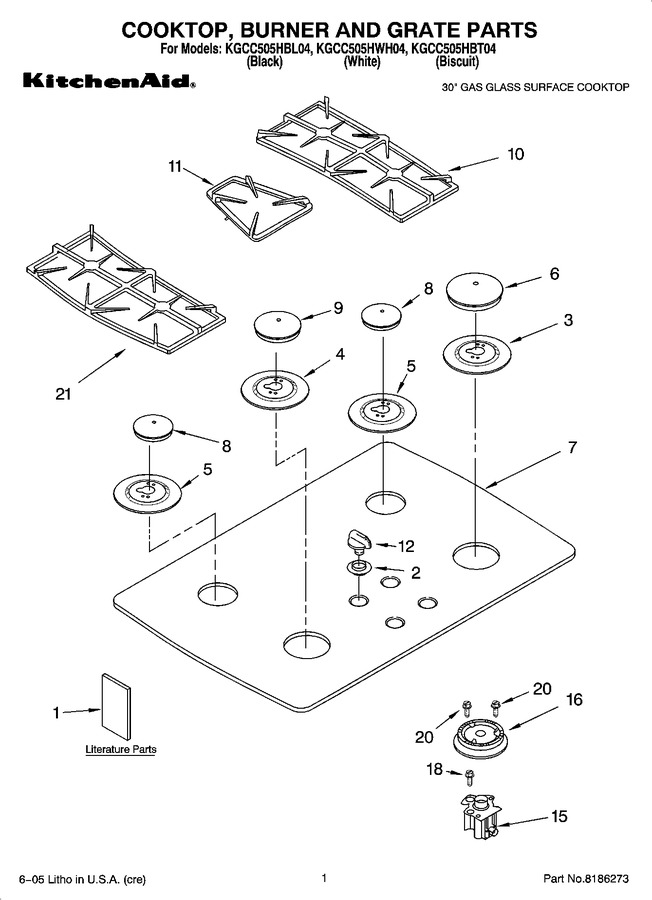

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3192098 | Wiring Diagram |
|
- | |||||
| 1 | 9759133 | Safecooking Tips |
|
- | |||||
| 1 | 4455834 | Installation Instructions |
|
- | |||||
| 1 | 4456479 | Use & Care Guide |
|
- | |||||
| 1 | 9759440 | Conversion Instructions |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 2 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 2 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 2 | 3191817 | Grommet, Glass (biscuit) |
|
- | |||||
| 3 | 9753601GS | Bezel, Cooktop (rf) (mouse Gray) |
|
- | |||||
| 3 | 9753601GB | Bezel, Cooktop (rf) (black) |
|
- | |||||
| 4 | 9753600GS | Bezel, Cooktop (lf) (mouse Gray) |
|
- | |||||
| 4 | 9753600GB | Bezel, Cooktop (lf) (black) |
|
- | |||||
| 5 | 9753602GS | Bezel, Cooktop (lr, Rr) (mouse Gray) |
|
- | |||||
| 5 | 9753602GB | Bezel, Cooktop (lr, Rr) (black) |
|
- | |||||
| 6 | 3191728 | Cap, (rf) (black) |
|
$ 33.65 | |||||
| 6 | 3191730 | Cap, (rf) (moleskin) |
|
- | |||||
| 6 | 3191729 | Cap, (rf) (mouse Gray) |
|
- | |||||
| 7 | 4455580 | Cooktop, Glass (honeycomb) |
|
- | |||||
| 7 | 4455579 | Cooktop, Glass (white) |
|
- | |||||
| 7 | 4455577 | Cooktop, Glass (black) |
|
- | |||||
| 7 | 3191933 | Cooktop, Glass (seal, Foam) |
|
$ 29.81 | |||||
| 8 | 3191734 | Cap, (rr) (lr) (black) |
|
$ 41.09 | |||||
| 8 | 3191735 | Cap, (rr) (lr) (mouse Gray) |
|
$ 43.51 | |||||
| 8 | 3191736 | Cap, (rr) (lr) (moleskin) |
|
- | |||||
| 9 | 3191737 | Cap, (lf) (black) |
|
$ 44.65 | |||||
| 9 | 3191739 | Cap, (lf) (moleskin) |
|
- | |||||
| 9 | 3191738 | Cap, (lf) (mouse Gray) |
|
- | |||||
| 10 | 9759489 | Grate, Burner Rh (black) |
|
- | |||||
| 10 | 9759490 | Grate, Burner Rh (mouse Gray) |
|
- | |||||
| 10 | 9759491 | Grate, Burner Rh (moleskin) |
|
- | |||||
| 11 | 9759493 | Grate, Filler (mouse Gray) |
|
- | |||||
| 11 | 9759494 | Grate, Filler (moleskin) |
|
- | |||||
| 11 | 9759492 | Grate, Filler (black) |
|
- | |||||
| 12 | 3191923 | Knob, Control (4) (white) |
|
$ 5.84 | |||||
| 12 | 3191925 | Knob, Control (4) (biscuit) |
|
$ 12.21 | |||||
| 12 | WP3191922 | Knob, Control (4) (black) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 15 | WPW10128448 | Holder, Orifice (rr - 12k (rapid)) (Replaces: 4456621) |
|
Immediately | $ 100.54 | ||||
| 15 | WPW10155785 | Holder, Orifice (lf - 14k (turbi)) (Replaces: 4456619) |
|
$ 102.43 | |||||
| 15 | 4456623 | Holder, Orifice (lr-9k (semi-rapid)) |
|
- | |||||
| 16 | 4455849 | Head, Burner ((lf)) |
|
$ 47.68 | |||||
| 16 | 4455979 | Head, Burner (rf - 6k (auxi)) |
|
$ 28.52 | |||||
| 16 | WP4455981 | Head, Burner (lr-rr 12k (rapid)) (Replaces: 4455981) |
|
Immediately | $ 78.77 | ||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 21 | 9759487 | Grate, Burner Lh (mouse Gray) |
|
- | |||||
| 21 | 9759488 | Grate, Burner Lh (moleskin) |
|
- | |||||
| 21 | 9759486 | Grate, Burner Lh (black) |
|
- |
