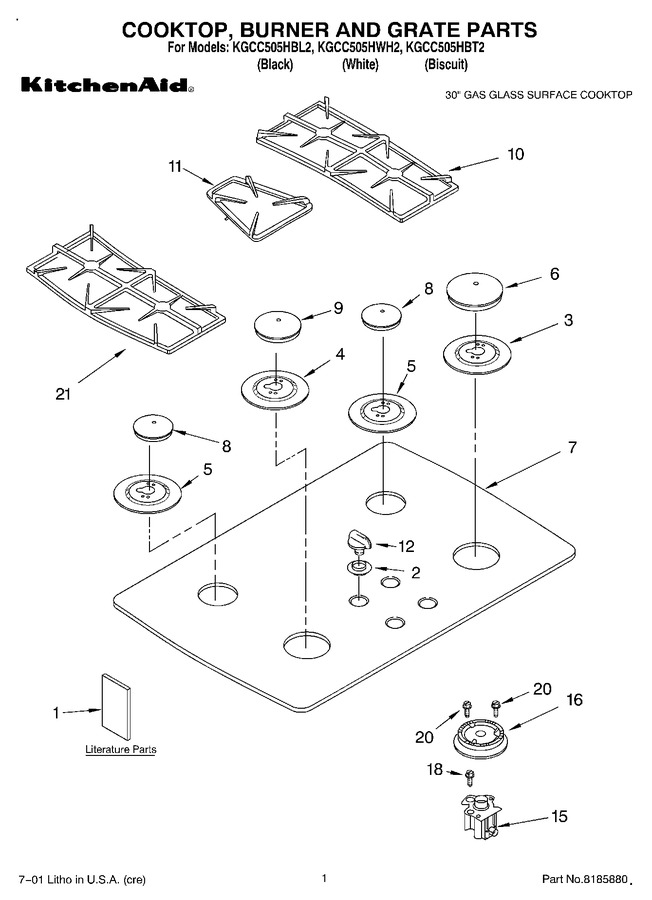

01 - Section
02 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3193071 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | 3192742 | Conversion Instructions |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips |
|
- | |||||
| 1 | LIT4455834 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3192098 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 2 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 2 | 3191817 | Grommet, Glass (biscuit) |
|
- | |||||
| 3 | 9753601GS | Bezel, Cooktop (rf) (mouse Gray) |
|
- | |||||
| 3 | 9753601GB | Bezel, Cooktop (rf) (black) |
|
- | |||||
| 4 | 9753600GS | Bezel, Cooktop (lf) (mouse Gray) |
|
- | |||||
| 4 | 9753600GB | Bezel, Cooktop (lf) (black) |
|
- | |||||
| 5 | 9753602GS | Bezel, Cooktop (lr, Rr) (mouse Gray) |
|
- | |||||
| 5 | 9753602GB | Bezel, Cooktop (lr, Rr) (black) |
|
- | |||||
| 6 | 3191729 | Cap, (rf) (mouse Gray) |
|
- | |||||
| 6 | 3191730 | Cap, (rf) (moleskin) |
|
- | |||||
| 6 | 3191728 | Cap, (rf) (black) |
|
$ 33.65 | |||||
| 7 | 4455579 | Cooktop, Glass (white) |
|
- | |||||
| 7 | 4455577 | Cooktop, Glass (black) |
|
- | |||||
| 7 | 4455580 | Cooktop, Glass (honeycomb) |
|
- | |||||
| 8 | 3191736 | Cap, (rr) (lr) (moleskin) |
|
- | |||||
| 8 | 3191735 | Cap, (rr) (lr) (mouse Gray) |
|
$ 43.51 | |||||
| 8 | 3191734 | Cap, (rr) (lr) (black) |
|
$ 41.09 | |||||
| 9 | 3191737 | Cap, (lf) (black) |
|
$ 44.65 | |||||
| 9 | 3191738 | Cap, (lf) (mouse Gray) |
|
- | |||||
| 9 | 3191739 | Cap, (lf) (moleskin) |
|
- | |||||
| 10 | 3193016 | Grate, Burner Rh (black) |
|
- | |||||
| 10 | 3193017 | Grate, Burner Rh (mouse Gray) |
|
- | |||||
| 10 | 3193018 | Grate, Burner Rh (moleskin) |
|
- | |||||
| 11 | 3193020 | Grate, Filler (mouse Gray) |
|
- | |||||
| 11 | 3193019 | Grate, Filler (black) |
|
- | |||||
| 11 | 3193021 | Grate, Filler (moleskin) |
|
- | |||||
| 12 | 3191923 | Knob, Control (4) (white) |
|
$ 5.84 | |||||
| 12 | 3191925 | Knob, Control (4) (biscuit) |
|
$ 12.21 | |||||
| 12 | WP3191922 | Knob, Control (4) (black) (Replaces: 3191922) |
|
Immediately | $ 6.47 | ||||
| 15 | 9754182 | Holder, Orifice (rf - 6k) |
|
- | |||||
| 15 | 9754194 | Holder, Orifice (lr - 9k) |
|
- | |||||
| 15 | 9754188 | Holder, Orifice (lf - 14k) |
|
$ 48.21 | |||||
| 15 | 9754187 | Holder, Orifice (rr - 12k) |
|
- | |||||
| 16 | WP4455981 | Head, Burner (lr - Rr) (Replaces: 8273214) |
|
Immediately | $ 78.77 | ||||
| 16 | 8273216 | Head, Burner (rf) |
|
- | |||||
| 16 | 4455849 | Head, Burner ((lf)) |
|
$ 47.68 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 20 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 21 | 3193013 | Grate, Burner Lh (black) |
|
- | |||||
| 21 | 3193014 | Grate, Burner Lh (mouse Gray) |
|
- | |||||
| 21 | 3193015 | Grate, Burner Lh (moleskin) |
|
- |
