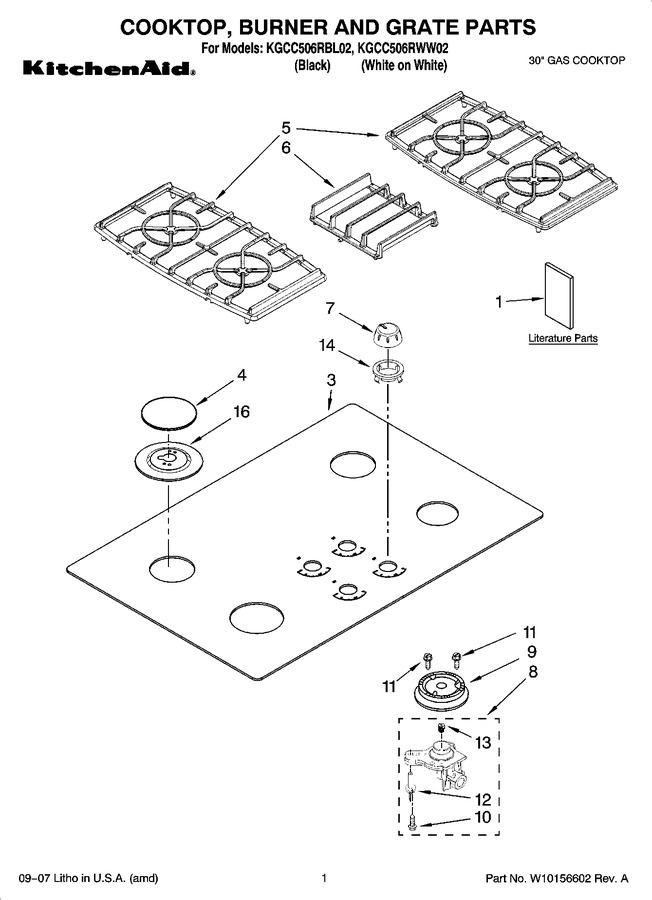

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286620 | Lp Gas Conversion Instructions |
|
- | |||||
| 1 | 8304571 | Undercounter Installation |
|
- | |||||
| 1 | W10086190 | Use & Care Guide |
|
- | |||||
| 1 | W10131955 | Installation Instructions |
|
- | |||||
| 1 | 3191638 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safe Cooking Tips (french) |
|
- | |||||
| 3 | W10564558 | Cooktop (black) (Replaces: 8286169) |
|
$ 767.08 | |||||
| 3 | 8286171 | Cooktop (white) |
|
- | |||||
| 4 | WP8286156CB | Burner Caps Black (lf) (Replaces: 8286156CB) |
|
$ 106.95 | |||||
| 4 | WP8286155CG | Burner Caps White (rf) (Replaces: 8286155CG) |
|
$ 89.27 | |||||
| 4 | WP8286154CG | Burner Caps White (lr) (Replaces: 8286154CG) |
|
$ 86.04 | |||||
| 4 | WP8286153CG | Burner Caps White (rr) (Replaces: 8286153CG) |
|
$ 72.00 | |||||
| 4 | WP8286155CB | Burner Caps Black (rf) (Replaces: 8286155CB) |
|
$ 104.70 | |||||
| 4 | WP8286153CB | Burner Caps Black (rr) (Replaces: 8286153CB) |
|
$ 61.97 | |||||
| 4 | WP8286154CB | Burner Caps Black (lr) (Replaces: 8286154CB) |
|
$ 77.94 | |||||
| 4 | 8286156CG | Burner Caps White (lf) |
|
$ 114.65 | |||||
| 5 | W11242860 | Grate, Burner (white) (Replaces: 8285879CG) |
|
$ 233.74 | |||||
| 5 | W11502175 | Grate, Burner (black) (Replaces: 8285879CB) |
|
$ 218.02 | |||||
| 6 | W11242862 | Grate, Center (black) (Replaces: 8285880CB) |
|
$ 164.56 | |||||
| 6 | W11242858 | Grate, Center (white) (Replaces: 8285880CG) |
|
$ 257.16 | |||||
| 7 | WP8286094BL | Knob, Control (black) (Replaces: 8286094BL) |
|
Immediately | $ 25.33 | ||||
| 7 | 8286094WH | Knob, Control (white) |
|
$ 28.67 | |||||
| 8 | 8287052 | Holder, Orifice (rf) |
|
$ 45.10 | |||||
| 8 | WPW10128450 | Holder, Orifice (lr) (Replaces: W10128450) |
|
$ 106.59 | |||||
| 8 | WPW10128448 | Holder, Orifice (rr) (Replaces: W10128448) |
|
Immediately | $ 100.54 | ||||
| 8 | WPW10128445 | Holder, Orifice (lf) (Replaces: W10128445) |
|
$ 102.09 | |||||
| 9 | WPW10406878 | Head, Burner (lf) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 9 | WPW10406283 | Head, Burner (lr) (Replaces: 8286184) |
|
$ 66.87 | |||||
| 9 | WPW10406243 | Head, Burner (rr) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 9 | WPW10406797 | Head, Burner (rf) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 11 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 12 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 13 | 8286474 | Orifice (lf) |
|
$ 81.03 | |||||
| 13 | 8286551 | Orifice (rf) |
|
$ 89.96 | |||||
| 13 | WP3192529 | Orifice (rr) (Replaces: 3192529) |
|
$ 86.35 | |||||
| 13 | WP3192523 | Orifice (lr) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 14 | W10854242 | Grommet, Glass (black) (Replaces: 3180079) |
|
Immediately | $ 7.58 | ||||
| 14 | WP3180081 | Grommet, Glass (white) (Replaces: 3180081) |
|
$ 7.40 | |||||
| 16 | 8285779CG | Bezel White (lf) |
|
$ 111.78 | |||||
| 16 | 9753601BL | Bezel Black (rr) |
|
$ 28.59 | |||||
| 16 | 9753602BL | Bezel Black (lr, Rf) |
|
$ 59.66 | |||||
| 16 | 8285779BL | Bezel Black (lf) |
|
$ 111.57 | |||||
| 16 | 9753601CG | Bezel White (rr) |
|
$ 129.08 | |||||
| 16 | 9753602CG | Bezel White (lr, Rf) |
|
$ 59.90 |
