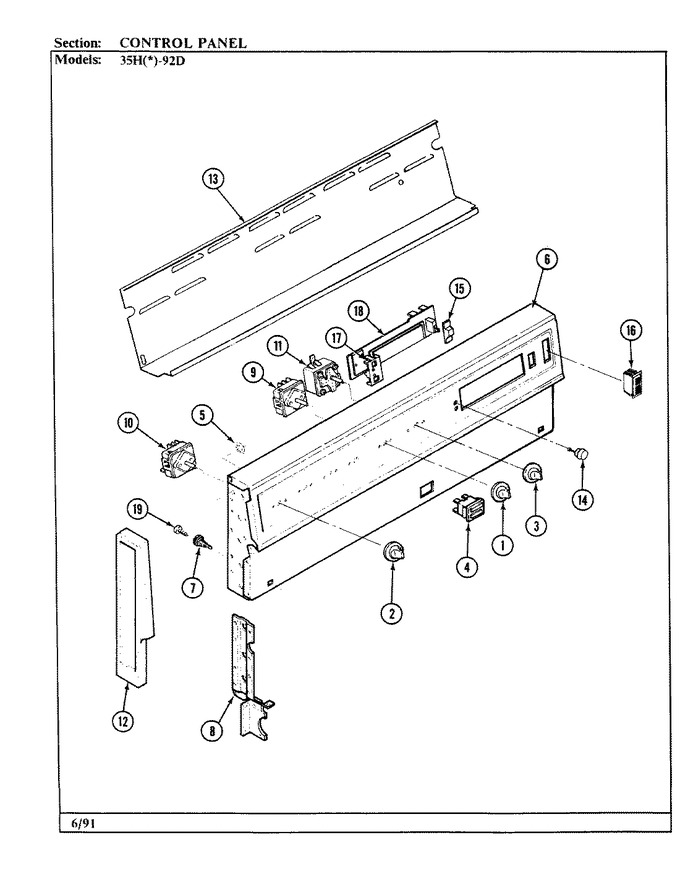

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access
02 - Control Panel
03 - Door
04 - Oven
05 - Top Assy./body
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7739P027-60 | Knob, Therm | 01 |
|
- | ||||
| 2 | 7737P023-60 | Knob | 01 |
|
- | ||||
| 3 | 7737P023-60 | Knob | 01 |
|
- | ||||
| 4 | 7407P068-60 | Light, Signal | 01 |
|
- | ||||
| 5 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 6 | 7703P301-60 | Trim Backguard | 01 |
|
- | ||||
| 6 | 2601W319-74 | Panel, Backguard | 01 |
|
- | ||||
| 7 | 8010P069-60 | Spacer, Hinge (main Top) | 01 |
|
$ 8.57 | ||||
| 8 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 8 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 8 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 9 | 7403P031-60 | Switch, Selector | 01 |
|
- | ||||
| 10 | WP7403P238-60 | Switch, Infinite (1400w) (Replaces: 7403P262-60) | 25 |
|
Immediately | $ 57.78 | |||
| 10 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 10 | W11122006 | Switch, Inf. 250v (Replaces: 7403P181-60) | 01 |
|
$ 145.12 | ||||
| 10 | 7403P263-60 | Switch, Infinite (2400w) | 25 |
|
- | ||||
| 11 | 7404P029-60 | Thermostat | 01 |
|
- | ||||
| 11 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 12 | 7726P021-60 | End Cap, Backguard (rt-chr) | 01 |
|
- | ||||
| 12 | 7703P301-60 | Trim Backguard | 01 |
|
- | ||||
| 12 | 7726P010-60 | End Cap, Backguard (lt-chr) | 01 |
|
- | ||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 13 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 13 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 01 |
|
$ 6.98 | ||||
| 13 | 4005F004-80 | Cover, Bkgd Wire | 01 |
|
- | ||||
| 14 | 7711P440-60 | Button, Push | 01 |
|
- | ||||
| 15 | 7711P443-60 | Button, Slide | 01 |
|
- | ||||
| 16 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P247-60) | 01 |
|
$ 91.35 | ||||
| 17 | 7711P441-60 | Retainer, Button | 01 |
|
- | ||||
| 18 | 8010P078-60 | Spacer, Clock Glass | 01 |
|
- | ||||
| 18 | 7602P099-60 | Clock | 01 |
|
- | ||||
| 18 | 7101P293-60 | Screw | 01 |
|
- | ||||
| 18 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 18 | 7602P104-60 | Clock | 27 |
|
- | ||||
| 19 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 |
