01 - Cooktop, Burner And Grate Parts

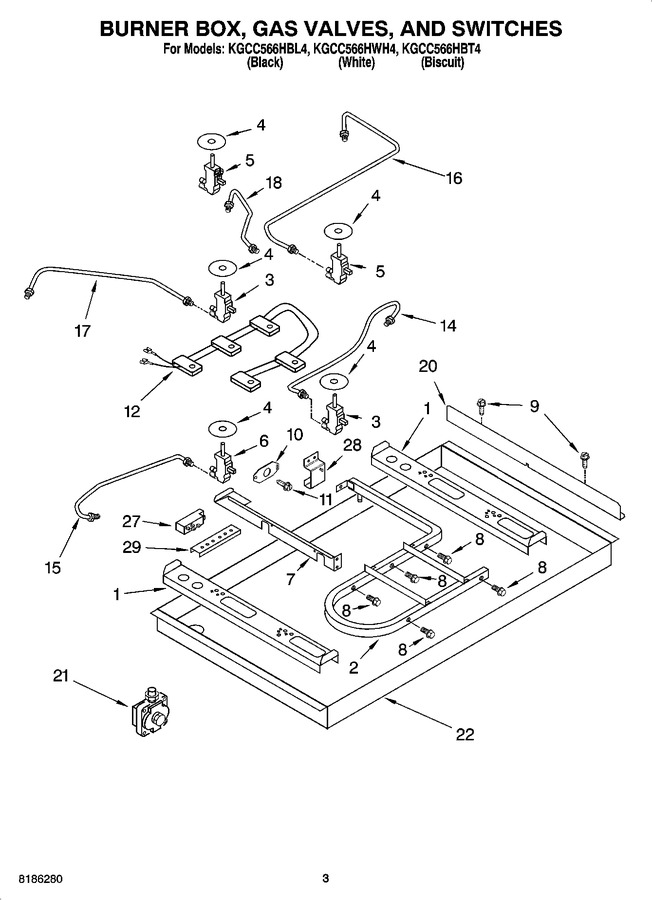

02 - Burner Box, Gas Valves, And Switches, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203756 | Rail, Burner (Replaces: 3191557) |
|
- | |||||
| 2 | 9759357 | Pipe, Manifold |
|
$ 173.36 | |||||
| 3 | WP4456816 | Valve, Gas Burner Burner, (rf) (lr) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 4 | WP3188425 | Seal, Shaft (Replaces: 3191387) |
|
$ 82.61 | |||||
| 5 | WP4456817 | Valve, Gas Burner (rr) (center) (Replaces: 4456817) |
|
$ 286.38 | |||||
| 6 | 4456818 | Valve, Gas Burner (lf) |
|
$ 231.30 | |||||
| 7 | 3192819 | Rail, Center |
|
- | |||||
| 8 | 3186217 | Bolt, Gas Valve |
|
$ 5.53 | |||||
| 9 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 10 | 3192491 | Bracket, Manifold |
|
- | |||||
| 11 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 12 | WP4456901 | Harness & Switches (Replaces: 4456901) |
|
$ 217.02 | |||||
| 14 | 3191324 | Tubing, Gas Burner (rf) |
|
$ 123.70 | |||||
| 15 | 3191326 | Tubing, Gas Burner (lf) |
|
- | |||||
| 16 | 3191325 | Tubing, Gas Burner (rr) |
|
- | |||||
| 17 | 3191327 | Tubing, Gas Burner (lr) |
|
- | |||||
| 18 | 3191332 | Tubing, Gas Burner (center) |
|
- | |||||
| 20 | 3191462 | Shield, Heat |
|
- | |||||
| 21 | 4454571 | Regulator, Pressure |
|
$ 108.68 | |||||
| 22 | 4456998 | Burner Box |
|
- | |||||
| 27 | WPW10110486 | Module, Spark (Replaces: 8522424) |
|
$ 285.33 | |||||
| 28 | 3192613 | Bracket, Mounting |
|
- | |||||
| 29 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 29 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.47 | |||||
| W10392007 | Cord, Power (Replaces: 3192231) |
|
$ 96.25 | ||||||
| 3191933 | Seal, Foam-cooktop |
|
$ 29.81 | ||||||
| 4167077 | Tinnerman Nut |
|
- | ||||||
| 8186533 | Bracket (Replaces: 3183401) |
|
$ 79.60 | ||||||
| 4173634 | Bushing |
|
$ 5.83 | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| 8285402 | Wire, Ground |
|
- | ||||||
| 4456627 | Harness, Ignitor 28`` |
|
$ 189.13 | ||||||
| 4456626 | Harness, Ignitor 15`` (2) |
|
$ 66.34 | ||||||
| WP3192741 | Conversion Kit Natural Gas To L.p. (Replaces: 3192741) |
|
$ 41.81 | ||||||
| 3188310 | Hardware, Mounting |
|
- |
