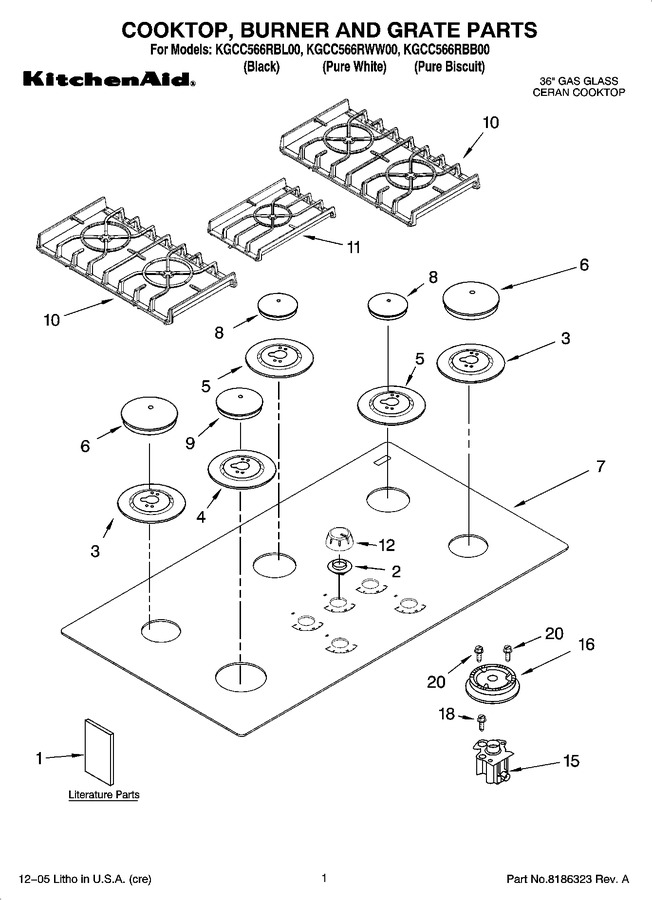

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3192099		Wiring Diagram		Appelez-nous	-
1	8286314		Lp Conversion Instructions		Appelez-nous	-
1	8286304		Installation Instructions		Appelez-nous	-
1	8286305		Use & Care Guide		Appelez-nous	-
1	9759133		Safecooking Tips		Appelez-nous	-
2	WP3180081		Grommet, Glass (white)   (Replaces: 3180081)				$ 7.40
2	W10854242		Grommet, Glass (black)   (Replaces: 3180079)			Immediately	$ 7.58
2	3191817		Grommet, Glass (biscuit)		Appelez-nous	-
3	9753602CG		Bezel, Cooktop (rf) (lr) (cumberland Grey)				$ 59.90
3	9753602BL		Bezel, Cooktop (rf) (lr) (black)				$ 59.66
3	9753602MS		Bezel, Cooktop (rf) (lr) (moleskin)		Appelez-nous	-
4	8285779CG		Bezel, Cooktop (lf) (cumberland Grey)				$ 111.78
4	8285779BL		Bezel, Cooktop (lf) (black)				$ 111.57
4	8285779MS		Bezel, Cooktop (lf) (moleskin)		Appelez-nous	-
5	9753601BL		Bezel, Cooktop (rr) (center) (black)				$ 28.59
5	9753601MS		Bezel, Cooktop (rr) (center) (moleskin)		Appelez-nous	-
5	9753601CG		Bezel, Cooktop (rr) (center) (cumberland Grey)				$ 129.08
6	WP8286155CG		Cap, (rf) (lr) (cumberland Grey)   (Replaces: 8286155CG)				$ 89.27
6	8286155MS		Cap, (rf) (lr) (moleskin)		Appelez-nous	-
6	WP8286155CB		Cap, (rf) (lr) (black)   (Replaces: 8286155BL)				$ 104.70
7	8286173		Cooktop Glass (biscuit)		Appelez-nous	-
7	W10661512		Cooktop Glass (white)   (Replaces: 8286174)		Appelez-nous	-
7	W10661511		Cooktop Glass (black)   (Replaces: 8286172)		Appelez-nous	-
8	8286153MS		Cap, (rr) (center) (moleskin)		Appelez-nous	-
8	WP8286153CG		Cap, (rr) (center) (cumberland Grey)   (Replaces: 8286153CG)				$ 72.00
8	WP8286153CB		Cap, (rr) (center) (black)   (Replaces: 8286153BL)				$ 61.97
9	8286156MS		Cap, (lf) (moleskin)		Appelez-nous	-
9	WP8286156CB		Cap, (lf) (black)   (Replaces: 8286156BL)				$ 106.95
9	8286156CG		Cap, (lf) (cumberland Grey)				$ 114.65
10	W11502175		Grate, Burner (black)   (Replaces: 8285879BL)				$ 218.02
10	W11242860		Grate, Burner (cumberland Grey)   (Replaces: 8285879CG)				$ 233.74
10	8285879MS		Grate, Burner (moleskin)		Appelez-nous	-
11	8285881CG		Grate, Center (cumberland Grey)		Appelez-nous	-
11	W11242859		Grate, Center (black)   (Replaces: 8285881BL)				$ 221.82
11	8285881MS		Grate, Center (moleskin)		Appelez-nous	-
12	8286094WH		Knob, Control (4) (white)				$ 28.67
12	8286094BT		Knob, Control (4) (biscuit)				$ 9.47
12	WP8286094BL		Knob, Control (4) (black)   (Replaces: 8286094BL)			Immediately	$ 25.33
15	WPW10128450		Holder, Orifice (semi Rapid)   (Replaces: 8286241)				$ 106.59
15	WPW10128448		Holder, Orifice (auxi)   (Replaces: 8286179)			Immediately	$ 100.54
15	WPW10128445		Holder, Orifice (ultra Rapid)   (Replaces: 8286177)				$ 102.09
15	WPW10128451		Holder, Orifice (rapid)   (Replaces: 8286180)				$ 99.80
16	WPW10406797		Head, Burner (rapid)   (Replaces: 8286182)				$ 79.64
16	WPW10406243		Head, Burner (auxi)   (Replaces: 8286181)			Immediately	$ 33.50
16	WPW10406878		Head, Burner (ultra Rapid)   (Replaces: 8286183)			Immediately	$ 92.12
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
