SELECT A DIAGRAM

01 - Cover


02 - P17u0020 Dry Cab,drm,htr

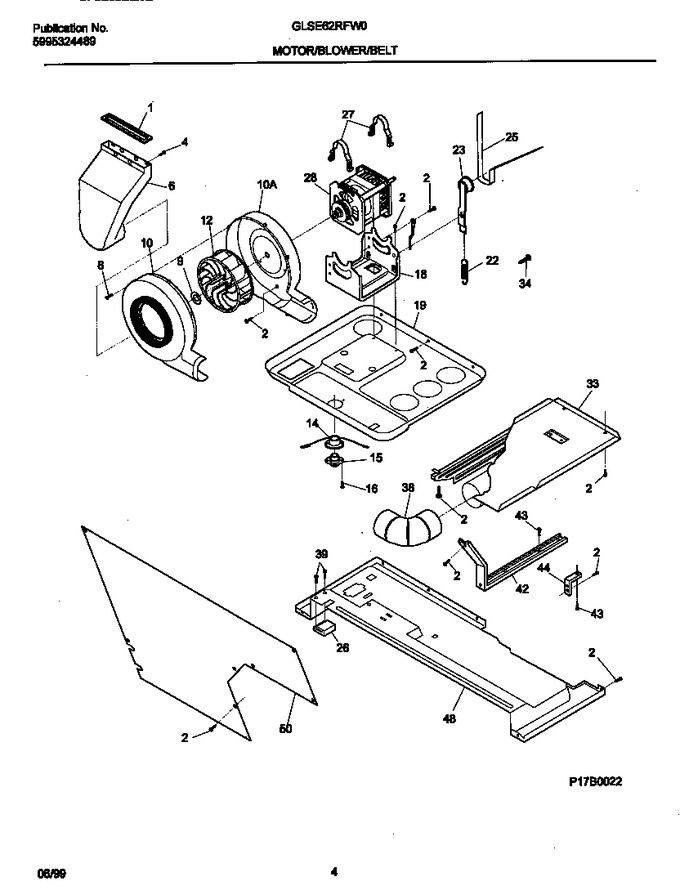

03 - P17b0022 Dry Mtr,belt


04 - P17c0045 Control Panel


05 - P17r0010 Wshr Cab,top


06 - P17t0033 Wshr Mtr,hose


07 - P17m0009 Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 16.30
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
4	131362400		Fastener				$ 9.41
6	5304521121		Duct-air   (Replaces: 131730500)				$ 118.56
8	3205245		Screw-blower Hsg, Pph Ab St/z/ch, 6-18 X .60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	131575200		Housing-blower, Rear		Appelez-nous	-
10	5304485558		Asmy,frt Blw Hsg/seal   (Replaces: 131784500)			Immediately	$ 141.75
12	131476300		Wheel-blower			Immediately	$ 47.00
14	131658100		Thermostat-heater				$ 87.62
15	3204307		Thermostat-control				$ 136.79
16	3204308		Screw-thermostat, Pph Cup Pt, 8-18 X .625		Appelez-nous	-
18	131413600		Cradle & Stud				$ 104.30
19	131363901		Pan-motor Cradle		Appelez-nous	-
22	3205241		Spring-idler				$ 75.83
23	131827000		Asmy-idler & Pulley		Appelez-nous	-
25	137292700		Belt-dryer   (Replaces: 5303283287)			Immediately	$ 9.34
26	5303212870		Block-support		Appelez-nous	-
27	131419800		Clamp-motor				$ 8.18
28	5303937189		Motor & Pulley   (Replaces: 131542900)			Immediately	$ 294.28
33	131731400		Shield-access		Appelez-nous	-
34	131205300		Screw-door,10-16x.75			Immediately	$ 12.10
38	3204320		Elbow-exhaust		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
42	3204324		Bracket-marriage		Appelez-nous	-
43	131751500		Screw 12-24 X .63 Hex Hd				$ 9.50
44	3204326		Bracket-external				$ 43.24
48	131731300		Pan-bottom		Appelez-nous	-
50	3204329		Cover-safety				$ 40.16
*29880	131453000		Bushing-drain Hose				$ 10.63
*29881	5303208586		Screw-term Blk (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
