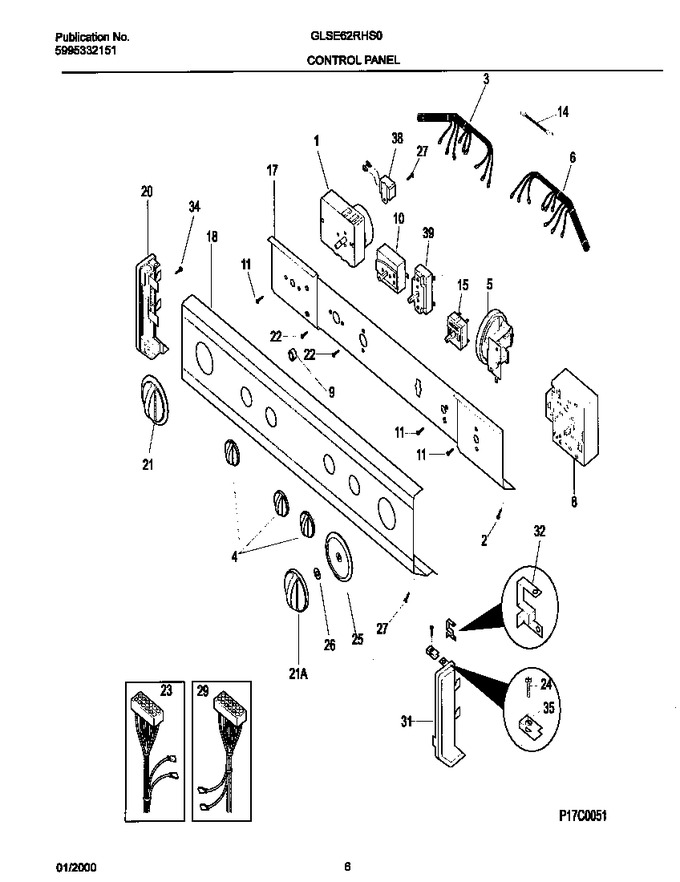

04 - P17c0051 Control Panel


05 - P17r0010 Wshr Cab,top


06 - P17t0039 Wshr Mtr,hose


07 - P17m0010 Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303297177		Timer - Dryer				$ 229.64
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131662500		Harness-dryer, Cont		Appelez-nous	-
4	131858004		Knob-rotary,white   (Replaces: 5303319288)			Immediately	$ 55.29
5	134493500		Switch-pressure   (Replaces: 131692200)				$ 248.69
6	131668500		Harnes-cont Wshr		Appelez-nous	-
8	131437500		Timer-washer				$ 403.39
9	131111501		Button-start Switch,white				$ 13.79
10	131628900		Switch-push Start				$ 55.80
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
14	3205243		Resistor-power, 4.4k		Appelez-nous	-
15	131621100		Switch-water Temp		Appelez-nous	-
17	131712611		Brkt-cont Mtg		Appelez-nous	-
18	131881100		Trimplate Gbl/g8wjss		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	5303211165		Knob-timer,white ,washer		Appelez-nous	-
21	131859104		Knob-timer,white ,dryer   (Replaces: 5303319290)			Immediately	$ 60.72
22	3161259		Screw-switch, 6-32 X .19-2a, (2)				$ 6.83
23	131753200		Harness-dryer Main		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	5303319285		Dial-timer,white ,washer				$ 48.56
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131778800		Harn-lwr Wshr		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
39	131753000		Switch-dryer Temp 4 Pos Rot		Appelez-nous	-
*88682	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
