SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

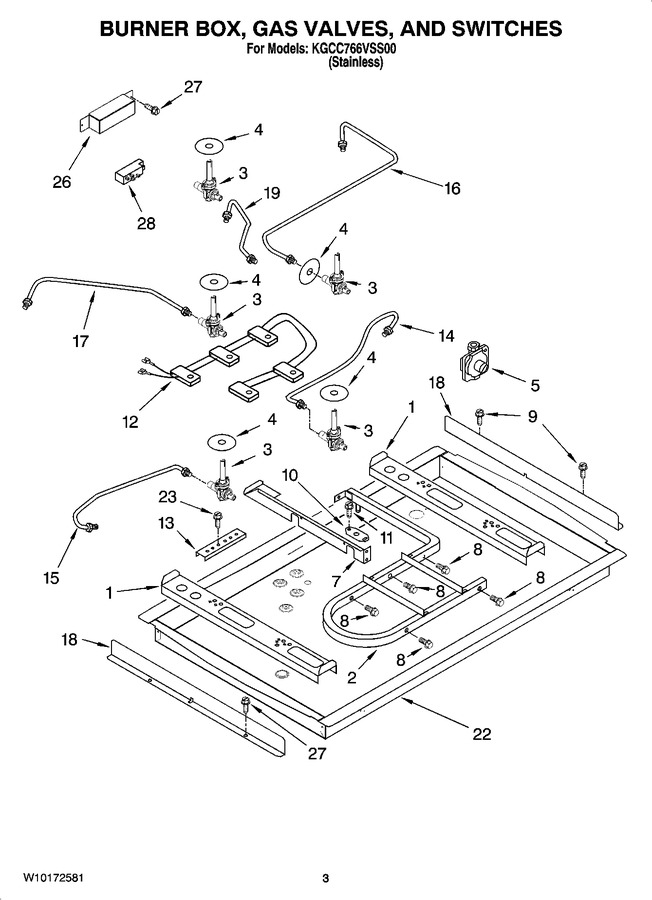

02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8285751		Pipe, Manifold				$ 306.05
3	WP4456817		Valve, Gas Burner (black)   (Replaces: 4456817)				$ 286.38
3	8286560		Valve, Gas Burner (yellow)				$ 123.39
3	8286559		Valve, Gas Burner (white)				$ 123.31
3	8286561		Valve, Gas Burner (orange)				$ 277.50
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 283.08
7	8285791		Rail, Center		Appelez-nous	-
8	8523704		Bolt, Gas Valve		Appelez-nous	-
9	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
10	3192491		Bracket, Mainfold		Appelez-nous	-
11	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
12	WP4456901		Harness & Switches   (Replaces: 4456901)				$ 217.02
13	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
14	8285768		Tubing, Gas Burner (rf)				$ 167.83
15	8285766		Tubing, Gas Burner (lf)				$ 169.65
16	8285767		Tubing, Gas Burner (rr)				$ 178.67
17	8285769		Tubing, Gas Burner (lr)		Appelez-nous	-
18	3191462		Shield, Heat (2)		Appelez-nous	-
19	8285770		Tubing, Gas Burner (cr)				$ 153.93
22	8286565		Burner Box		Appelez-nous	-
23	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
26	8285789		Shield, Heat				$ 154.04
27	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
28	WPW10110486		Module, Spark   (Replaces: 8522424)				$ 285.33
	W10392007		Cord, Power   (Replaces: 9763116)				$ 96.25
	WP8286320		Spud Kit   (Replaces: 8286320)				$ 115.78
	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
	4456627		Harness, Ignitor 28`` (2)				$ 189.13
	8285402		Wire, Ground		Appelez-nous	-
	4456626		Harness, Ignitor 15`` (2)				$ 66.34

    View Diagram in Separate Window       Print Part List
