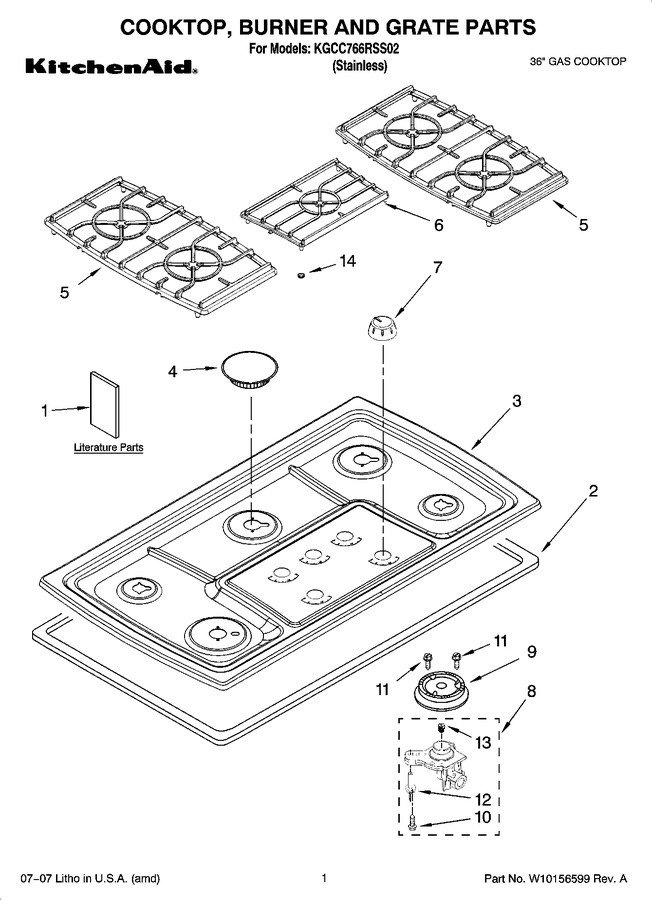

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10086190		Use & Care Guide		Appelez-nous	-
1	3192099		Wiring Diagram		Appelez-nous	-
1	3191638		Safe Cooking Tips (english)		Appelez-nous	-
1	9759133		Safe Cooking Tips (french)		Appelez-nous	-
1	W10131955		Installation Instructions		Appelez-nous	-
2	9760279		Seal, Foam				$ 51.94
3	8285782CC		Cooktop		Appelez-nous	-
4	WP8286156CB		Burner Caps (lf)   (Replaces: 8286156CB)				$ 106.95
4	WP8286153CB		Burner Caps (lr & Rf)   (Replaces: 8286153CB)				$ 61.97
4	WP8286154CB		Burner Caps (ctr)   (Replaces: 8286154CB)				$ 77.94
4	WP8286155CB		Burner Caps (rr)   (Replaces: 8286155CB)				$ 104.70
5	8285876CB		Grate, Burner				$ 99.26
6	8285878CB		Grate, Center				$ 90.67
7	8286094CM		Knob, Control				$ 15.65
8	WPW10128448		Holder, Orifice (lr & Rf)   (Replaces: W10128448)			Immediately	$ 100.54
8	WPW10128445		Holder, Orifice (lf)   (Replaces: W10128445)				$ 102.09
8	WPW10128451		Holder, Orifice (rr)   (Replaces: W10128451)				$ 99.80
8	WPW10128450		Holder, Orifice (ctr)   (Replaces: W10128450)				$ 106.59
9	WPW10406878		Head, Burner (lf)   (Replaces: 8286183)			Immediately	$ 92.12
9	WPW10406797		Head, Burner (rr)   (Replaces: 8286182)				$ 79.64
9	WPW10406283		Head, Burner (ctr)   (Replaces: 8286184)				$ 66.87
9	WPW10406243		Head, Burner (lr & Rf)   (Replaces: 8286181)			Immediately	$ 33.50
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
11	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 6.42
12	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
13	8286551		Orifice (rr)				$ 89.96
13	WP3192529		Orifice (lr & Rf)   (Replaces: 3192529)				$ 86.35
13	8286474		Orifice (lf)				$ 81.03
13	WP3192523		Orifice (ctr)   (Replaces: 3192523)				$ 80.19
14	WP8286452		Grommet, Grate   (Replaces: 8286452)				$ 8.17
