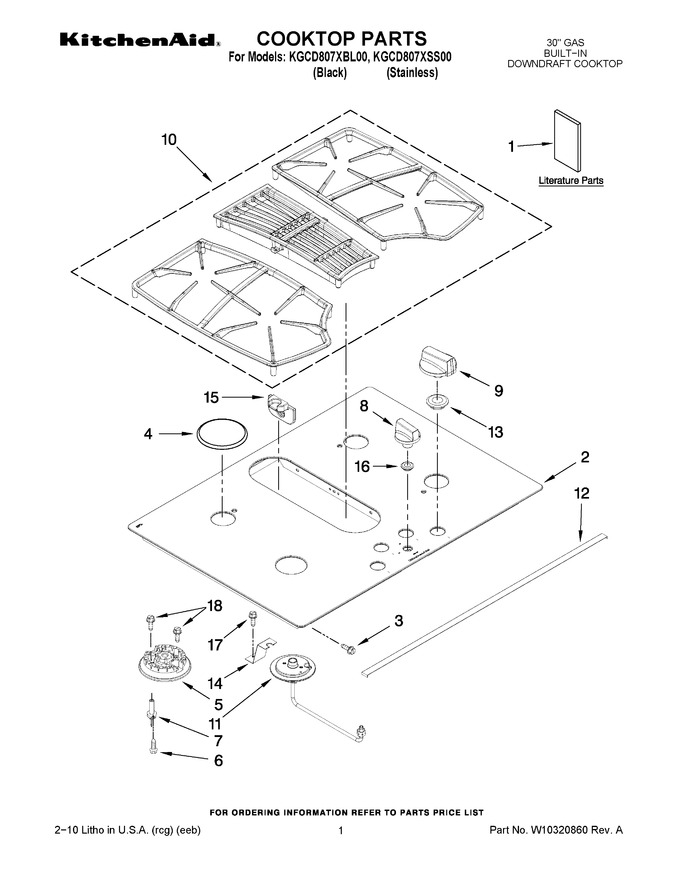

01 - Cooktop Parts
02 - Burner Box Assembly
03 - Blower Unit Parts
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10305290 | Installation Instructions |
|
- | |||||
| 1 | 8119P134-60 | Wiring Diagram |
|
- | |||||
| 1 | W10293056 | Use & Care Guide |
|
- | |||||
| 1 | W10299785 | Instructions Lp Conversion |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | W10296933 | Top, Main |
|
$ 903.77 | |||||
| 3 | WP8273062 | Screw (Replaces: 7101P606-60) |
|
Immediately | $ 7.12 | ||||
| 4 | WP3191898 | Cap, Burner (lf) (Replaces: 7504P136-60) |
|
$ 60.86 | |||||
| 4 | 7504P138-60 | Cap, Burner (rf) |
|
- | |||||
| 4 | WP74007925 | Cap, Burner (lr/rr) (Replaces: 7504P219-60) |
|
$ 86.81 | |||||
| 5 | 7505P339-60 | Burner, Head (lf) |
|
$ 57.66 | |||||
| 5 | 74007736 | Burner, Head (rf) (Replaces: 7505P306-60) |
|
Immediately | $ 105.36 | ||||
| 5 | 74007735 | Burner, Head (lr/rr) (Replaces: 7505P305-60) |
|
Immediately | $ 102.76 | ||||
| 6 | WP8273062 | Screw (Replaces: 7101P606-60) |
|
Immediately | $ 7.12 | ||||
| 7 | WP74009336 | Ignitor, Cooktop (Replaces: 7432P121-60) |
|
Immediately | $ 24.30 | ||||
| 8 | WP7737P245-60 | Knob, Fan (Replaces: 7737P245-60) |
|
Immediately | $ 14.09 | ||||
| 9 | WP7733P410-60 | Knob, Control (Replaces: 7733P410-60) |
|
Immediately | $ 22.35 | ||||
| 10 | 7518P379-60 | Grate (l/r/c) |
|
$ 206.07 | |||||
| 11 | 74010774 | Holder, Orifice (lf) (Replaces: 7527P068-60) |
|
$ 142.61 | |||||
| 11 | W11416836 | Holder, Orifice (lr) (Replaces: 7527P069-60) |
|
$ 95.36 | |||||
| 11 | 7527P066-60 | Holder, Orifice (rf) |
|
- | |||||
| 11 | 74010773 | Holder, Orifice (rr) (Replaces: 7527P067-60) |
|
$ 153.82 | |||||
| 12 | W10298860 | Trim, Stainless (front) |
|
$ 132.20 | |||||
| 12 | W10168883 | Trim, Stainless (rear) |
|
$ 56.79 | |||||
| 13 | WP8008P071-60 | Grommet (Replaces: 8008P071-60) |
|
$ 8.02 | |||||
| 14 | 3801F946-51 | Bracket, Orifice |
|
- | |||||
| 15 | 74010860 | Locator, Grate (Replaces: 8008P075-60) |
|
$ 9.06 | |||||
| 16 | WPW10293874 | Grommet (Replaces: 8008P076-60) |
|
Immediately | $ 7.25 | ||||
| 17 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 18 | WP3368921 | Screw (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 |
