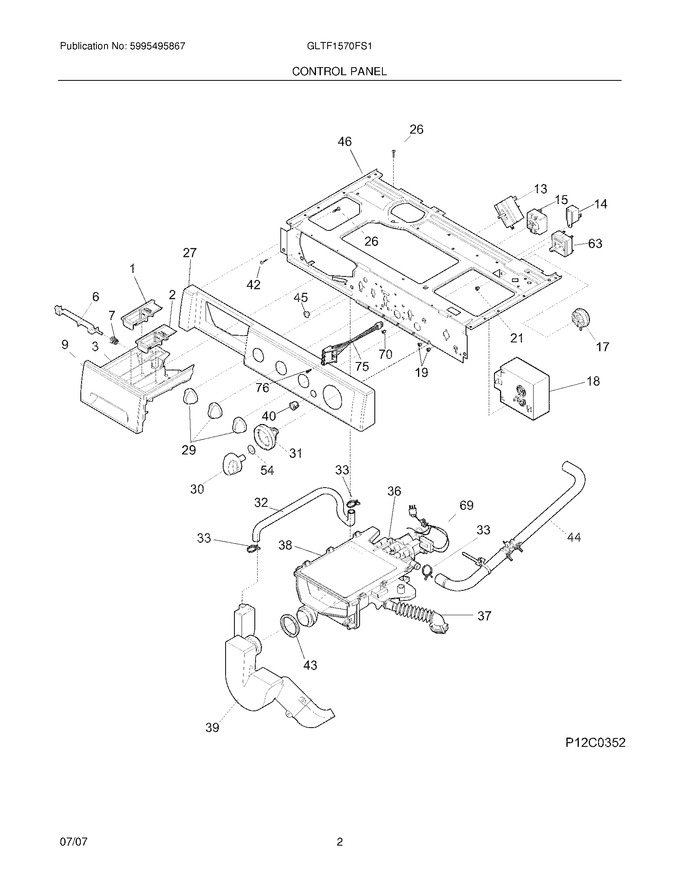

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131272100		Cover-bleach				$ 42.50
2	131272000		Cover-softener				$ 71.66
3	131271910		Drawer,dispenser				$ 52.03
6	131374500		Latch,disp Drawer Hdl				$ 44.45
7	131427500		Spring				$ 14.07
9	131691248		Handle,dispenser ,w/trim				$ 93.14
19	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
21	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
26	131823400		Screw,8-18 X 2.00				$ 1.42
27	131887220		Console,frame/trim Assy				$ 145.22
29	134042700		Knob,rotary ,white				$ 45.31
30	134191800		Knob,timer ,white   (Replaces: 134042400)			Immediately	$ 112.91
31	131853900		Pointer,timer ,white ,gray Indicator			Immediately	$ 121.07
32	131786100		Hose,siphon/valve				$ 66.62
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
37	131271600		Hose-tub				$ 90.01
38	131803710		Dispenser Assy				$ 339.83
39	131863300		Siphon				$ 30.96
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
43	131749200		Gasket-seal				$ 20.33
45	5303321107		Bushing,idler				$ 4.52
46	134191412		Panel,control Mtg. ,wing Bend				$ 168.89
54	5308015493		Spacer,washer ,timer Shaft				$ 14.36
70	134178901		Screw,8-18ab X 0.455				$ 14.89
76	131974500		Screw,pan Head ,6-20ab X 0.750 ,no.8 Comb Head		Appelez-nous	-
F13	134401700		Switch,temp Selector ,7 Position				$ 45.10
F14	131963800		Beeper,signal Switch				$ 151.83
F15	134126800		Switch,option Selector ,2 Position		Appelez-nous	-
F17	134818201		Switch,pressure ,single Level				$ 52.76
F18	134795000		Timer				$ 525.47
F36	131974700		Valve,dispenser ,w/seal			Immediately	$ 104.10
F40	134040800		Switch,on/off ,white ,round				$ 65.92
F44	131899800		Thermistor,w/hose & Clamp		Appelez-nous	-
F63	134175600		Switch,3 Posn Rotary				$ 68.62
F69	134565600		Wiring Harness,main				$ 225.02
F75	131949010		Lamp,status Ind. ,with Bracket				$ 101.33
NI	131307900		Clamp,siphon/bellows				$ 11.34
NI	131931201		Dampener,vibration ,3.5 X 2 X 2 In. ,foam				$ 14.02
