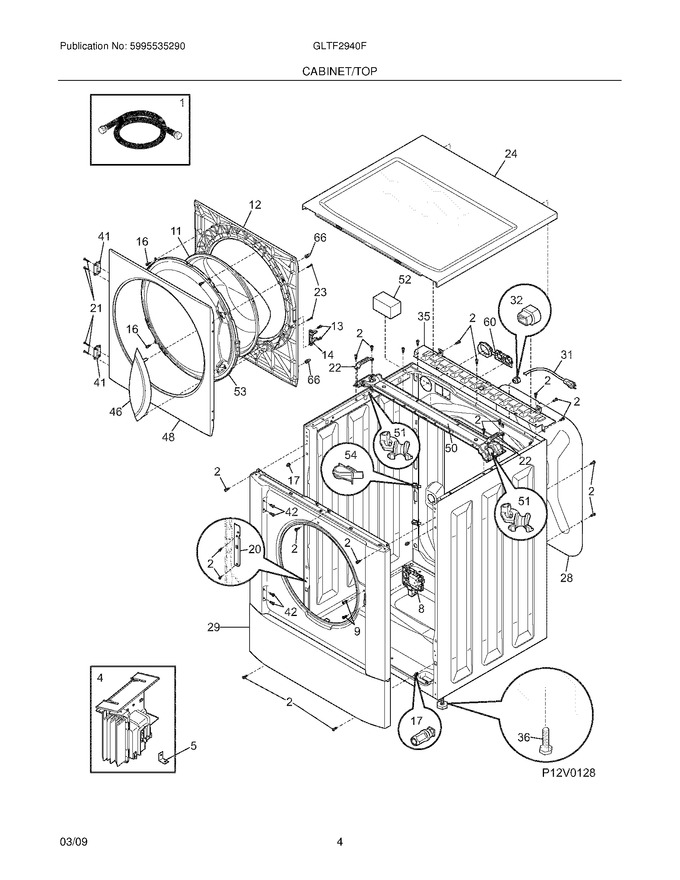

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131454100		Hose,water Inlet ,4 Ft. ,hose & Washer		Appelez-nous	-
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
5	134522900		Bracket,angle ,motor Control				$ 13.01
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
11	134366400		Panel,door Glass				$ 313.91
12	134507360		Panel,inner Door ,with Bumper				$ 160.39
13	131302901		Screw,10-16 X 0.750				$ 4.96
14	131763302		Striker,door/lock   (Replaces: 131763340)			Immediately	$ 35.08
16	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
17	134638700		Clip,assembly		Appelez-nous	-
20	134434901		Bracket,ls Panel ,reinforcement				$ 43.73
21	137361500		Screw,comb Flat Head ,8-18ab X 0.75   (Replaces: 134424700)				$ 7.79
22	134648500		Bracket-spring,retainer				$ 19.69
23	134522100		Screw,no.12 Flat Head ,10-14p ,quad Drive				$ 18.90
24	134365060		Panel,work Top ,black				$ 142.28
28	134364300		Panel,service Access ,rear				$ 54.39
29	137021560		Panel,cabinet Front ,black				$ 254.31
32	5303209428		Bushing,power Cord				$ 17.01
35	134365100		Bracket,top Support ,rear				$ 150.99
36	134548800		Leveling Leg,screw ,plastic			Immediately	$ 30.20
41	134412460		Hinge,door ,black				$ 49.56
42	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
46	134472202		Handle,door				$ 256.04
48	134913160		Panel,outer Door ,black				$ 78.96
50	134645600		Bracket,tub Suspension		Appelez-nous	-
51	134655800		Protector,tub Suspension ,spring Hook ,(2)				$ 4.45
52	131931202		Dampener,vibration ,foam				$ 17.35
53	134507403		Adapter,door Glass Ring				$ 412.97
54	134364900		Fastener,wire Harn Clip		Appelez-nous	-
60	134372000		Grommet,dispenser ,back Panel				$ 30.47
66	134366560		Bumper,door ,black		Appelez-nous	-
F31	5304505407		Power Cord,electric Svce   (Replaces: 134501000)				$ 88.20
F4	134743500		Control Board,motor   (Replaces: 134409904)			Immediately	$ 236.87
F8	131763256		Door Lock/switch Assy   (Replaces: 131763245)			Immediately	$ 146.76
FNI	134547600		Wiring Harness,motor Control				$ 70.09
FNI	134606800		Wiring Harness,door Switch				$ 113.69
NI	134889700		Clip, Hose,drain ,rear-panel				$ 18.38
NI	134178901		Screw,8-18ab X 0.455				$ 14.89
NI	137021600		Bracket,mounting ,left ,front Panel				$ 11.96
NI	137021610		Bracket,mounting ,right ,front Panel				$ 21.60
NI	134591500		Plug Assy,shipping Holes ,back				$ 46.78
NI	134876501		Clip,hose,drain ,rear-panel   (Replaces: 134876500)				$ 19.85
NI	134434900		Bracket,rs Panel ,reinforcement		Appelez-nous	-
