01 - Cooktop, Burner And Grate Parts

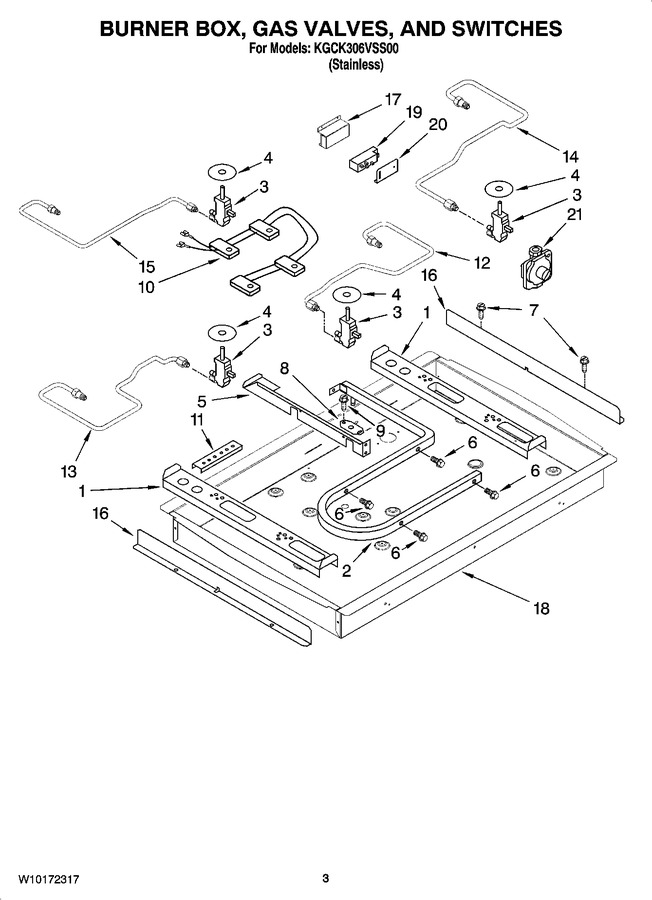

02 - Burner Box, Gas Valves, And Switches, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8286069		Pipe, Manifold				$ 295.39
3	WP4456817		Valve, Gas Burner (black)   (Replaces: 4456817)				$ 286.38
3	8286561		Valve, Gas Burner (orange)				$ 277.50
3	8286560		Valve, Gas Burner (yellow)				$ 123.39
3	8286559		Valve, Gas Burner (white)				$ 123.31
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	8285791		Rail, Center		Appelez-nous	-
6	8523704		Bolt, Gas Valve		Appelez-nous	-
7	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
8	3192491		Bracket, Mainfold		Appelez-nous	-
9	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
10	WP4456905		Harness & Switches   (Replaces: 4456905)			Immediately	$ 176.83
11	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
12	8285793		Tubing, Gas Burner (rf)				$ 162.29
13	8285794		Tubing, Gas Burner (lf)				$ 179.75
14	8285792		Tubing, Gas Burner (rr)				$ 160.65
15	8285795		Tubing, Gas Burner (lr)				$ 158.02
16	3191462		Shield, Heat (2)		Appelez-nous	-
17	8285788		Shield, Heat		Appelez-nous	-
18	9760837		Burner Box		Appelez-nous	-
19	WPW10110491		Module, Spark   (Replaces: 8522423)			Immediately	$ 276.35
20	4455837		Bracket, Spark Module				$ 70.10
21	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 283.08
	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
	W10392007		Cord, Power   (Replaces: 9763116)				$ 96.25
	4456627		Harness, Ignitor 28`` (2)				$ 189.13
	4456626		Harness, Ignitor 15`` (2)				$ 66.34
	8537055		Stainless Cleaner		Appelez-nous	-
	WP8286320		Spud Kit   (Replaces: 8286320)				$ 115.78
	9759145		Bracket, Mounting				$ 26.15
