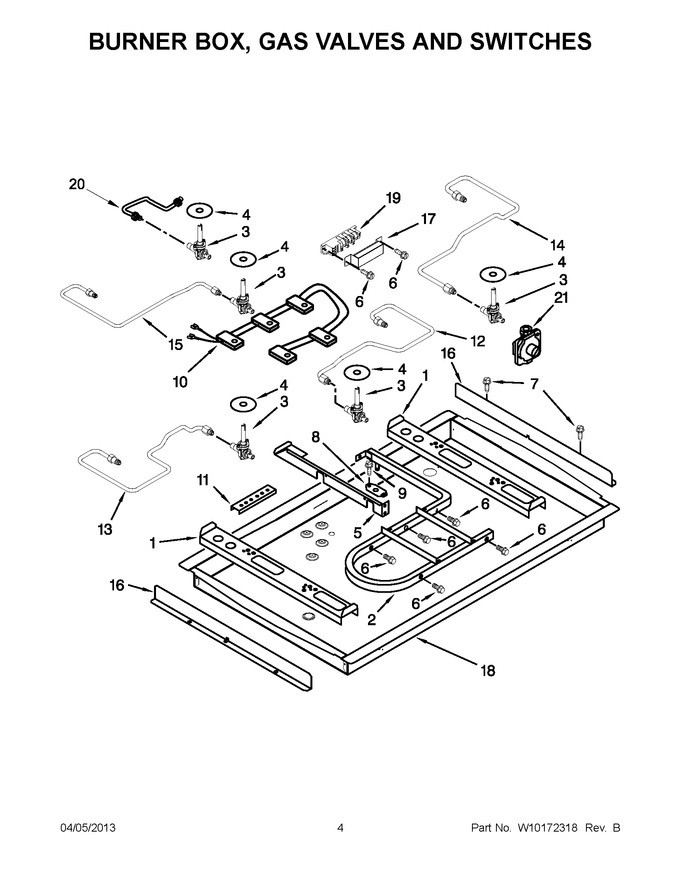

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves And Switches


03 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8285751		Pipe, Manifold				$ 306.05
3	WP4456817		Valve, Gas Burner (center)   (Replaces: 4456817)				$ 286.38
3	8286561		Valve, Gas Burner (left Front)				$ 277.50
3	8286559		Valve, Gas Burner (right Front)				$ 123.31
3	8286560		Valve, Gas Burner (right Rear)				$ 123.39
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 82.61
5	8285791		Rail, Center		Appelez-nous	-
6	8523704		Screw		Appelez-nous	-
7	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
8	3192491		Bracket, Manifold		Appelez-nous	-
9	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
10	WP4456901		Switch Harness   (Replaces: 4456901)				$ 217.02
11	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
12	8285768		Tubing, Gas Burner (right Front)				$ 167.83
13	8285766		Tubing, Gas Burner (left Front)				$ 169.65
14	8285767		Tubing, Gas Burner (right Rear)				$ 178.67
15	8285769		Tubing, Gas Burner (left Rear)		Appelez-nous	-
16	3191462		Shield, Heat		Appelez-nous	-
17	8285789		Shield, Heat				$ 154.04
18	8286565		Box, Burner		Appelez-nous	-
19	WPW10110486		Module, Spark   (Replaces: 8522427)				$ 285.33
20	8285770		Tubing, Gas Burner (center)				$ 153.93
21	W11170853		Regulator, Pressure   (Replaces: W10131956)				$ 283.08

    View Diagram in Separate Window       Print Part List
