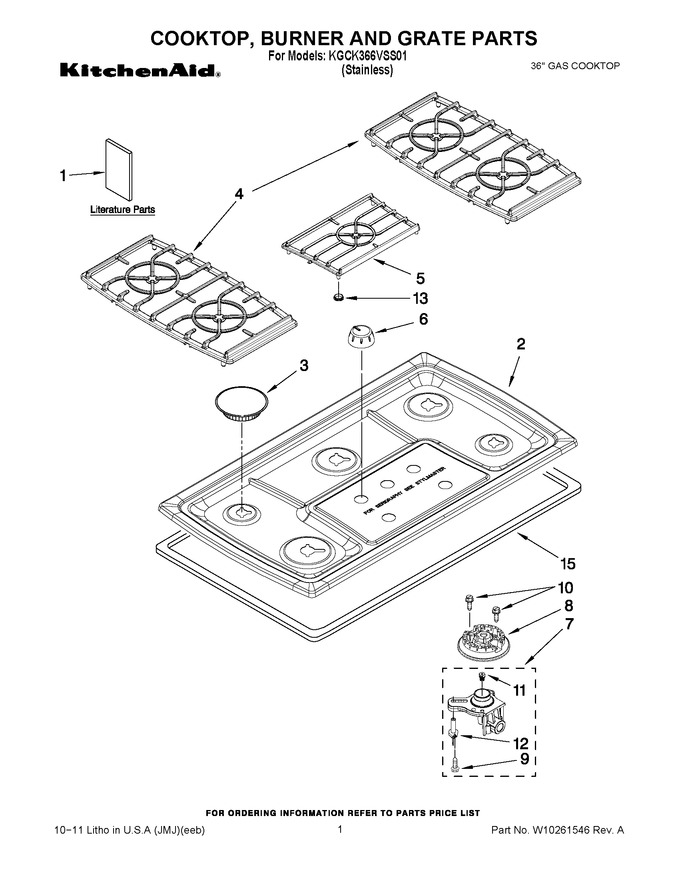

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10131955 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10169072 | Use & Care Guide |
|
- | |||||
| 1 | 8304571 | Undercounter Installation |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 1 | W10169218 | Lp Conversion Instructions |
|
- | |||||
| 2 | W10140186 | Cooktop |
|
- | |||||
| 3 | WP8286154CB | Cap, Burner (center) (Replaces: 8286154CB) |
|
$ 77.94 | |||||
| 3 | WP8286156CB | Cap, Burner (lf) (Replaces: 8286156CB) |
|
$ 106.95 | |||||
| 3 | WP8286155CB | Cap, Burner (rr) (Replaces: 8286155CB) |
|
$ 104.70 | |||||
| 3 | WP8286153CB | Cap, Burner (rf, Lr) (Replaces: 8286153CB) |
|
$ 61.97 | |||||
| 4 | 8285876CB | Grate, Burner |
|
$ 99.26 | |||||
| 5 | 8285878CB | Grate, Center |
|
$ 90.67 | |||||
| 6 | WP8286094BL | Knob, Control (5) (Replaces: 8286094BL) |
|
Immediately | $ 25.33 | ||||
| 7 | WPW10128451 | Holder, Orifice (rr) (Replaces: W10128451) |
|
$ 99.80 | |||||
| 7 | WPW10128448 | Holder, Orifice (rf, Lr) (Replaces: W10128448) |
|
Immediately | $ 100.54 | ||||
| 7 | WPW10128450 | Holder, Orifice (center) (Replaces: W10128450) |
|
$ 106.59 | |||||
| 7 | WPW10128445 | Holder, Orifice (lf) (Replaces: W10128445) |
|
$ 102.09 | |||||
| 8 | WPW10406878 | Head, Burner (lf) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 8 | WPW10406797 | Head, Burner (rr) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 8 | WPW10406283 | Head, Burner (center) (Replaces: 8286184) |
|
$ 66.87 | |||||
| 8 | WPW10406243 | Head, Burner (rf, Lr) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 9 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 10 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 11 | 8286474 | Orifice (lf) |
|
$ 81.03 | |||||
| 11 | 8286551 | Orifice (rr) |
|
$ 89.96 | |||||
| 11 | WP3192529 | Orifice (rf, Lr) (Replaces: 3192529) |
|
$ 86.35 | |||||
| 11 | WP3192523 | Orifice (center) (Replaces: 3192523) |
|
$ 80.19 | |||||
| 12 | WP9782116 | Electrode (Replaces: 9782116) |
|
Immediately | $ 49.45 | ||||
| 13 | WP8286452 | Grommet, Grate (Replaces: 8286452) |
|
$ 8.17 | |||||
| 15 | 9760279 | Seal, Foam |
|
$ 51.94 |
