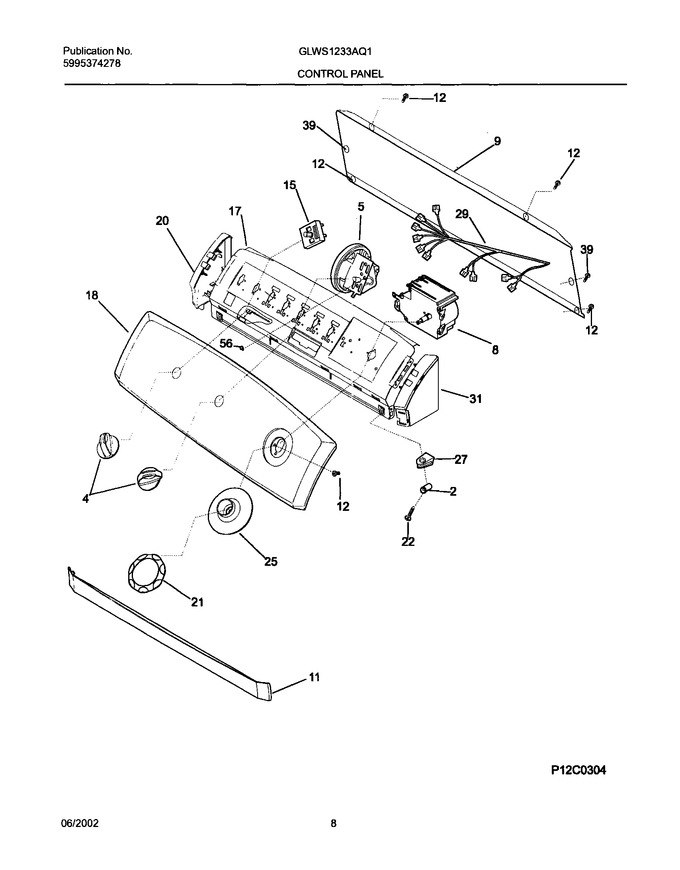

SELECT A DIAGRAM

01 - Cover


03 - Wshr Cab,top


05 - Wshr Mtr,hose


07 - Transmission


09 - Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134096100		Spacer-console Mounting				$ 13.55
4	134034901		Knob-rotary-bsq``z``cons Nw2		Appelez-nous	-
5	131396300		Switch-pressure		Appelez-nous	-
8	134049600		Timer Elec S Mallory Delta				$ 360.19
9	131992910		Backsheet-``z`` Cons-vaw				$ 64.73
11	134019910		Closure-front-bsq``z``console		Appelez-nous	-
12	131168200		Screw,8-18 X 0.31 ,12			Immediately	$ 14.18
15	131047000		Switch-temperature		Appelez-nous	-
17	131993000		Brkt-cont Mtg-``z`` Cons-delta		Appelez-nous	-
18	134161700		Trimplate Fda1srszb-2		Appelez-nous	-
20	134019611		End Cap-lh-bsq``z``console		Appelez-nous	-
21	134035201		Asmy-knb-timer Delta-bsq Nw2		Appelez-nous	-
22	131266300		Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black		Appelez-nous	-
25	134035101		Pntr-tmr-delta Bsq/dk Brn Nw2		Appelez-nous	-
27	131197000		Clip-control Panel				$ 13.62
29	134113500		Harn-vaw-``s``-rot Temp		Appelez-nous	-
31	134019601		End Cap-rh-bsq``z``cons		Appelez-nous	-
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
56	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36

    View Diagram in Separate Window       Print Part List
