01 - Cooktop, Burner And Grate Parts

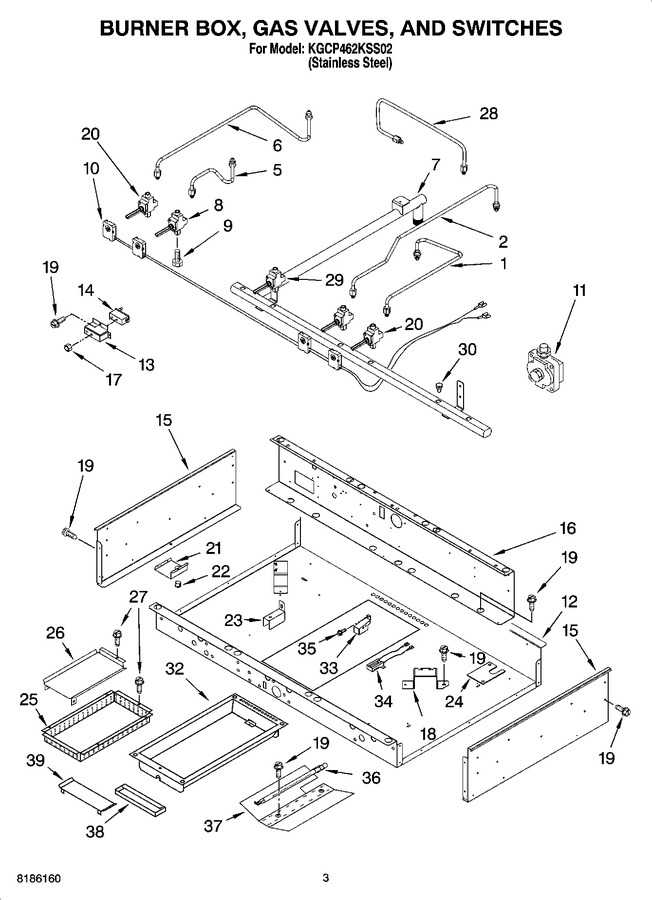

02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455040		Tubing, Gas Burner - Rf		Appelez-nous	-
2	4455041		Tubing, Gas Burner - Rr		Appelez-nous	-
5	4455153		Tubing, Gas Burner - Lf		Appelez-nous	-
6	4455154		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8284749		Manifold (includes Items 9 & 30)		Appelez-nous	-
8	4456818		Valve, Burner (turbo)				$ 231.30
9	8523704		Bolt, Valve		Appelez-nous	-
10	4456911		Burner Switch & Harness Assembly		Appelez-nous	-
10	W10491984		Seal, Switch   (Replaces: 3192439)				$ 10.33
11	WP9759091		Regulator, Pressure   (Replaces: 4455157)			Immediately	$ 291.80
12	4457093		Burner Box		Appelez-nous	-
13	8284795		Bracket, Grill Valve		Appelez-nous	-
14	8284858		Valve, Grill				$ 191.46
15	8285606		Side, Burner Box (left Hand)		Appelez-nous	-
15	8285607		Side, Burner Box (right Hand)		Appelez-nous	-
16	8285358		Support, Rear		Appelez-nous	-
17	WP488130		Nut, Hex   (Replaces: 488130)				$ 6.27
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	WP4456816		Valve, Burner Auxillary   (Replaces: 4456816)			Immediately	$ 286.55
21	8284680		Cover, Shelf		Appelez-nous	-
22	8284722		Bushing, Cover Shelf		Appelez-nous	-
23	4449845		Bracket-support		Appelez-nous	-
24	8285361		Cover, Panel		Appelez-nous	-
25	8285031		Box, Burner Lower		Appelez-nous	-
26	8284960		Guard, Rear Spill		Appelez-nous	-
27	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
28	8284790		Tube, Grill		Appelez-nous	-
29	8284922		Valve, Gas Grill		Appelez-nous	-
30	8284796		Plug, Manifold		Appelez-nous	-
32	8284787		Module, Grill Grill		Appelez-nous	-
33	8284968		Bracket, Ignitor		Appelez-nous	-
34	8284941		Ignitor, Grill				$ 98.51
35	3400855		Screw		Appelez-nous	-
36	8285052		Log Burner, Grill		Appelez-nous	-
37	8284900		Deflector		Appelez-nous	-
38	8284791		Tray, Drip		Appelez-nous	-
38	N/A		Parts Not Illustrated		Appelez-nous	-
39	N/A		Miscellaneous		Appelez-nous	-
39	1129449		Bushing		Appelez-nous	-
39	4456628		Harness, Wire Jumper				$ 95.35
39	4456909		Harness, Grille Switch		Appelez-nous	-
39	8284782		L.p. Orifice Spud		Appelez-nous	-
39	8284663		L.p. Orifice Spud		Appelez-nous	-
39	8285030		Guard, Spill		Appelez-nous	-
39	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25
39	4456627		Harness, Wire				$ 189.13
39	4173634		Bushing, Electric				$ 5.83
