01 - Cooktop, Burner, And Grate Parts

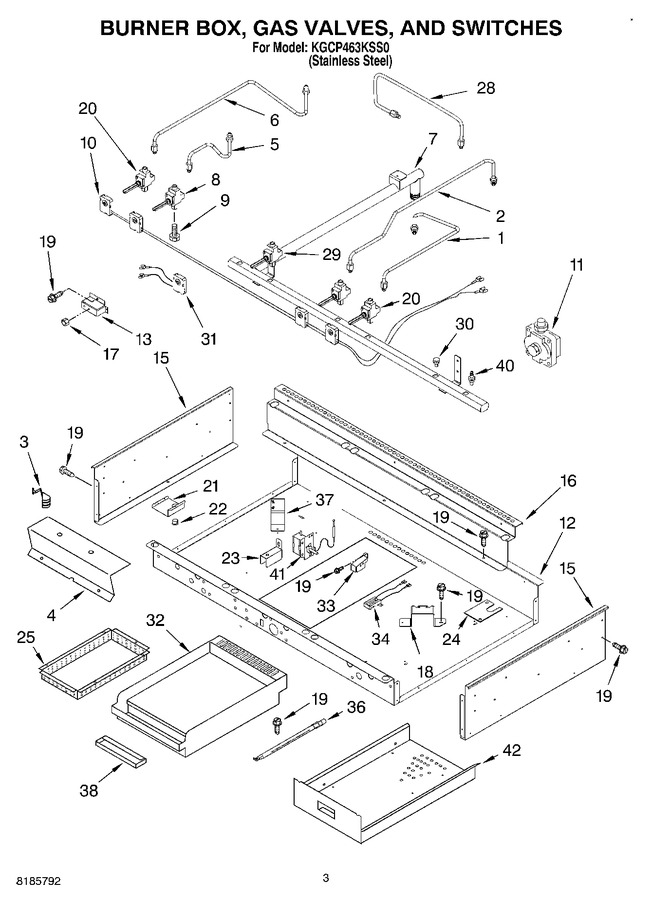

02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455040		Tubing, Gas Burner - Rf		Appelez-nous	-
2	4455041		Tubing, Gas Burner - Rr		Appelez-nous	-
3	98005642		Clip, Bulb   (Replaces: 313382)			Immediately	$ 74.64
4	8284811		Bracket		Appelez-nous	-
5	4455153		Tubing, Gas Burner - Lf		Appelez-nous	-
6	4455154		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8284749		Manifold (includes Items No.9 & No.30)		Appelez-nous	-
8	3192157		Valve, Burner (turbo)		Appelez-nous	-
9	3185829		Bolt, Valve		Appelez-nous	-
10	8284779		Burner Switch & Harness Assembly		Appelez-nous	-
10	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
11	WP9759091		Regulator, Pressure   (Replaces: 4455157)			Immediately	$ 291.80
12	8284970		Burner Box		Appelez-nous	-
13	8284805		Bracket, Griddle Valve		Appelez-nous	-
15	8284678		Side, Burner Box (left Hand)		Appelez-nous	-
15	8284677		Side, Burner Box (right Hand)		Appelez-nous	-
16	8284946		Support, Rear		Appelez-nous	-
17	WP488130		Nut, Hex   (Replaces: 488130)				$ 6.27
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	3191292		Valve, Burner Auxillary				$ 120.40
21	8284680		Cover, Shelf		Appelez-nous	-
22	8284722		Bushing, Cover Shelf		Appelez-nous	-
23	4449845		Bracket-support		Appelez-nous	-
24	4455139		Cover, Panel		Appelez-nous	-
25	8284854		Box, Burner Lower		Appelez-nous	-
28	8284975		Tube, Griddle		Appelez-nous	-
29	8284788		Valve, Griddle				$ 183.21
30	8284796		Plug, Manifold (closed)		Appelez-nous	-
31	8284779		Harness, Switch Griddle		Appelez-nous	-
32	8284759		Module, Griddle		Appelez-nous	-
33	8284800		Bracket, Ignitor		Appelez-nous	-
34	8284941		Ignitor, Grill				$ 98.51
36	8284991		Log Burner, Griddle		Appelez-nous	-
36	WP3400805		Screw   (Replaces: 3400805)				$ 6.47
37	8284993		Bracket, Thermo		Appelez-nous	-
38	8284763		Tray, Drip		Appelez-nous	-
40	8284804		Plug, Manifold (open)		Appelez-nous	-
41	8284765		Griddle, Thermo				$ 255.18
42	8284782		L.p. Orifice Spud Pack		Appelez-nous	-
42	8284847		Harness, Wire Jumper		Appelez-nous	-
42	8284849		Harrness, Wire Jumper (white)		Appelez-nous	-
42	8284772		Harness, Wire Ignitor		Appelez-nous	-
42	8284976		Harness, Wire Jumper (yellow)		Appelez-nous	-
42	8284848		Harness, Wire Jumper (black)		Appelez-nous	-
42	8284992		Enclosure, Griddle		Appelez-nous	-
42	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25
42	1129449		Bushing		Appelez-nous	-
42	4173634		Bushing, Electric				$ 5.83
