01 - Cooktop, Burner And Grate Parts

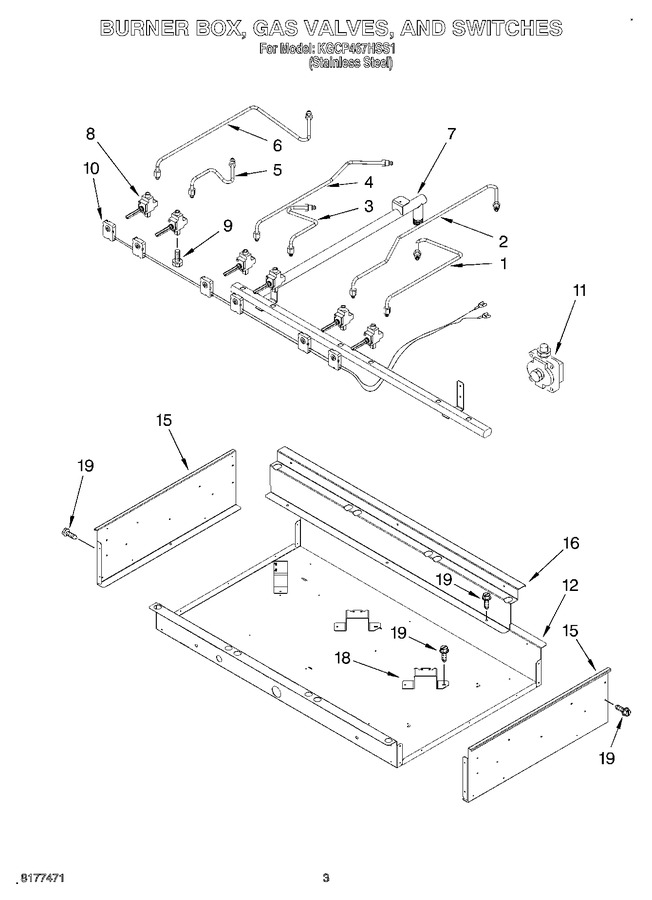

02 - Burner Box, Gas Valves, Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4455040 | Tubing, Gas Burner - Rf |
|
- | |||||
| 2 | 4455041 | Tubing, Gas Burner - Rr |
|
- | |||||
| 3 | 4455151 | Tubing, Gas Burner - Cf |
|
- | |||||
| 4 | 4455152 | Tubing, Gas Burner - Cr |
|
- | |||||
| 5 | 4455153 | Tubing, Gas Burner - Lf |
|
- | |||||
| 6 | 4455154 | Tubing, Gas Burner - Lr |
|
- | |||||
| 7 | 4454966 | Manifold |
|
- | |||||
| 8 | 3192157 | Valve, Burner |
|
- | |||||
| 9 | 307630 | Bolt, Valve |
|
- | |||||
| 10 | 4455155 | Burner Switch & Harness Assembly |
|
- | |||||
| 10 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 82.61 | |||||
| 11 | WP9759091 | Regulator, Pressure (Replaces: 4455157) |
|
Immediately | $ 291.80 | ||||
| 12 | 4454952 | Burner Box |
|
- | |||||
| 15 | 4454954 | Side, Burner Box (left Side) |
|
- | |||||
| 15 | 4454953 | Side, Burner Box (right Side) |
|
- | |||||
| 16 | 4455026 | Support, Rear |
|
- | |||||
| 18 | 3192811 | Bracket, Burner |
|
- | |||||
| 19 | 4455353 | L.p. Orifice Spud Pack |
|
- | |||||
| 19 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 19 | W10392007 | Power Cord (Replaces: 3192231) |
|
$ 96.25 | |||||
| 19 | 1129449 | Bushing |
|
- | |||||
| 19 | 3191418 | Harness, Wire Jumper |
|
- | |||||
| 19 | 3192230 | Harness, Wire Ignitor |
|
- |
