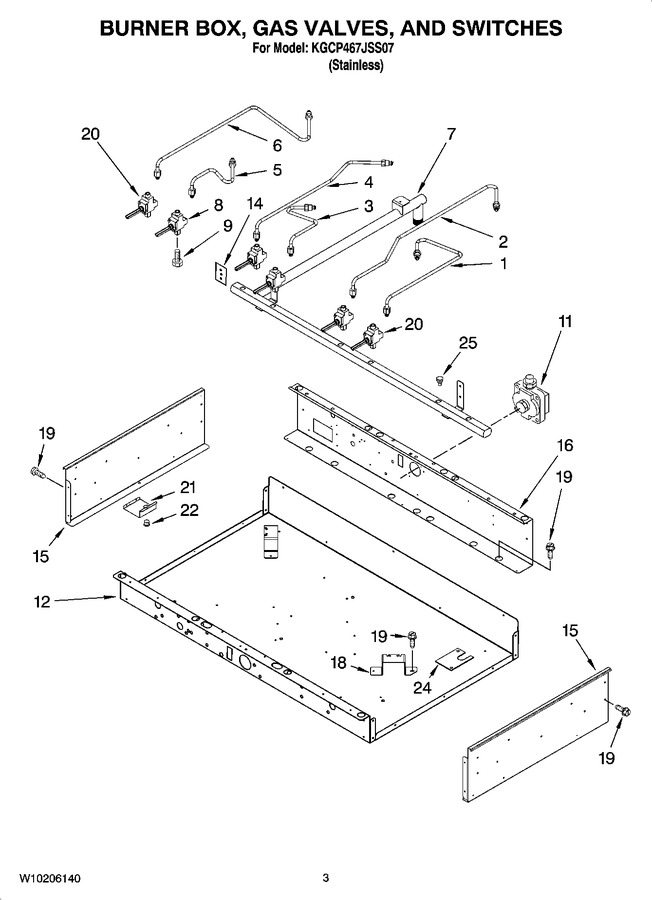

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves, And Switches, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455040		Tubing, Gas Burner - Rf		Appelez-nous	-
2	4455041		Tubing, Gas Burner - Rr		Appelez-nous	-
3	4455151		Tubing, Gas Burner - Cf		Appelez-nous	-
4	4455152		Tubing, Gas Burner - Cr		Appelez-nous	-
5	4455153		Tubing, Gas Burner - Lf		Appelez-nous	-
6	4455154		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8284749		Manifold		Appelez-nous	-
8	4456818		Valve, Burner (turbo)				$ 231.30
9	8523704		Bolt, Valve		Appelez-nous	-
11	WP9759091		Regulator, Pressure   (Replaces: 9759091)			Immediately	$ 291.80
12	4457094		Burner Box		Appelez-nous	-
14	W10491984		Seal, Switch   (Replaces: 3192439)				$ 10.33
15	8285607		Side, Burner Box (right)		Appelez-nous	-
15	8285606		Side, Burner Box (left)		Appelez-nous	-
16	9759136		Support, Rear		Appelez-nous	-
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
20	WP4456816		Valve, Burner Auxillary   (Replaces: 4456816)			Immediately	$ 286.55
21	8284680		Cover, Shelf		Appelez-nous	-
22	8284722		Bushing, Cover Shelf		Appelez-nous	-
24	8285361		Cover, Panel		Appelez-nous	-
25	8284796		Plug, Manifold		Appelez-nous	-
	W10392007		Power Cord   (Replaces: 9763116)				$ 96.25
	8285591		L.p. Orifice Spud Pack		Appelez-nous	-
	4456627		Harness, Wire (ignitor 28``)				$ 189.13
	4456628		Harness, Wire (ignitor 42``)				$ 95.35
	4456910		Harness, Switch				$ 127.22
	1129449		Bushing		Appelez-nous	-
