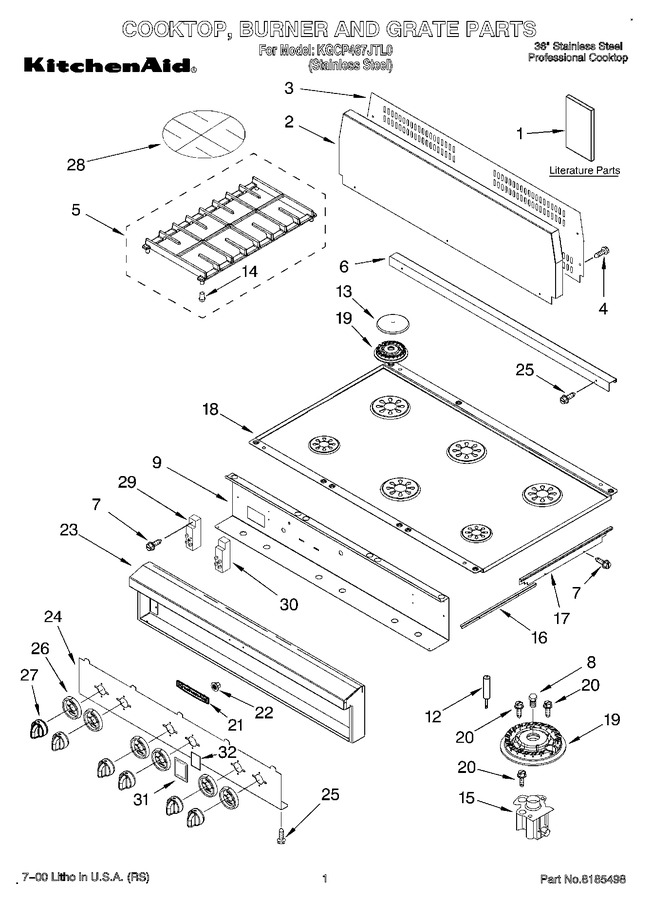

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4455062 | Literature Parts (instructions, Island Trim) |
|
- | |||||
| 1 | LIT8284671 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT8284642 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8284670 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8284674 | Literature Parts (instructions, Lp Conversion) |
|
- | |||||
| 2 | 4454960 | Backsplash |
|
- | |||||
| 3 | 8284712 | Support, Backsplash |
|
- | |||||
| 4 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 5 | 4454963 | Grate, Burner |
|
- | |||||
| 6 | 4454962 | Trim, Island |
|
- | |||||
| 7 | WP3177991 | Screw, 8-18 X 1/4 (Replaces: 3177991) |
|
Immediately | $ 6.47 | ||||
| 8 | 3192528 | Orifice, Burner (auxillary (2)) |
|
- | |||||
| 8 | 3192525 | Orifice, Burner (turbo (4)) |
|
$ 38.58 | |||||
| 9 | 8284766 | Support, Control Panel |
|
- | |||||
| 12 | WP9754215 | Ignitor, Burner (Replaces: 9754215) |
|
Immediately | $ 47.11 | ||||
| 13 | 4455243 | Cap, Burner |
|
$ 41.37 | |||||
| 14 | 814323 | Pad, Grate (4) (Replaces: 3186678) |
|
Immediately | $ 10.28 | ||||
| 15 | 9754182 | Holder, Orifice Includes Orifice (auxillary (2)) |
|
- | |||||
| 15 | 9754188 | Holder, Orifice Includes Orifice (turbo (4)) |
|
$ 48.21 | |||||
| 16 | 4454974 | Support Rail (r.h.& L.h.) |
|
- | |||||
| 17 | 4455029 | Trim, Side (left Hand) |
|
- | |||||
| 17 | 4454958 | Trim, Side (right Hand) |
|
- | |||||
| 18 | 8284664 | Cooktop, Black |
|
- | |||||
| 19 | 8273216 | Burner Head 14k (auxillary (2)) |
|
- | |||||
| 19 | 9754181 | Burner Head 14k (turbo (4)) |
|
- | |||||
| 20 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3368921) |
|
Immediately | $ 6.42 | ||||
| 21 | 2005292 | Nameplate |
|
$ 52.20 | |||||
| 22 | WP2004333 | Palnut (Replaces: 2004333) |
|
$ 9.63 | |||||
| 23 | 4455217 | Control Frame |
|
- | |||||
| 24 | 8284638 | Panel, Control |
|
- | |||||
| 25 | W11233072 | Screw, 8-18 X 1/2 (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 26 | 4455192 | Bezel, Knob |
|
- | |||||
| 27 | WPW10078400 | Knob, Burner (Replaces: 4454970) |
|
$ 6.26 | |||||
| 28 | 4455109 | Plate, Simmer |
|
$ 52.31 | |||||
| 29 | WP8053421 | Module, Spark 4-burner (Replaces: 8053421) |
|
Immediately | $ 166.02 | ||||
| 30 | 8053420 | Module, Spark 2-burner |
|
- | |||||
| 31 | 8284641 | Bezel, Tile |
|
- | |||||
| 32 | 8284639 | Spacer, Tile |
|
- |
