SELECT A DIAGRAM

01 - Cooktop, Burner And Grate Parts

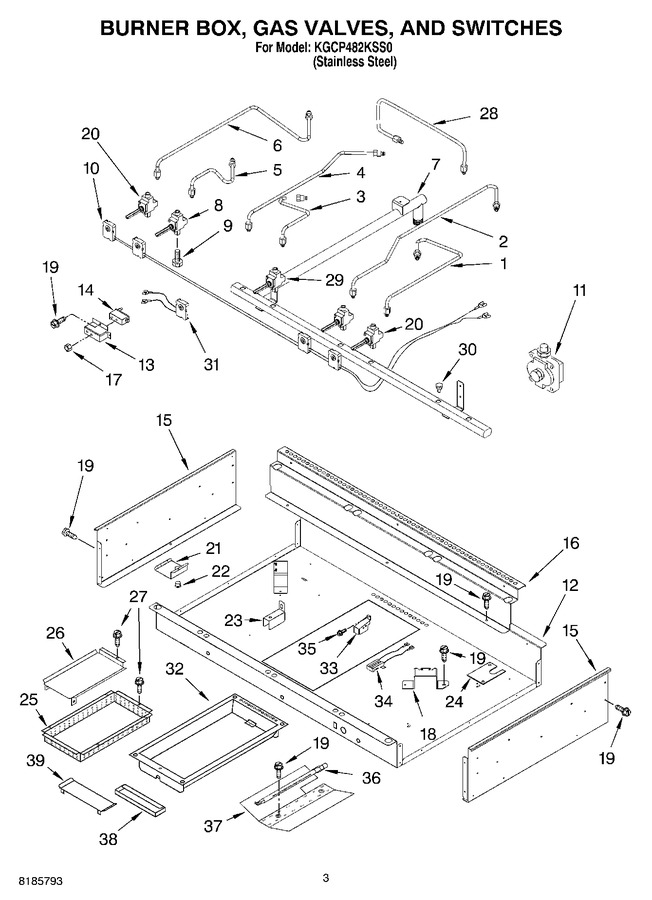

02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4455040		Tubing, Gas Burner - Rf		Appelez-nous	-
2	4455041		Tubing, Gas Burner - Rr		Appelez-nous	-
3	4455151		Tubing, Gas Burner - Cf		Appelez-nous	-
4	4455152		Tubing, Gas		Appelez-nous	-
5	4455153		Tubing, Gas Burner - Cr Burner - Lf		Appelez-nous	-
6	4455154		Tubing, Gas Burner - Lr		Appelez-nous	-
7	8284737		Manifold (includes Items No.9 & No.30)		Appelez-nous	-
8	3192157		Valve, Burner (turbo)		Appelez-nous	-
9	3185829		Bolt, Valve		Appelez-nous	-
10	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
10	8284815		Burner Switch & Harness Assembly		Appelez-nous	-
11	WP9759091		Regulator, Pressure   (Replaces: 4455157)			Immediately	$ 291.80
12	8284971		Burner Box		Appelez-nous	-
13	8284795		Bracket, Grill Valve		Appelez-nous	-
14	8284858		Valve, Grill				$ 191.46
15	8284736		Side, Burner Box (left Hand)		Appelez-nous	-
15	8284735		Side, Burner Box (right Hand)		Appelez-nous	-
16	8284947		Support, Rear		Appelez-nous	-
17	WP488130		Nut, Hex   (Replaces: 488130)				$ 6.27
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	3191292		Valve, Burner Auxillary				$ 120.40
21	8284680		Cover, Shelf		Appelez-nous	-
22	8284722		Bushing, Cover Shelf		Appelez-nous	-
23	4449845		Bracket-support		Appelez-nous	-
24	4455139		Cover, Panel		Appelez-nous	-
25	8284854		Box, Burner Lower		Appelez-nous	-
26	8284960		Guard, Rear Spill		Appelez-nous	-
27	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
28	8284790		Tube, Grill		Appelez-nous	-
29	8284922		Valve, Gas Grill		Appelez-nous	-
30	8284796		Plug, Manifold		Appelez-nous	-
31	8284974		Harness, Switch Grill		Appelez-nous	-
32	8284787		Module, Grill		Appelez-nous	-
33	8284968		Bracket, Ignitor		Appelez-nous	-
34	8284941		Ignitor, Grill				$ 98.51
35	3400855		Screw		Appelez-nous	-
36	8284764		Log Burner, Grill		Appelez-nous	-
37	8284900		Deflector		Appelez-nous	-
38	8284791		Tray, Drip		Appelez-nous	-
39	8284782		L.p. Orifice Spud Pack		Appelez-nous	-
39	8284847		Harness, Wire Jumper		Appelez-nous	-
39	3191418		Harness, Wire Jumper (6 Burner)		Appelez-nous	-
39	8284772		Harness, Wire Ignitor (brown)		Appelez-nous	-
39	8284976		Harness, Wire Jumper (yellow)		Appelez-nous	-
39	8284849		Harness, Wire Jumper (white)		Appelez-nous	-
39	8284848		Harness, Wire Jumper (black)		Appelez-nous	-
39	8284901		Guard, Spill		Appelez-nous	-
39	W10392007		Power Cord   (Replaces: 3192231)				$ 96.25
39	1129449		Bushing		Appelez-nous	-
39	4173634		Bushing, Electric				$ 5.83

    View Diagram in Separate Window       Print Part List
