01 - Cabinet


02 - Cabinet-rear

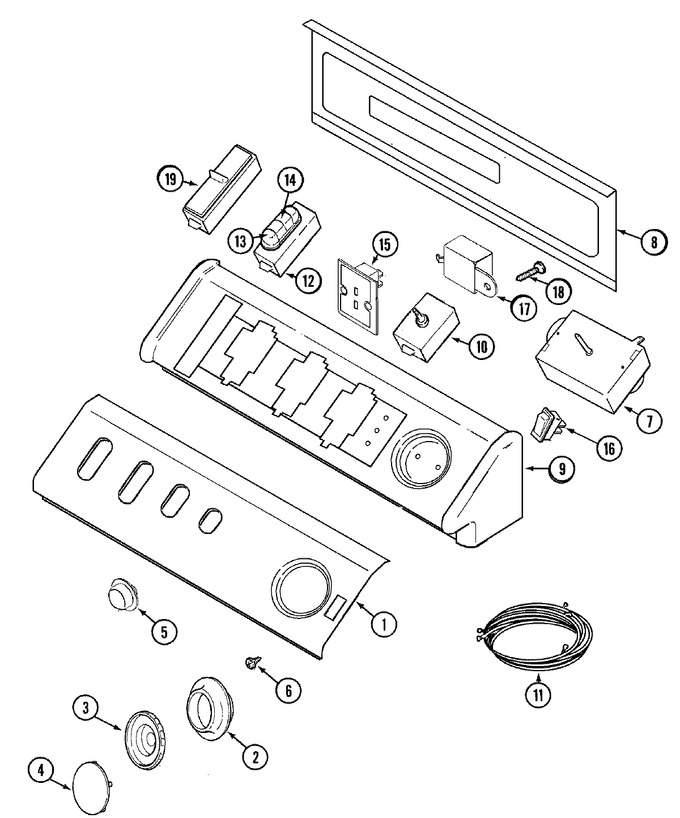

03 - Control Panel


04 - Door


05 - Gas Valve


06 - Motor Drive


07 - Tumbler


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33002330		Panel, Control	10	Appelez-nous	-
1	Y22002339		Screw	10	Appelez-nous	-
2	WP33001621		Skirt, Timer Dial (wht)   (Replaces: 33001621)	10		Immediately	$ 23.18
3	WP22001659		Timer Knob - Grey   (Replaces: 22001659)	10			$ 26.38
4	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
5	33001619		Button, Push To Start (wht)	10	Appelez-nous	-
6	WP90767		Screw, Timer   (Replaces: 33001690)	10		Immediately	$ 7.04
7	33002407		Timer	10	Appelez-nous	-
8	WP489128		Screw   (Replaces: 216423)	10			$ 9.79
8	22002529		Console Back Panel	10	Appelez-nous	-
9	33002286		Console (wht)	10	Appelez-nous	-
10	33001861		Switch, Push To Start (wht)	10	Appelez-nous	-
11	33002421		Wire Harness, Main	10	Appelez-nous	-
12	33002414		Switch, Option 4 Pos (wht)	10	Appelez-nous	-
13	22001788		Button, Switch (wht-end)	10	Appelez-nous	-
14	22001789		Button, Switch (wht-mdl)	10	Appelez-nous	-
15	33002389		Dryness Display Control (wht)	10			$ 81.10
16	22002720		Switch, Rocker	10	Appelez-nous	-
17	33002408		Buzzer, Low Volume	10	Appelez-nous	-
17	33001623		Buzzer, Non-adjustable	10			$ 55.84
18	WP489128		Screw   (Replaces: 216423)	10			$ 9.79
19	33001656		Switch, Temp (elec)(wht)	10			$ 122.64
20	WP22001948		Lens, Indicator Light   (Replaces: 22001948)	10			$ 11.42
20	22001403		Light, Indicator (250v)	10	Appelez-nous	-
21	33002411		Manual, Use & Care	10	Appelez-nous	-
21	33002555		Manual, Use & Care (frch)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
